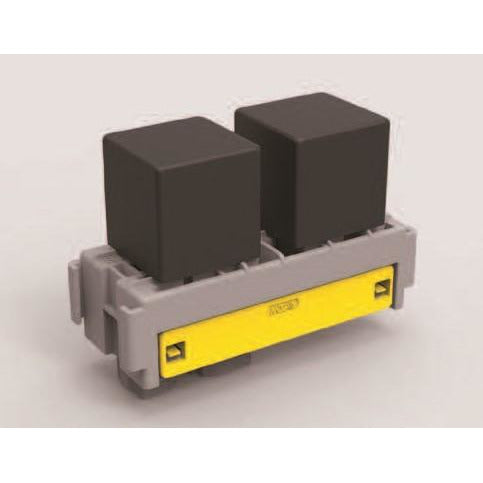

MTA 0301494 Mini/Maxi Relay Gray Module

by MTA
Original price $5.75 - Original price $5.75
Original price
$5.75
$5.75 - $5.75
Current price $5.75

MTA offers 15 different modules and a variety of frames, covers, and brackets to build a wide range of flexible modular solutions for holding fuses, relays, and diodes. All of the modules are designed with secondary locks to guarantee maximum safety and high performance. They are built to resist stress and provide reliable technology.

Product Type:  Modular Power Distribution Unit
Minimum Order Qty:  1 piece
Brand: MTA
Part Number 0301494
Number of cavities: 9
Design Layout:  1 ISO  Mini-Relays + 1 ISO Power/Maxi Relay
Product Family: Gray Modules
Sealed/Unsealed: Unsealed
Gender: Female
Color: Gray
Compliance:  RoHS, REACH

Reference PN:

Part Number:   0101494 Aftermarket kit

Associated Components:

The following components used with this connection system and are sold separately

DESCRIPTION MTA PN
Secondary Lock, Yellow (1 reqd lock per module) 0301496
6.3 mm Terminal  0.35 - 0.75 mm² (22-20 AWG) 1708500-L
6.3 mm Terminal  0.75 - 1.5 mm² (18-16 AWG) 1708501-L
6.3 mm Terminal  2.0 - 3.0 mm² (14-12 AWG) 1708502-L
6.3 mm Terminal  4.0 - 6.0 mm² (10 AWG) 1708503-L
9.5 mm Terminal  2.5 - 4.0 mm² (12 AWG) 1707740-L
9.5 mm Terminal 6.0 - 8.0 mm² (10-8 AWG) 1707741-L
9.5 mm Terminal 10.0 - 16.0 mm² (6 AWG) 1707442-L
Mounting Bracket for Single Module  0301580
Mounting Bracket for Two modules 0300699
Mounting Bracket, extended height  0301180
Mounting Bracket,  end-to-end 0301620
Mounting Frame for 4 - module Flush Mount  0301520
Mounting Frame for 5 modules 0301450
Mounting Frame for 5 modules 0301706
Mounting Frame for 12 modules, Upright Mount 0301682
Mounting Frame for 12 modules, Flush Mount 0301680
Mounting Frame for 12 modules, Flush Mount 0301681
Cover for a single module 0301590
Cover for two adjacent modules 0301550
Cover for 4-way frame 0301530
Cover for 5-way frame 0301540

Relay Options:

The following relays used with this module are sold separately.

Part Number Description
MAH-S-112-A-1 Sealed 40A ISO Mini Relay, SPST
MAH-S-112-A-1R Sealed 40A ISO Mini Relay, SPST with resistor suppression
MAH-S-112-A-1D1 Sealed 40A ISO Mini Relay, SPST with diode suppression
MAH-S-112-A-1D2 Sealed 40A ISO Mini Relay, SPST with diode suppression
MAH-S-112-C-1 Sealed 60A ISO Mini Relay, SPDT
MAH-S-112-C-1R Sealed 60A ISO Mini Relay, SPDT with resistor suppression
MAH-S-112-C-1D1 Sealed 60A ISO Mini Relay, SPDT with diode suppression
MAH-S-112-C-1D2 Sealed 60A ISO Mini Relay, SPDT with diode suppression
We have 80 in stock. Volume Pricing Available
