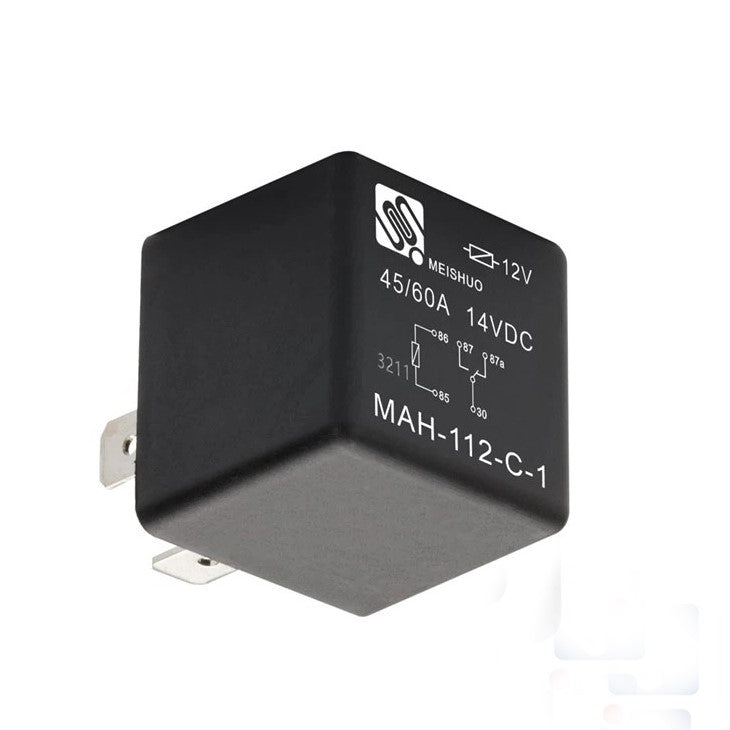

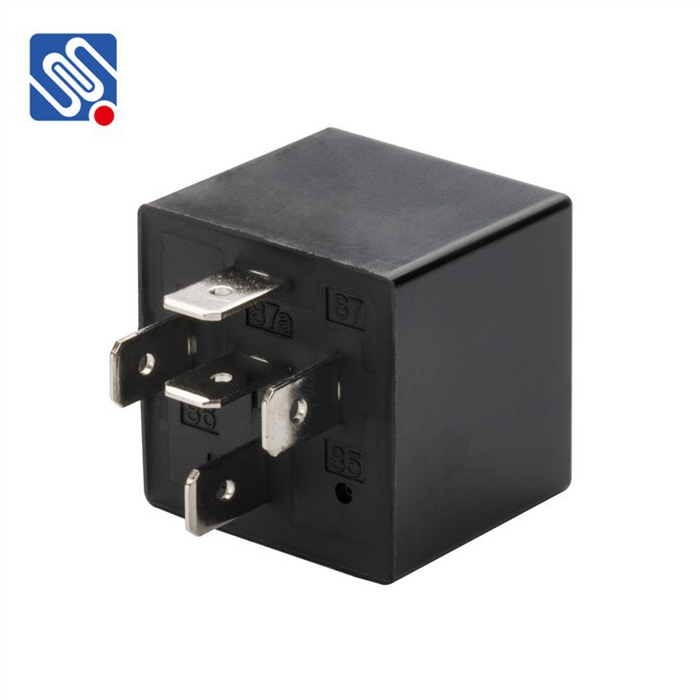

MAH-S-112-C-1D1 ISO Mini Relay 60A, 12Vdc, SPDT with Diode Suppression Drop in for Song Chuan 896H-1CH-S-001-U06-12VDC
by MEISHUO
Original price
$2.62
-
Original price
$2.62
Original price
$2.62
$2.62
-
$2.62
Current price
$2.62
The MAH-S-112-C-1D1 is a 60 amp ISO micro-relay widely used to control automobile lamps, rear-window defrosters, air-conditioners, open circuits, fuel pumps, cooling fans, on-off control, etc.
MET MAH-S-112-C-1D1 Relay Details:
| Product Type: | ISO Mini-Relay Form 1C |
| Minimum Order Qty: | 1 piece |
| Brand: | Meishuo Electric Technology |
| Part Number | MAH-S-112-C-1D1 |
| Product Family: | Mini-Relay |
| Suppression Type: | Diode With Parallel Diode (anode connection pin # 86) |
| Max Switching Voltage: | 80Vdc |
| Max Continuous Current: | NO: 60A (23⁰C) |
| NC: 45A (23⁰C) | |
| Protection: | Sealed |
| Max Temp : | 125⁰C |
| Compliance: | RoHS, REACH |
| Datasheet: | MAH-S-112-C-1D1 |
Cross Reference PN:
| Part Number: | 896H-1CH-C-001-12VDC | Song Chuan |
| Part Number: | 896H-1CH-S-001-U06 12VDC | Song Chuan |
