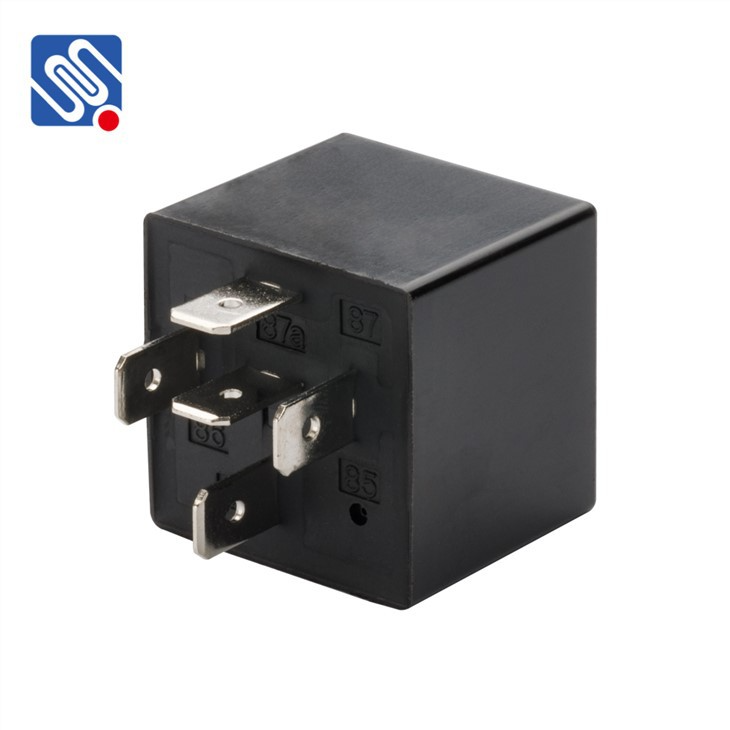

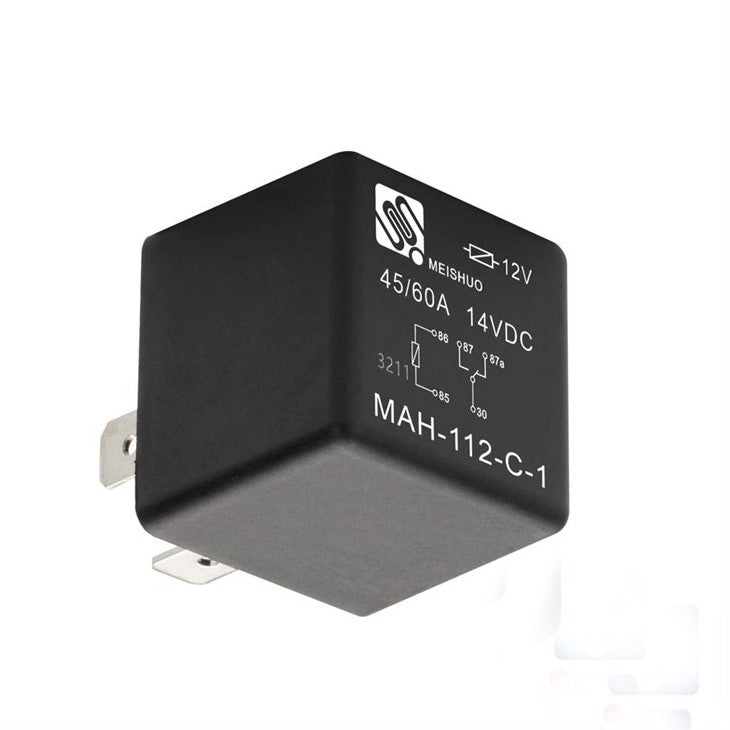

MAH-S-112-C-1D2 ISO Mini Relay 60A, 12Vdc, SPDT with Diode Suppression Drop in for Song Chuan 896H-1CH-C-002-12VDC
by MEISHUO
Original price
$3.27
-
Original price
$3.27
Original price
$3.27
$3.27
-
$3.27
Current price
$3.27
The MAH-S-112-C-1D2 is a 60 amp ISO micro-relay widely used to control automobile lamps, rear-window defrosters, air-conditioners, open circuits, fuel pumps, cooling fans, on-off control, etc.
MET MAH-S-112-C-1D2 Relay Details:
| Product Type: | ISO Mini-Relay Form 1C |
| Minimum Order Qty: | 1 piece |
| Brand: | Meishuo Electric Technology |
| Part Number | MAH-S-112-C-1D2 |
| Product Family: | Mini-Relay |
| Suppression Type: | Diode With Parallel Diode (anode connection pin # 85) |
| Max Switching Voltage: | 80Vdc |
| Max Continuous Current: | NO: 60A (23⁰C) |
| NC: 45A (23⁰C) | |
| Protection: | Sealed |
| Max Temp : | 125⁰C |
| Compliance: | RoHS, REACH |
| Datasheet: | MAH-S-112-C-1D2 |
Cross Reference PN:
| Part Number: | 896H-1CH-C-002-12VDC | Song Chuan |
