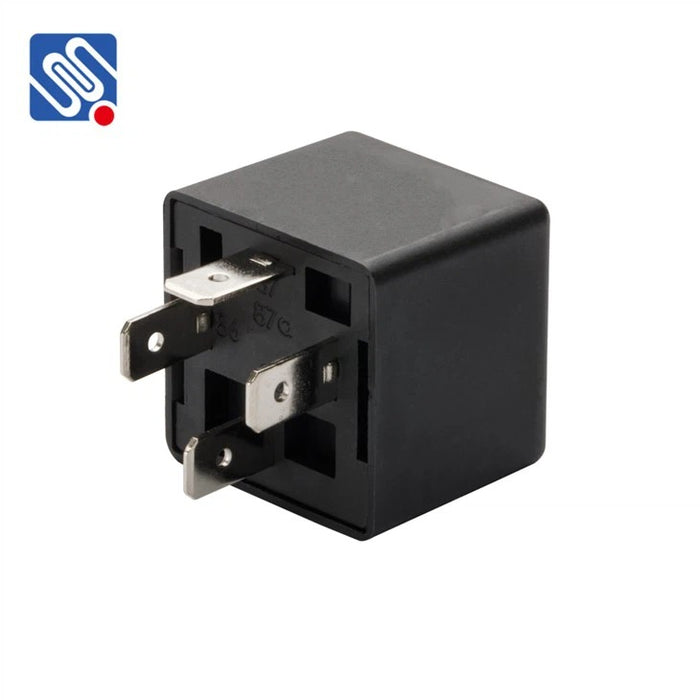

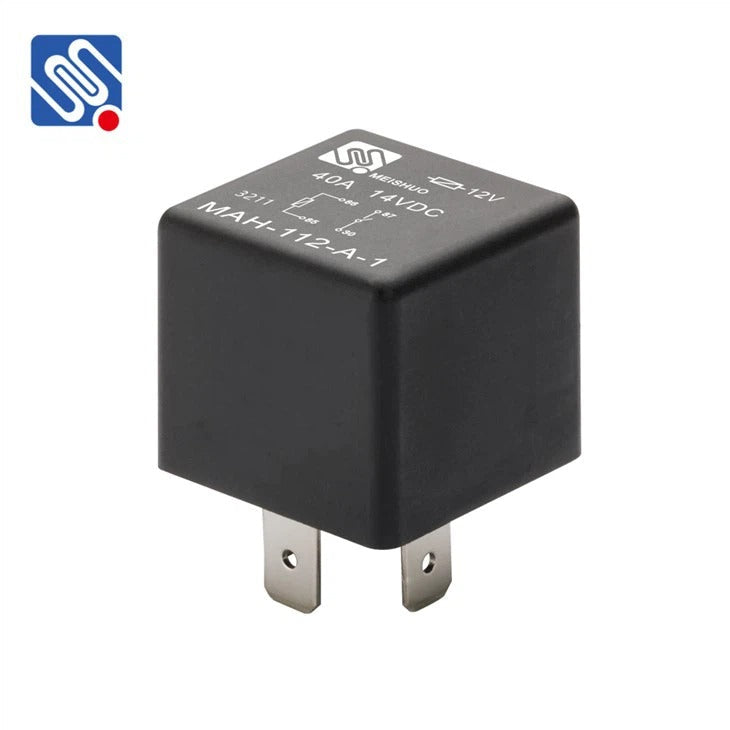

MET MAH-S-112-A-1 ISO Mini Relay 40A, 12Vdc, SPST Drop in for Song Chuan 896H-1AH-S-12VDC
by MEISHUO
Original price
$2.55
-
Original price
$2.55
Original price
$2.55
$2.55
-
$2.55
Current price
$2.55
The MAH-S-112-A-1 is a sealed 40 amp ISO micro-relay widely used to control automobile lamps, rear-window defrosters, air-conditioners, open circuits, fuel pumps, cooling fans, on-off control, etc.
MET MAH-S-112-A-1 Relay Details:
| Product Type: | ISO Mini-Relay Form 1A |
| Minimum Order Qty: | 1 piece |
| Brand: | Meishuo Electric Technology |
| Part Number | MAH-S-112-A-1 |
| Product Family: | Mini-Relay |
| Suppression Type: | No Suppression |
| Max Switching Voltage: | 80Vdc |
| Max Continuous Current: | NO:40A (23⁰C) |
| NC: 30A (23⁰C) | |
| Enclosure/Protection Type: | Sealed |
| Max Temp : | 125⁰C |
| Compliance: | RoHS, REACH |
| Datasheet: | MAH-S-112-C-1 |
Cross Reference PN:
| Part Number: | 896H-1AH-A-12VDC | Song Chuan |
| Part Number: | 896H-1AH-S-12VDC | Song Chuan |
