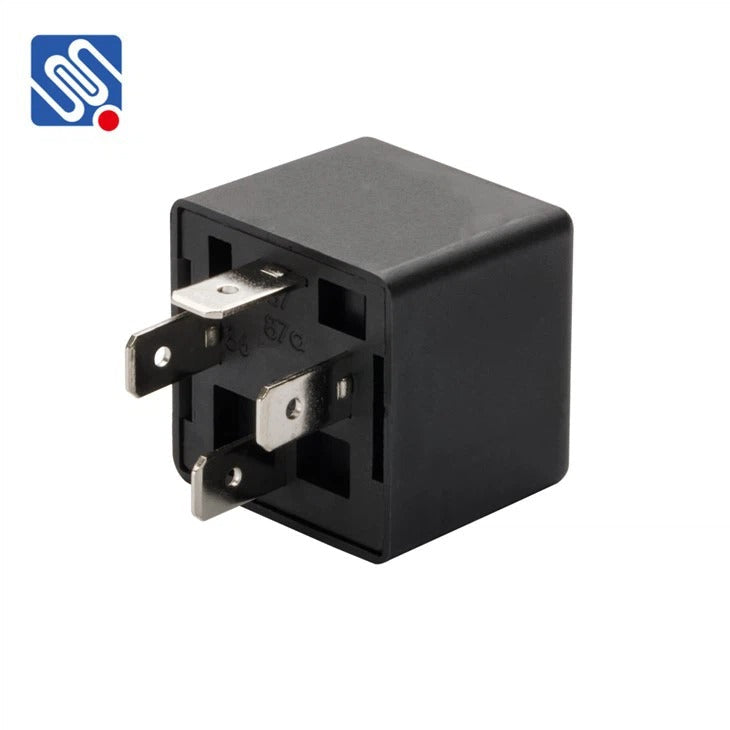

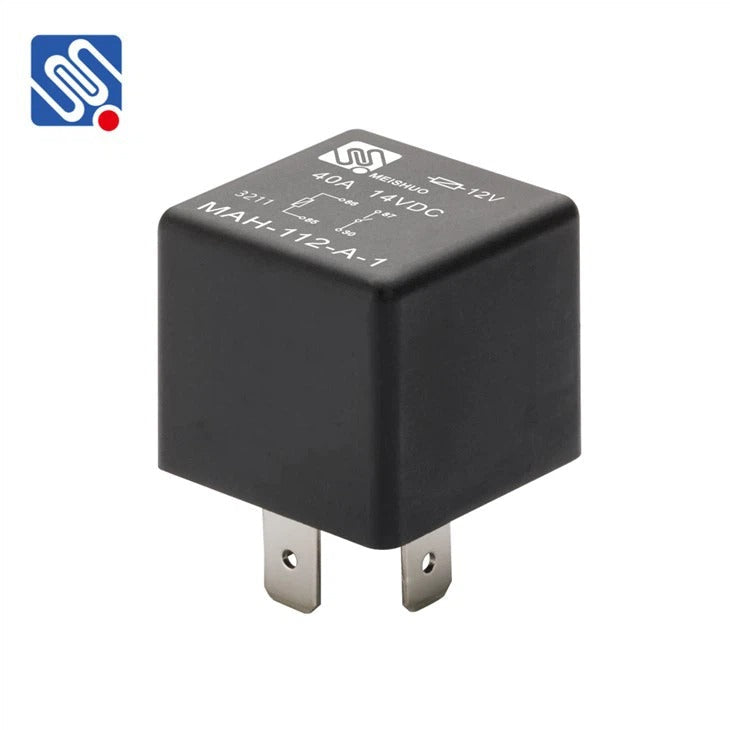

MAH-S-112-A-1D2 ISO Mini Relay 40A, 12Vdc, SPST with Diode Suppression

by MEISHUO
Original price $2.62 - Original price $2.62
Original price
$2.62
$2.62 - $2.62
Current price $2.62

The MAH-S-112-A-1D2 is a 40 amp ISO micro-relay widely used to control automobile lamps, rear-window defrosters, air-conditioners, open circuits, fuel pumps, cooling fans, on-off control, etc.

MET MAH-S-112-A-1D2 Relay Details:

Product Type:  ISO Mini-Relay Form 1A
Minimum Order Qty:  1 piece
Brand: Meishuo Electric Technology
Part Number MAH-S-112-A-1D2
Product Family: Mini-Relay
Suppression Type:  Diode With Parallel Diode (anode connection pin # 85)
Max Switching Voltage: 80Vdc
Max Continuous Current: NO: 40A (23⁰C)
NC:  30A (23⁰C)
Protection:  Sealed
Max Temp :  125⁰C
Compliance:  RoHS, REACH
Datasheet:  MAH-S-112-A-1D2

Cross Reference PN:

Part Number:   896H-1AH-C-002-12VDC Song Chuan
We have 99 in stock. Volume Pricing Available
