GEP PDM-R4B01 Sealed Power Distribution Module, (3) MINI ISO Relays
Original price
$15.30
-
Original price
$15.30
Original price
$15.30
$15.30
-
$15.30
Current price
$15.30

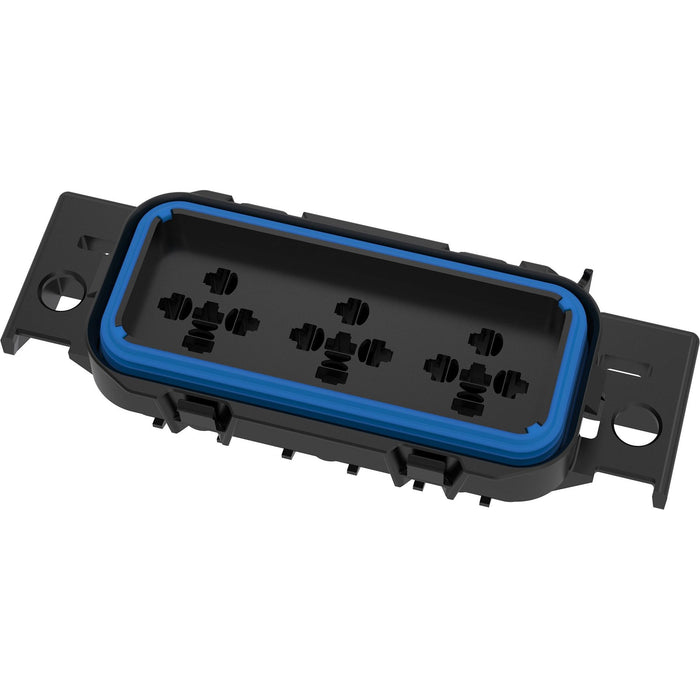

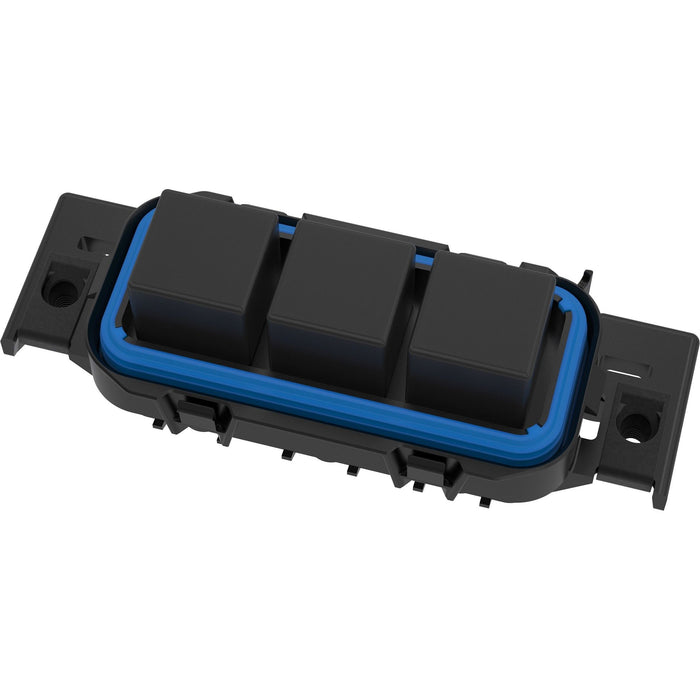

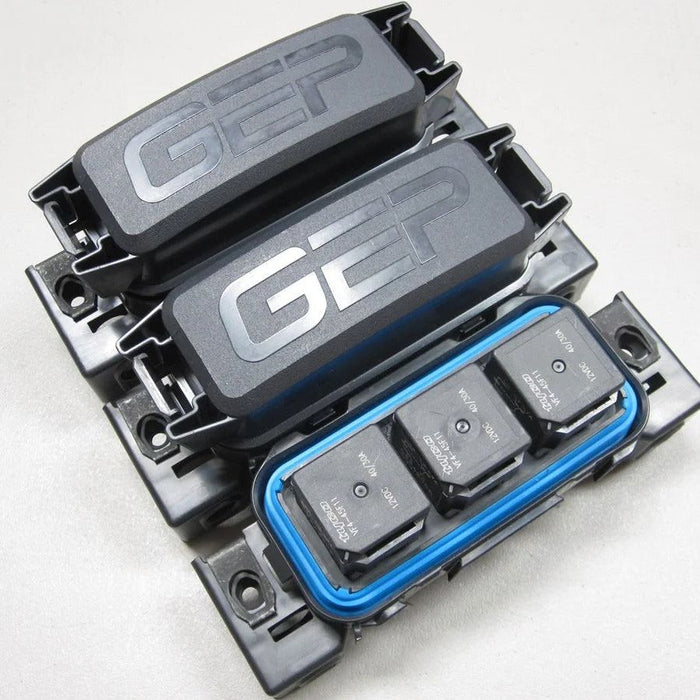

GEP Power Products PDM-R4B01 is a sealed, 15-cavity module that houses three Mini ISO Relays. These power distribution modules can be ganged or stacked to create a custom-sealed power distribution center.
GEP PDM-R4B01 Sealed Mini Relay PDM Details:
| Product Type: | Power distribution module with interface seal |
| Minimum Order Qty: | 1 piece |
| Part Number | PDM-R4B01 |
| Number of cavities: | 15 |
| Product Family: | Hybrid |
| Sealed/Unsealed: | Sealed IP67 |
| Relay Type: | Mini ISO Relay |
| Flammability | UL94 - V-0 |
| Max Voltage: | 58 volts |
| Color: | Black |
| Compliance: | RoHS, REACH |
| Product Drawing: | PDM-R_SERIES_SALES_REV3.pdf |
Assoc Components:
Associated components are sold separately
| Part Number | Description |
| PDM-TT2 | Secondary Lock (3 Required) |
| PDM-TC | Cover with GEP Logo |
| PDM-TCP | Cover, Plain without GEP Logo |
| PDM-SCT | Tether for attached cover to PDM |
| PDM-TMC | M6 PDM Mounting Clips (optional 2 required) |
Terminal & Seals
Associated terminals and seals are sold separately
Maxi ISO Relay Terminals and Seals
| Part Number | Description |
| CID400-6.3-FS1 | Terminal, 0.5 -0.8 mm², (18 - 20 AWG) Tin Plated |
| CID400-6.3-FS1 | Terminal, 1.0-2.0 mm², (16 - 14 AWG) Tin Plated |
| CID400-6.3-FS1 | Terminal, 3.0-5.0 mm², (12 -10 AWG) Tin Plated |
| CID4991 | Wire Seal, 1.6 - 2.15 mm wire insul. dia.., Yellow, Silicone |
| CID4803 | Wire Seal, 2.01 - 2.85 mm wire insul. dia., White, Silicone |
| CID4989 | Wire Seal, 2.81 - 3.76 mm wire insul. dia., Red, Silicone |
| CID4990 | Wire Seal, 3.61 - 4.50 mm wire insul. dia.., Purple, Silicone |
| CID4987 | Wire Seal, 4.40 - 5.16 mm wire insul. dia.., Orange, Silicone |
| CID6082 | Cavity Plug, Green, Silicone |
Maxi ISO Relays
The following relays used with this module are sold separately.
| Part Number | Description |
| MAH-S-112-A-1 | Sealed 40A ISO Mini Relay, SPST |
| MAH-S-112-A-1R | Sealed 40A ISO Mini Relay, SPST with resistor suppression |
| MAH-S-112-A-1D1 | Sealed 40A ISO Mini Relay, SPST with diode suppression |
| MAH-S-112-A-1D2 | Sealed 40A ISO Mini Relay, SPST with diode suppression |
| MAH-S-112-C-1 | Sealed 60A ISO Mini Relay, SPDT |
| MAH-S-112-C-1R | Sealed 60A ISO Mini Relay, SPDT with resistor suppression |
| MAH-S-112-C-1D1 | Sealed 60A ISO Mini Relay, SPDT with diode suppression |
| MAH-S-112-C-1D2 | Sealed 60A ISO Mini Relay, SPDT with diode suppression |
