MTA 4510801 Female C280 Sealed Connector, 2 way Black
by MTA
Original price
$1.13
-
Original price
$1.13
Original price
$1.13
$1.13
-
$1.13
Current price
$1.13
The C280 series of connectors from MTA are direct replacements for Bosch Kompact interface for Bosch sensors and other devices. The C280 connectors were designed to accept the Bosch BDK terminal used in the Bosch Kompact 3 connectors.
Specifications:
| Product Type: | Connector |
| Minimum Order Qty: | 1 piece |
| Brand: | MTA |
| Part Number | 4510801 |
| Number of cavities: | 2 |
| Product Family: | C280 |
| Sealed/Unsealed: | Sealed |
| Gender: | Female |
| Color: | Black |
| TPA Color: | Violet |
| Compliance: | RoHS, REACH |
| Direct Relpacement for: | Bosch Kompakt 1928403874 or 1928404166 |

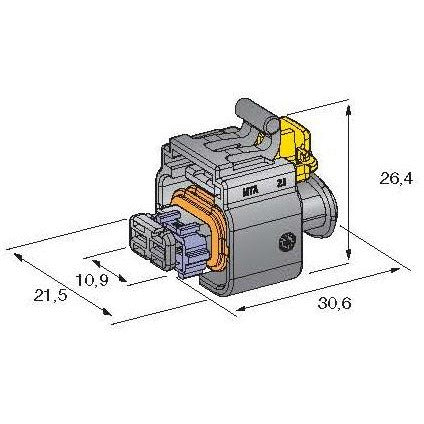

| Sales Drawing: | 4510801 Connector |
| Cap/Cover | 4510802 |
Associated Components:
The following components used with this connection system and are sold separately
| Terminal 0.5 - 1.0 mm² (20-18 AWG), Tin Plated | CID300-2.8-FS1 |
| Terminal 1.5 - 2.5 mm² (16-14 AWG), Tin Plated | CID300-2.8-FS2 |
| Wire Seal, 1.10 - 1.70 mm Wire Insul Diameter, White | CID1509 |
| Wire Seal, 2.20 - 3.0 mm Wire Insul Diameter, Blue | CID9004 |
