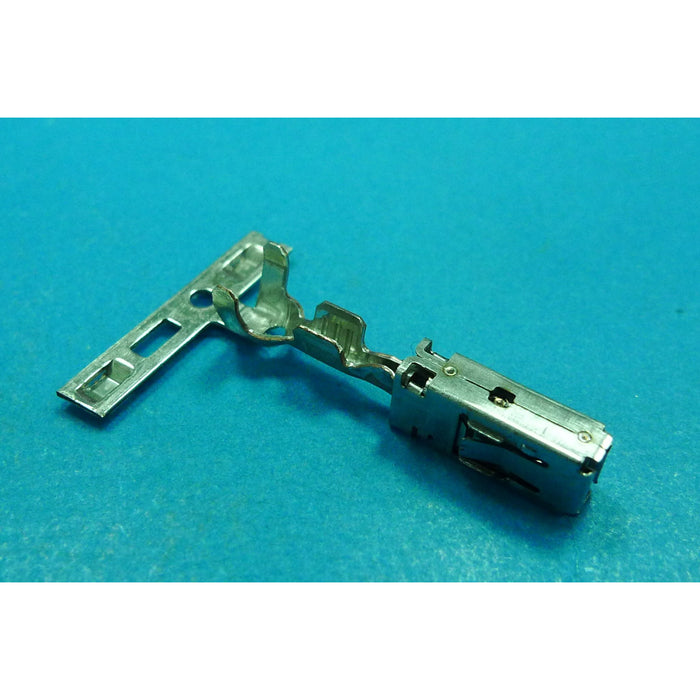

CID300-2.8-FS1-L Female Terminal, MCP 2.8 mm
Click or scroll to zoom
Tap or pinch to zoom
CID300-2.8-FS1-L Female Terminal, MCP 2.8 mm
CID300-2.8-FS1-L Female Terminal, MCP 2.8 mm

CID300-2.8-FS1-L Female Terminal, MCP 2.8 mm

by Connector ID
$0.54
We have 1893 in stock. Lead time: Contact Us
Description

Specifications

  • Product Type: Terminal, Loose Piece
  • Min Order Qty: 1 piece
  • Connector ID Part Number: CID300-2.8-FS1-L
  • Drop-in Replacement MFR PN: 1-968855-1
  • Product Family: MCP 2.8 mm
  • Wire Size Range: 0.50 - 1.0 mm²
  • Sealed/Unsealed: Sealed
  • Gender:  Female
  • Material: Copper Alloy
  • Plating: Tin

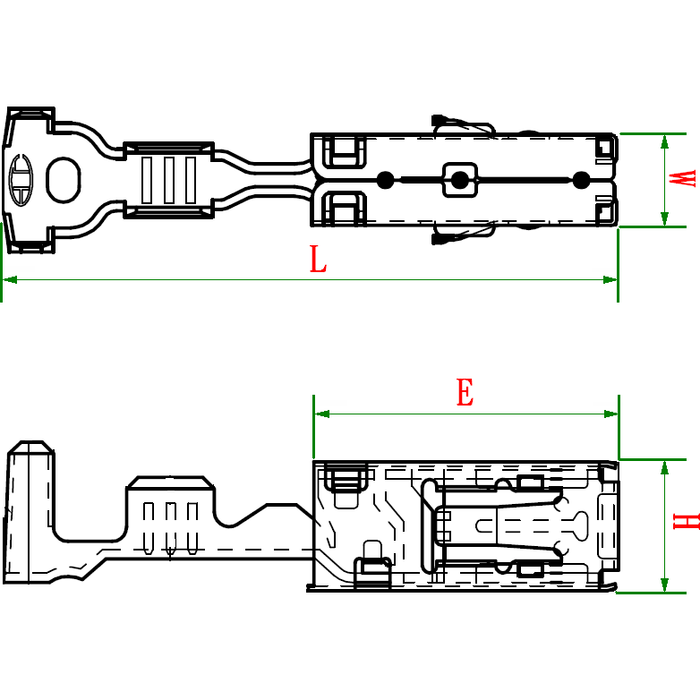

  • Dimensions: L: 21.0 mm / W: 3.1 mm /  H: 4.4 mm / E: 10.4 mm
  • Alternate Packaging: CID300-2.8-FS1 (Reel)

Associated Wire Seals

  • CID1509       Wire Seal, 1.1 - 1.7 mm Wire Insul. Dia., Silicone, Blue
  • CID9004         Wire Seal, 2.2 - 3.0 mm Wire Insul. Dia., Silicone,  White

Hand Crimp Tools

  • CID3305-HCT       Hand Crimp tool for core crimp
  • CID3306-HCT       Hand Crimp Tool for insulation/wire seal
