MTA 0301569 Sealed MiniVal/MaxiVal + Micro/Mini Relay Power Distribution Module

by MTA
Original price $20.29 - Original price $20.29
Original price
$20.29
$20.29 - $20.29
Current price $20.29

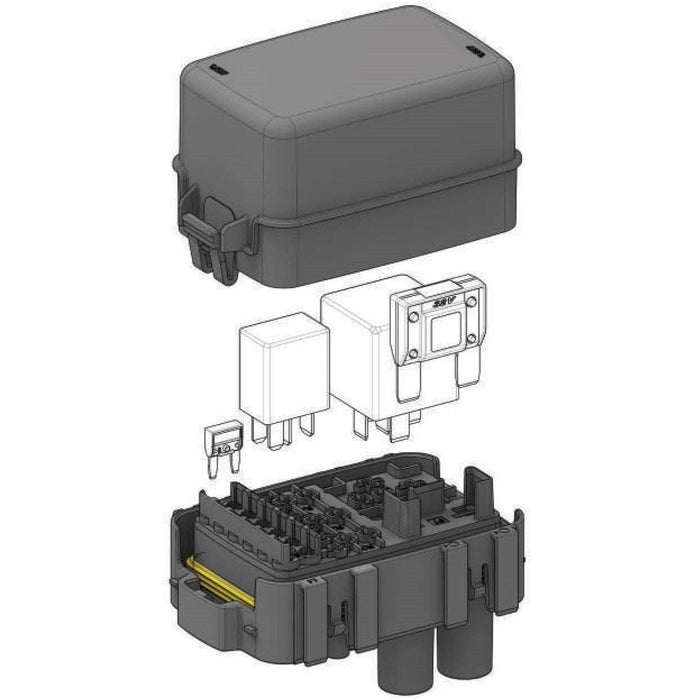

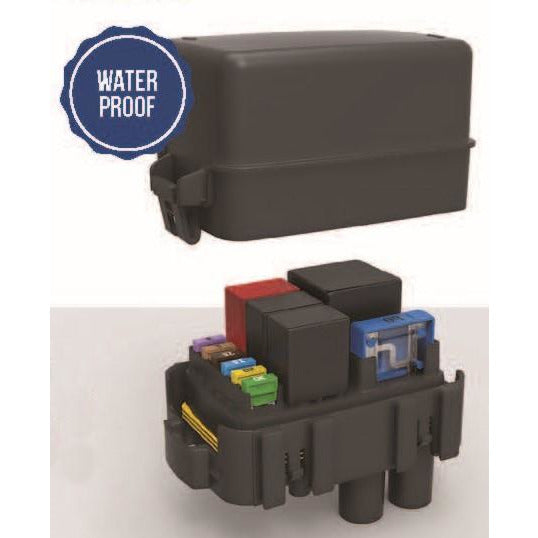

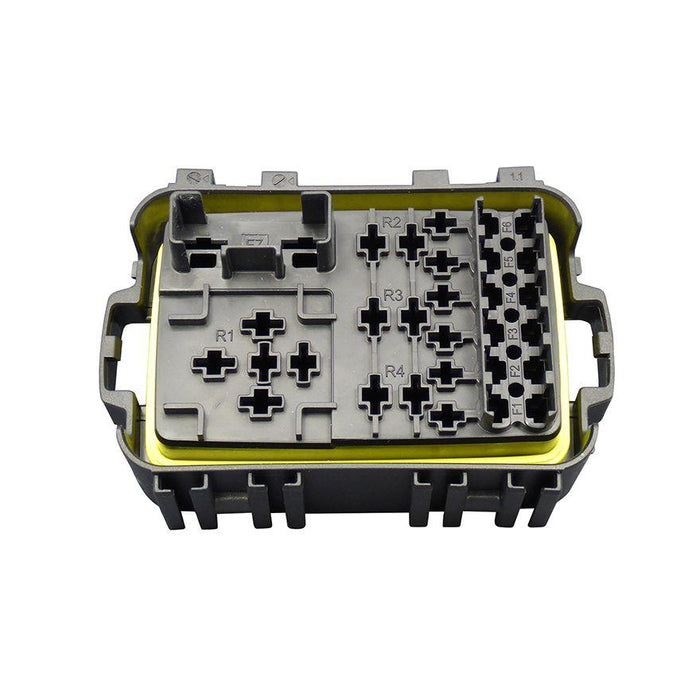

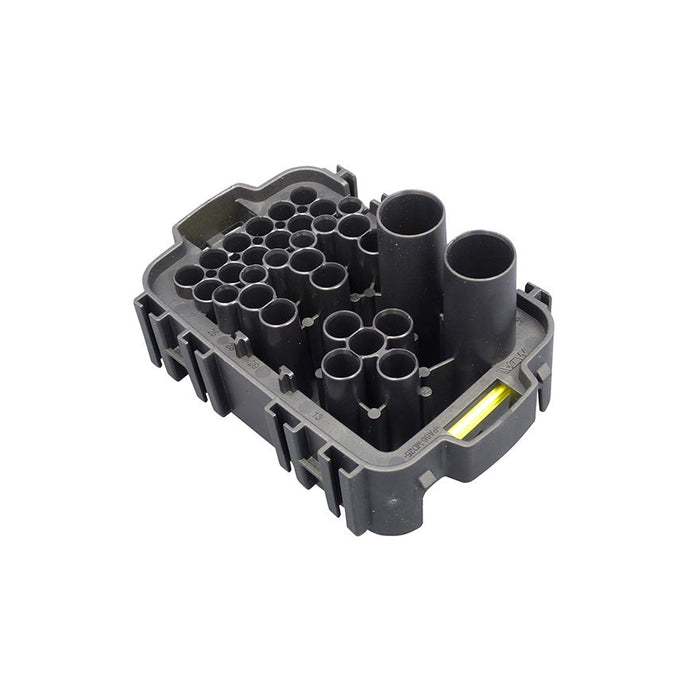

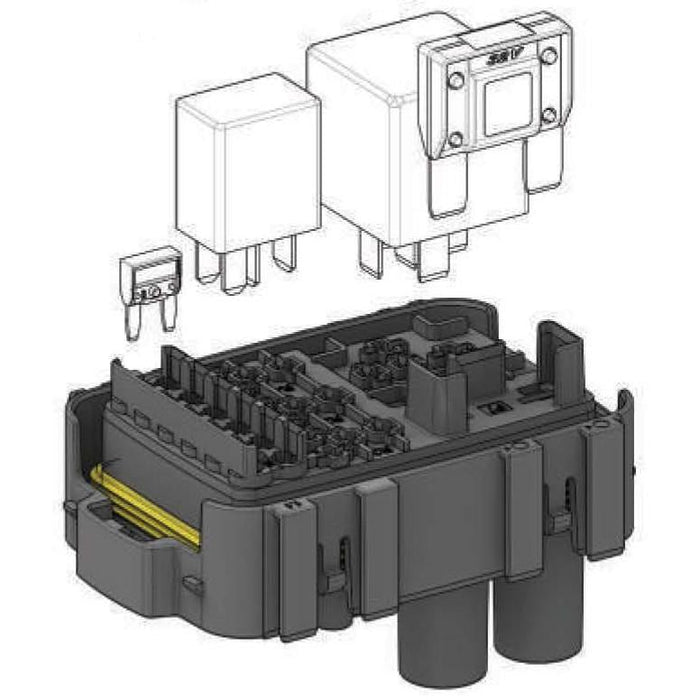

This waterproof power distribution module contains primary and secondary circuit protection. All of the waterproof modules from MTA have molded locking features that allow for multiple units to be ganged or connected together based on the amount and type of power distribution content required for the application.

MTA 0301569 Waterproof PDM Details:

Product Type:  Sealed Power Distribution Module
Minimum Order Qty:  1 piece
Brand: MTA
Part Number 0301569
Fuse Type & Quantity: 6 MiniVal Fuses + 1 MaxiVal Fuse
Relay Types & Quantity: 3 Micro Relays + 1 Maxi Relay
Sealed/Unsealed: Sealed
Color:  Black
Compliance:  RoHS, REACH

Reference PN:

Part Number:   0101569 Aftermarket packaging

Associated Components:

The following components used with this connection system and are sold separately

MTA PN  DESCRIPTION
0301371 Top Cover
0300691 Mounting Leg - Female (2 pcs reqd per module)
0300690 Mounting Leg - Male (2 pcs reqd per module)

Associated Terminals & Wire Seals:

MiniVal Cavities
MiniVal  Terminal, 2.8 mm, 0.35 -0.5 mm² (22-20 AWG) 1708337-L
MiniVal Terminal, 2.8 mm, 1.0 - 2.0 mm² ( 18-16 AWG) 1708338-L
MniVal Terminal, 2.8 mm, 2.5 - 4.0 mm² ( 14-12 AWG) 1708339-L
MiniVal Wire Seal, 2.8 mm,  Wire Insul Dia. 1.2 - 2.1 mm, Red 4550748
MiniVal Wire Seal, 2.8 mm,  Wire Insul Dia. 2.2 - 3.0 mm, Green 4550747
MiniVal Wire Seal, 2.8 mm,  Wire Insul Dia. 3.1 - 3.7 mm, Gray 4550749
MiniVal Cavity Plug, 2.8 mm, Black  4550750
MaxiVal Cavities
MaxiVal Terminal, Maxi 8.0 mm, 1.5 - 2.5 mm² ( 16 -14 AWG) 1707400
MaxiVal Terminal, Maxi 8.0 mm, 3.0 - 6.0 mm² ( 12 -10 AWG) 1707410
MaxiVal Terminal, Maxi 8.0 mm, 7.0 - 10.0 mm² ( 8 AWG) 1707420
MaxiVal Wire Seal, 8.0 mm. Wire Insul. Dia. 1.9 - 3.3 mm, Green 4550780
MaxiVal Wire Seal, 8.0 mm. Wire Insul. Dia. 3.4 - 4.9 mm, Blue 4550781
MaxiVal Wire Seal, 8.0 mm. Wire Insul. Dia. 5.0 - 6.5 mm, Red 4550782
MaxiVal Cavity Plug, Maxi 8.0 mm, Natural 4550784
Micro-Relay Cavities
Mic-Relay Coil Terminal, 2.8mm, 0.5 - 1.0 mm² (18-20 AWG) 1108260
Mic-Relay Coil Terminal, 2.8mm, 1.5 - 2.5 mm² (16-14 AWG) 1108270
Mic-Relay Coil Wire Seal, 2.8 mm, 0.5 - 1.0 mm² (18-20 AWG), Blue 4510662
Mic-Relay Coil Wire Seal, 2.8 mm, 1.5 - 2.5 mm² (18-20 AWG), Blue 4510658
Mic-Relay Coil Cavity Plug, 2.8 mm, Natural  CID1169
Mic-Relay Contact Terminal, 6.3 mm, 0.5 - 1.0 mm² (20-18 AWG) CID301-6.3-FS1
Mic-Relay Contact Terminal, 6.3 mm, 1.0 - 2.5 mm² (16-14 AWG) CID301-6.3-FS2
Mic-Relay Contact Terminal, 6.3 mm, 2.5 - 4.0 mm² (14-12 AWG) 1102050
Mic-Relay Contact Wire Seal, 6.3 mm, 0.5 - 1.0 mm² (20-18 AWG) Blue CID1245
Mic-Relay Contact Wire Seal, 6.3 mm, 1.0 - 2.5 mm² (20-18 AWG) White CID1247
Mic-Relay Contact Wire Seal, 6.3 mm, 2.5 - 4.0 mm² (14-12 AWG) Yellow CID1248
Mic-Relay Contact Cavity Plug, 6.3 mm, Black CID3100
Mini-Relay Cavities
Coil & Contacts Terminal, 6.3 mm, 0.5 - 1.0 mm² (20-18 AWG) CID301-6.3-FS1
Coil & Contacts Terminal, 6.3 mm, 1.0 - 2.5 mm² (16-14 AWG) CID301-6.3-FS2
Coil & Contacts Terminal, 6.3 mm, 2.5 - 4.0 mm² (14-12 AWG) 1102050
Coil & Contacts Wire Seal, 6.3 mm, 0.5 - 1.0 mm² (20-18 AWG) Blue CID1245
Coil & Contacts Wire Seal, 6.3 mm, 1.0 - 2.5 mm² (20-18 AWG) White CID1247
Coil & Contacts Wire Seal, 6.3 mm, 2.5 - 4.0 mm² (14-12 AWG) Yellow CID1248
Coil & Contacts Cavity Plug, 6.3 mm, Black CID3100

MiniVal Fuses

MTA PN  DESCRIPTION
0705090  2A MiniVAL Fuse, Gray
0705100 3A MiniVAL Fuse, Voilet
0705101 4A MiniVAL Fuse, Pink
0705110 5A MiniVAL Fuse, Gray
0705120 7.5A MiniVAL Fuse, Gray
0705130 10A MiniVAL Fuse, Gray
0705140 15A MiniVAL Fuse, Gray
0705150 20A MiniVAL Fuse, Gray
0705160 25A MiniVAL Fuse, Gray
0705170 30A MiniVAL Fuse, Gray

MaxiVal Fuses

MTA PN  DESCRIPTION
0700900 20A MaxiVal Fuse, Yellow
0700910 30A MaxiVal Fuse, Green
0700920 40A MaxiVal Fuse, Orange
0700930 50A MaxiVal Fuse, Red
0700940 60A MaxiVal Fuse, Blue
0700950 70A MaxiVal Fuse. Light Brown
0700960 80A MaxiVal Fuse, White
0700970 100A MaxiVal Fuse, Violet

Relays

DESCRIPTION  MET PN
ISO Micro-Relay, 35A, 12Vdc, SPDT with Resistor MAA-S-112-C-R
ISO Mini-Relay, 40A/60A, 12Vdc, SPDT with Resistor MAH-S-112-C-1R
We have 116 in stock. Volume Pricing Available
Description

This waterproof power distribution module contains primary and secondary circuit protection. All of the waterproof modules from MTA have molded locking features that allow for multiple units to be ganged or connected together based on the amount and type of power distribution content required for the application.

MTA 0301569 Waterproof PDM Details:

Product Type:  Sealed Power Distribution Module
Minimum Order Qty:  1 piece
Brand: MTA
Part Number 0301569
Fuse Type & Quantity: 6 MiniVal Fuses + 1 MaxiVal Fuse
Relay Types & Quantity: 3 Micro Relays + 1 Maxi Relay
Sealed/Unsealed: Sealed
Color:  Black
Compliance:  RoHS, REACH
Reference PN:
Part Number:   0101569 Aftermarket packaging
Associated Components:

The following components used with this connection system and are sold separately

MTA PN  DESCRIPTION
0301371 Top Cover
0300691 Mounting Leg - Female (2 pcs reqd per module)
0300690 Mounting Leg - Male (2 pcs reqd per module)
Associated Terminals & Wire Seals:
MiniVal Cavities
MiniVal  Terminal, 2.8 mm, 0.35 -0.5 mm² (22-20 AWG) 1708337-L
MiniVal Terminal, 2.8 mm, 1.0 - 2.0 mm² ( 18-16 AWG) 1708338-L
MniVal Terminal, 2.8 mm, 2.5 - 4.0 mm² ( 14-12 AWG) 1708339-L
MiniVal Wire Seal, 2.8 mm,  Wire Insul Dia. 1.2 - 2.1 mm, Red 4550748
MiniVal Wire Seal, 2.8 mm,  Wire In
