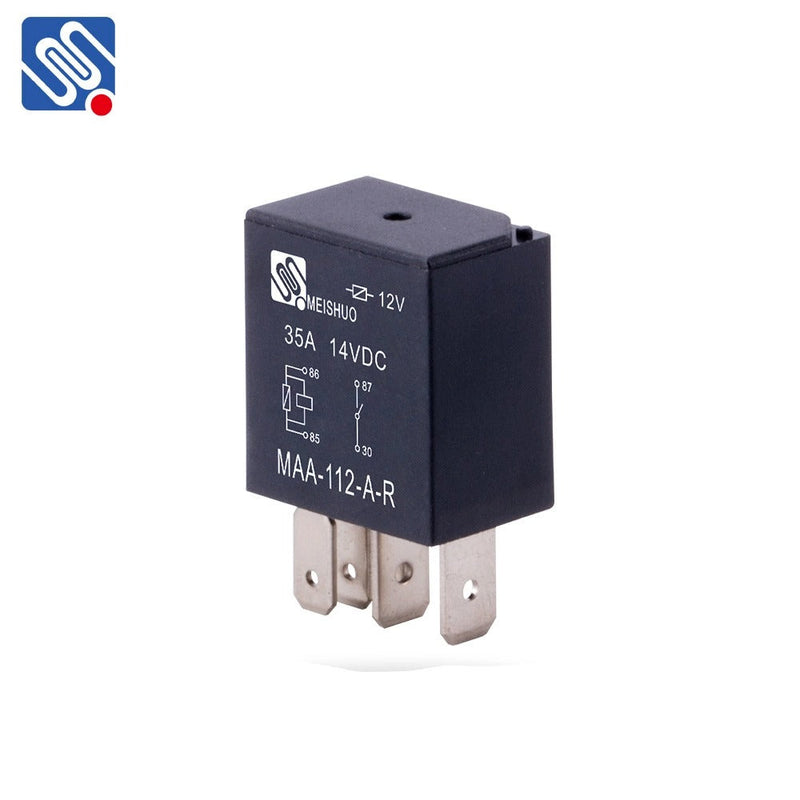

MET MAA-S-112-C-R ISO Micro-Relay 35A, 12Vdc, SPDT with Resistor Drop in for Song Chuan 871-1C-C-R1-U01-12VDC

by MEISHUO
Original price $2.75 - Original price $2.75
Original price
$2.75
$2.75 - $2.75
Current price $2.75

These 35 amp ISO micro-relays are widely used to control  in automobile lamps, rear-window defroster, air-conditioner, open circuit, fuel pump, cooling fan, on-off control, etc.

MET MAA-S-112-C-R Relay Details:

Product Type:  ISO Micro-Relay Form 1C
Minimum Order Qty:  1 piece
Brand: MET
Part Number MAA-S-112-C-R
Product Family: Micro-Relay
Suppression Type:  Resistor
Max Switching Voltage: 40Vdc
Max Continuous Current:  NO: 35A
Max Continuous Current:  NC: 20A
Protection:  Sealed
Max Temp :  125⁰C
Compliance:  RoHS, REACH
Datasheet:  MAA-S-112-C-R

Cross Reference PN:

Part Number:   871-1C-C-R1-U01-12VDC Song Chuan
We have 100 in stock. Volume Pricing Available
Description

These 35 amp ISO micro-relays are widely used to control  in automobile lamps, rear-window defroster, air-conditioner, open circuit, fuel pump, cooling fan, on-off control, etc.

MET MAA-S-112-C-R Relay Details:

Product Type:  ISO Micro-Relay Form 1C
Minimum Order Qty:  1 piece
Brand: MET
Part Number MAA-S-112-C-R
Product Family: Micro-Relay
Suppression Type:  Resistor
Max Switching Voltage: 40Vdc
Max Continuous Current:  NO: 35A
Max Continuous Current:  NC: 20A
Protection:  Sealed
Max Temp :  125⁰C
Compliance:  RoHS, REACH
Datasheet:  MAA-S-112-C-R
Cross Reference PN:
Part Number:   871-1C-C-R1-U01-12VDC Song Chuan
