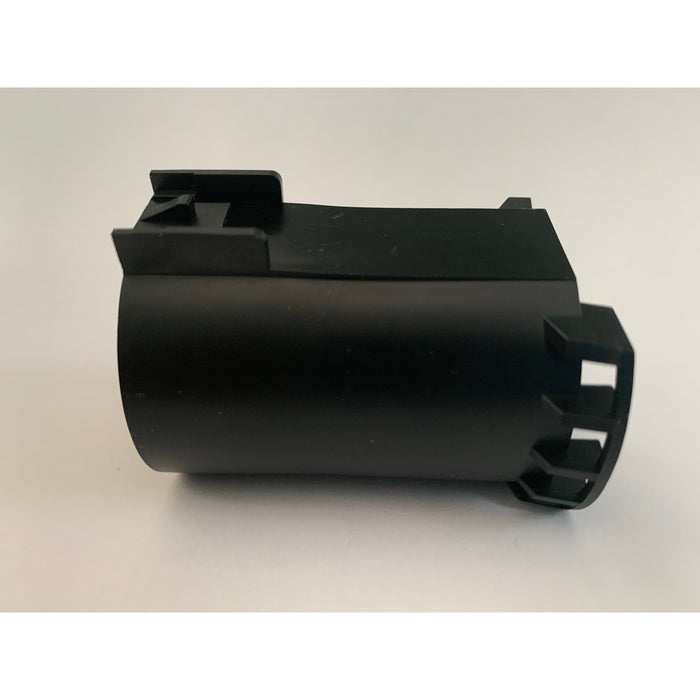

400006 USCAR 7way Trailer Tow Connector
Click or scroll to zoom
Tap or pinch to zoom
400006 USCAR 7way Trailer Tow Connector
400006 USCAR 7way Trailer Tow Connector

400006 USCAR 7way Trailer Tow Connector

by Connector ID
$2.50
We have 3 in stock. Lead time: Contact Us
Description
  • Product Type: Connector
  • Min Order Qty: 1 unit
  • Connector ID Part Number: 400006
  • Application: Automotive Trailer Tow connection
  • Number of Cavities: 7
  • Product Family: Hybrid [(6 x 2.8mm) + (1 x 6.3mm)]
  • Sealed/Unsealed: Sealed
  • Gender: Male
  • Color: Black

Associated Locks

400008     Secondary Lock, Gray

Associated Terminals

400102      Male, 2.8 mm, 3.0 - 5.0 sqmm, Tin Plated, Loose Piece

400102R    Male, 2.8 mm, 3.0 - 5.0 sqmm, Tin Plated, Reel

400104        Male, 6.3 mm, 3.0 - 5.0 sqmm, Tin Plated, Loose Piece

400104R     Male, 6.3 mm, 3.0 - 5.0 sqmm, Tin Plated, Reel

Associated Wire Seals

400201       2.8 mm single wire seal, 2.9 - 3.8 mm Wir Insul. Dia., Silicone, Blue

400209      6.3 mm single wire seal, 3.3 - 4.1 mm, Wire Insul. Dia., Silicone, Blue

Mating Conn

400005    Conn 7F, 2.8 mm + 6.3 mm, Sealed
