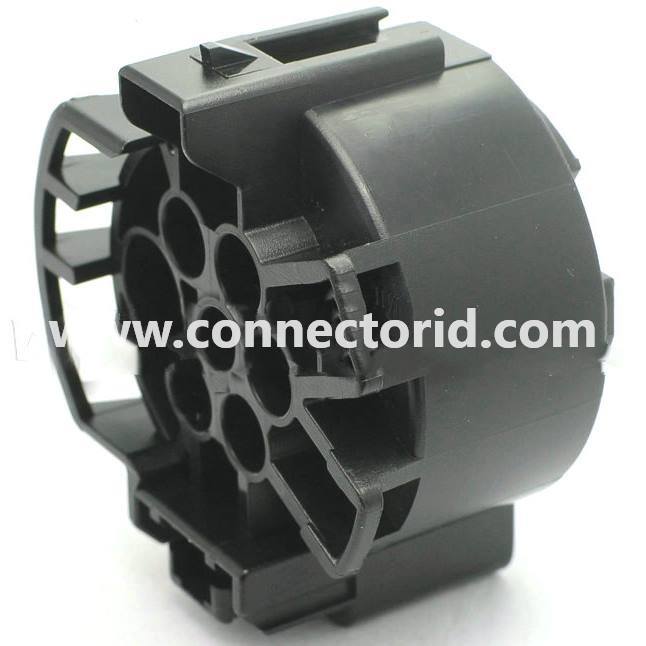

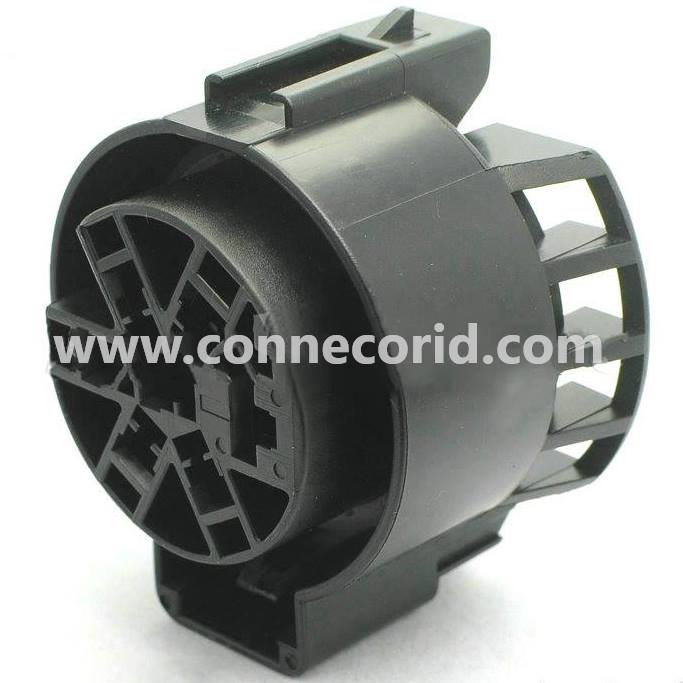

400005 USCAR 7way Trailer Tow Connector

Original price $1.16 - Original price $2.52
Original price
$1.16
$1.16 - $2.52
Current price $1.16
  • Product Type: Connector
  • Min Order Qty: 1 unit
  • Connector ID Part Number: 400005
  • Application: Automotive Trailer Tow connection
  • Number of Cavities: 7
  • Product Family: Hybrid [(6 x 2.8mm) + (1 x 6.3mm)]
  • Sealed/Unsealed: Sealed
  • Gender: Female
  • Color: Black

Associated Locks

400008     Secondary Lock, Gray

Associated Terminals

400101     Female, 2.8 mm tangless, 3.0 - 5.0 sqmm, Tin Plated, Loose Piece

400101R  Female, 2.8 mm tangless, 3.0 - 5.0 sqmm, Tin Plated, Reel

400103     Female, 6.3 mm, 3.0 - 5.0 sqmm, Tin Plated, Loose Piece

400103R  Female, 6.3 mm, 3.0 - 5.0 sqmm, Tin Plated, Reel

Associated Wire Seals

400201       2.8 mm single wire seal, 2.9 - 3.8 mm Wir Insul. Dia., Silicone, Blue

400209      6.3 mm single wire seal, 3.3 - 4.1 mm, Wire Insul. Dia., Silicone, Blue

Mating Conn

400006     Conn 7M, 2.8 mm + 6.3 mm, Sealed

We have 44 in stock. Volume Pricing Available
Description
  • Product Type: Connector
  • Min Order Qty: 1 unit
  • Connector ID Part Number: 400005
  • Application: Automotive Trailer Tow connection
  • Number of Cavities: 7
  • Product Family: Hybrid [(6 x 2.8mm) + (1 x 6.3mm)]
  • Sealed/Unsealed: Sealed
  • Gender: Female
  • Color: Black

Associated Locks

400008     Secondary Lock, Gray

Associated Terminals

400101     Female, 2.8 mm tangless, 3.0 - 5.0 sqmm, Tin Plated, Loose Piece

400101R  Female, 2.8 mm tangless, 3.0 - 5.0 sqmm, Tin Plated, Reel

400103     Female, 6.3 mm, 3.0 - 5.0 sqmm, Tin Plated, Loose Piece

400103R  Female, 6.3 mm, 3.0 - 5.0 sqmm, Tin Plated, Reel

Associated Wire Seals

400201       2.8 mm single wire seal, 2.9 - 3.8 mm Wir Insul. Dia., Silicone, Blue

400209      6.3 mm single wire seal, 3.3 - 4.1 mm, Wire Insul. Dia., Silicone, Blue

Mating Conn

400006     Conn 7M, 2.8 mm + 6.3 mm, Sealed
