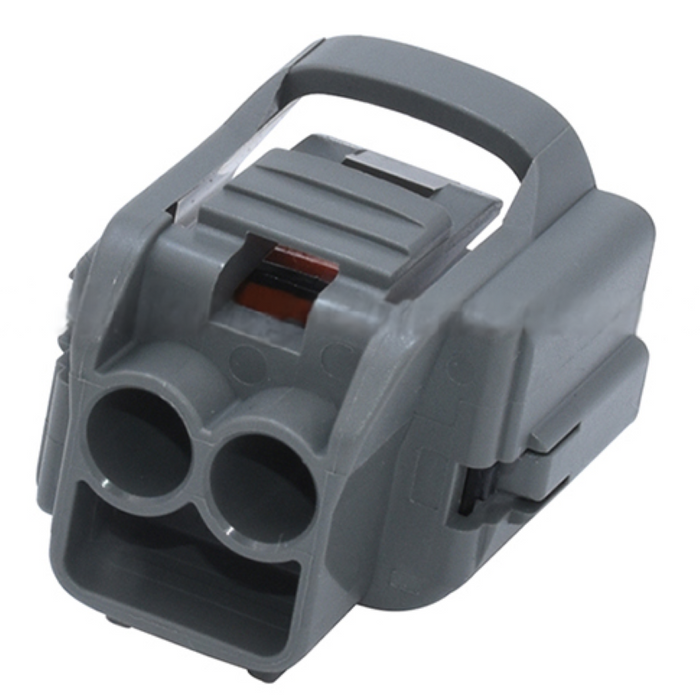

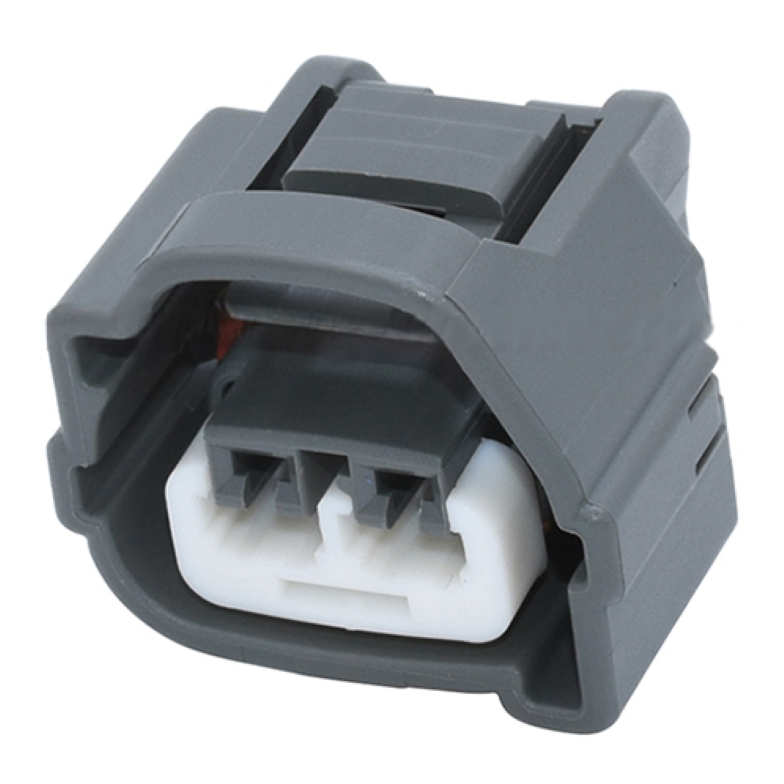

CID1021G-2.3-21 Drop in for Yazaki 7283–7021-10 Connector 2 Way Female, 090 II, Gray, Sealed
by Connector ID
Sold out
Original price
$3.85
-
Original price
$3.85
Original price
$3.85
$3.85
-
$3.85
Current price
$3.85
Yazaki 7283-7021-10 Alternate Details:
| Product Type: | Connector with TPA lock |
| Minimum Order Qty: | 1 piece Yazaki 7283-5575-10 |
| Part Number | CID1021G-2.3-21 |
| Number of cavities: | 1 |
| Product Family: | 2.3 Series |
| Sealed/Unsealed: | Sealed |
| Gender: | Female |
| Color: | Gray |
| Compliance: | RoHS, REACH |
| Sales Drawing: |
|
| Mating Part Number: | CID1021G-2.3-11 |
Reference PNs:
| Part Number: | 7283-7021-10 | Yazaki |
| Part Number: | 90980-10901 | Toyota |
Associated Components
Terminals and wire seals are sold separately.
| PART NO. | DESCRIPTION |
| CID101-2.3-FS1 | Terminal, Female 0.3 - 0.5 mm² (22 - 20 AWG) |
| CID101-2.3-FS2 | Terminal, Female 0.75 - 1.25 mm² (18 - 16AWG) |
| CID101-2.3-FS3 | Terminal, Female 2.0 mm² (14 AWG) |
| CID1504 | Wire Seal, 1.1 - 1.7 mm wire dia., Blue (22 AWG) |
| CID1397 | Wire Seal, 1.8 - 2.5 mm wire dia., Black (20,18,16 AWG) |
| CID1301 | Wire Seal, 2.0- 2.7 mm wire dia., Gray (14 AWG) |
| CID1331 | Wire Seal, 2.0- 2.7 mm wire dia., Gray (14 AWG) |
