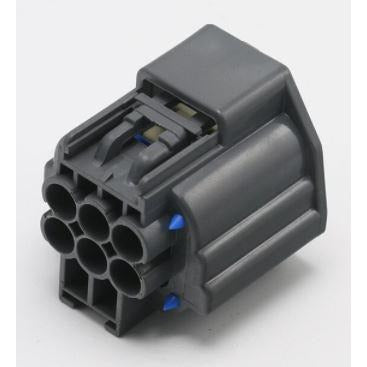

CID1061-2.8-21 Original Yazaki 7283-5577-10 Connector 6W Female, 2.8 mm Series

Original price $4.80 - Original price $4.80
Original price
$4.80
$4.80 - $4.80
Current price $4.80
Product Type:  Connector with terminal lock
Minimum Order Qty:  1 piece
Part Number CID1061-2.8-21
Number of cavities: 6
Product Family: 2.8 Series
Sealed/Unsealed: Sealed
Gender: Female
Color: Gray
Compliance:  RoHS, REACH

Reference PN:

Part Number:   7283-5577-10
Part Number:   7283-5926-10 with red CPA

Associated Components:

The following components used with this connection system and are sold separately

Terminal 0.3 - 0.5 mm² (22-20 AWG) CID101-2.8-FS1
Terminal 0.75 - 1.0 mm² (18-16 AWG) CID101-2.8-FS2
Terminal 2.0 mm² (14 AWG) CID101-2.8-FS3
Terminal 3.0 - 4.0 mm² (12 AWG) CID101-2.8-FS4
Wire Seal, 1.2 - 1.9  mm wire dia., Green, Silicone CID3111
Wire Seal, 1.8 - 2.3  mm wire dia., Yellow, Silicone CID3112
Wire Seal 2.1 - 3.0 mm wire dia., White, Silicone CID3113
Wire Seal  3.10 - 3.40 mm wire dia, Gray, Silicone CID3110
Cavity Plug, 2.8 mm, Blue, Silicone CID3114

Mating PN:

Part Number:   CID1061-2.8-11
We have 297 in stock. Volume Pricing Available
Description
Product Type:  Connector with terminal lock
Minimum Order Qty:  1 piece
Part Number CID1061-2.8-21
Number of cavities: 6
Product Family: 2.8 Series
Sealed/Unsealed: Sealed
Gender: Female
Color: Gray
Compliance:  RoHS, REACH
Reference PN:
Part Number:   7283-5577-10
Part Number:   7283-5926-10 with red CPA
Associated Components:

The following components used with this connection system and are sold separately

Terminal 0.3 - 0.5 mm² (22-20 AWG) CID101-2.8-FS1
Terminal 0.75 - 1.0 mm² (18-16 AWG) CID101-2.8-FS2
Terminal 2.0 mm² (14 AWG) CID101-2.8-FS3
Terminal 3.0 - 4.0 mm² (12 AWG) CID101-2.8-FS4
Wire Seal, 1.2 - 1.9  mm wire dia., Green, Silicone CID3111
Wire Seal, 1.8 - 2.3  mm wire dia., Yellow, Silicone CID3112
Wire Seal 2.1 - 3.0 mm wire dia., White, Silicone CID3113
Wire Seal  3.10 - 3.40 mm wire dia, Gray, Silicone CID3110
Cavity Plug, 2.8 mm, Blue, Silicone CID3114
Mating PN:
Part Number:   CID1061-2.8-11
