GEP SC55-2000A-A001 Cavity Plug (280 Series) and Relay Key
GEP SC55-2000A-A001 Cavity Plug (280 Series) and Relay Key
GEP SC55-2000A-A001 Cavity Plug (280 Series) and Relay Key

GEP SC55-2000A-A001 Cavity Plug (280 Series) and Relay Key

by Connector ID
$0.51 - $0.51
$0.51
$0.51 - $0.51
$0.51

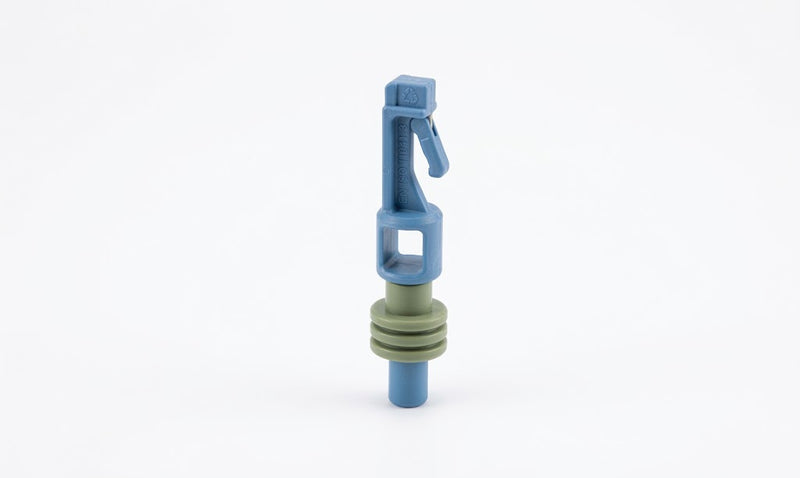

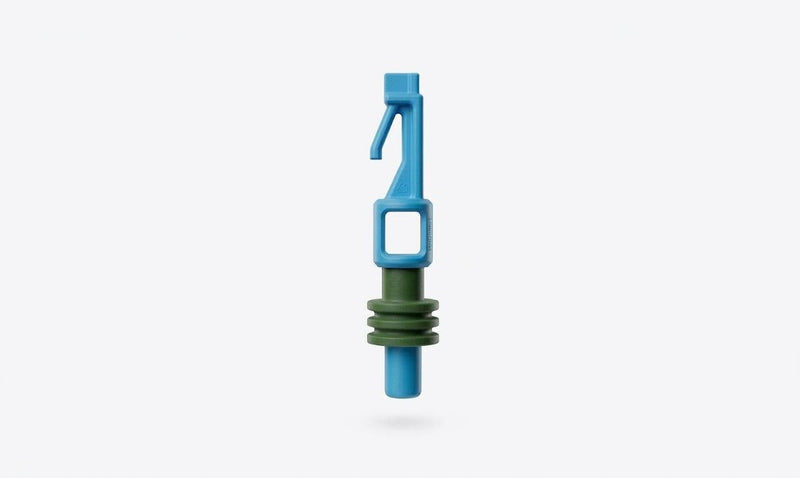

The GEP Metri-Pack 280 Tanged Terminal Cavity Plug is designed to seal and physically block unused Aptiv (Delphi) Metri-Pack 280 tanged terminal cavities in GEP Power Distribution Modules (PDMs). Featuring an integrated silicone seal, the plug extends to the component-side cavity surface, preventing terminal insertion into the occupied position. It also provides mechanical poka-yoke functionality to help prevent incorrect 5-pin micro relay installation in applicable configurations.
Key Specs
GEP Part No.  SC55-2000A-A001
Product Family:  280 Series
Features
  • Designed specifically for Aptiv (Delphi) Metri-Pack 280 tanged terminal cavities
  • Integrated silicone seal for sealing unused terminal cavities
  • Extends to the component-side cavity surface to physically prevent terminal insertion

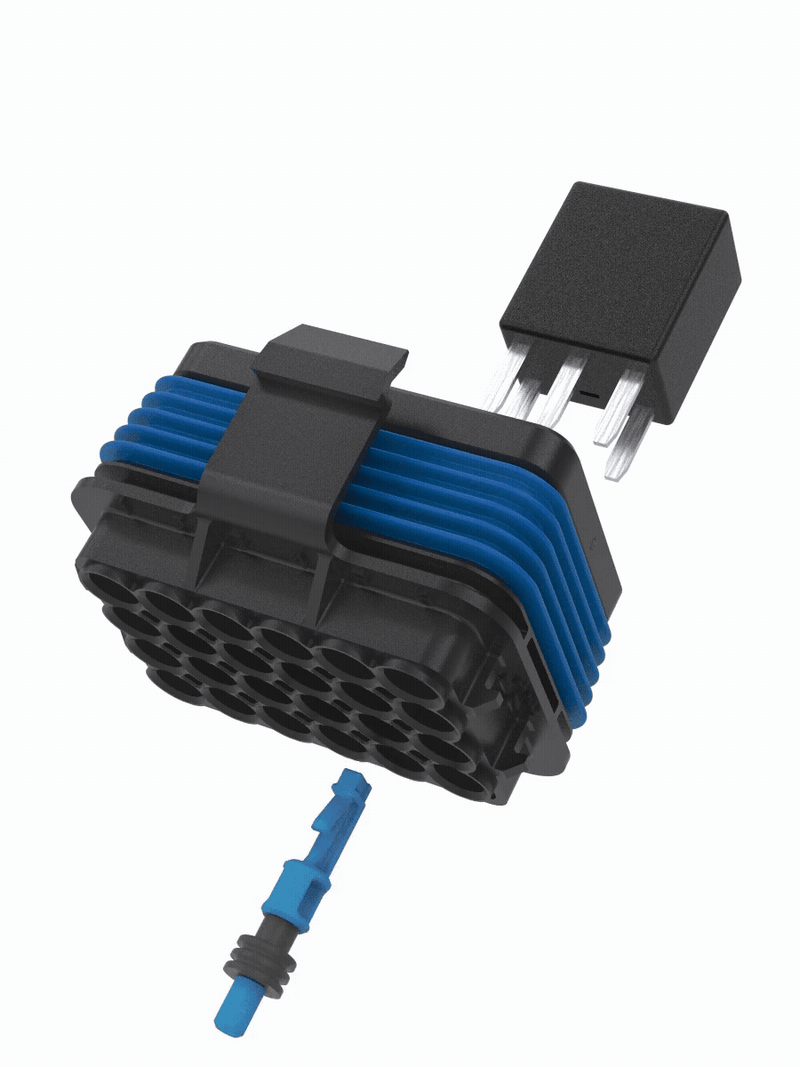

  • Provides mechanical poka-yoke functionality for applicable 5-pin micro relay configurations
  • Compatible with GEP PDMs utilizing Metri-Pack 280 tanged terminal cavities
  • Durable PBT construction with silicone sealing element
  • Not compatible with Metri-Pack 280 tangless terminal cavities

Product Compliance
Country of Origin:  China
USHTS: 8536.10.0000
We have 1000 in stock.
Description
The GEP Metri-Pack 280 Tanged Terminal Cavity Plug is designed to seal and physically block unused Aptiv (Delphi) Metri-Pack 280 tanged terminal cavities in GEP Power Distribution Modules (PDMs). Featuring an integrated silicone seal, the plug extends to the component-side cavity surface, preventing terminal insertion into the occupied position. It also provides mechanical poka-yoke functionality to help prevent incorrect 5-pin micro relay installation in applicable configurations.
Key Specs
GEP Part No.  SC55-2000A-A001
Product Family:  280 Series
Features
  • Designed specifically for Aptiv (Delphi) Metri-Pack 280 tanged terminal cavities
  • Integrated silicone seal for sealing unused terminal cavities
  • Extends to the component-side cavity surface to physically prevent terminal insertion
  • Provides mechanical poka-yoke functionality for applicable 5-pin micro relay configurations
  • Compatible with GEP PDMs utilizing Metri-Pack 280 tanged terminal cavities
  • Durable PBT construction with silicone sealing element
  • Not compatible with Metri-Pack 280 tangless terminal cavities

Product Compliance
Country of Origin:  China
USHTS: 8536.10.0000
