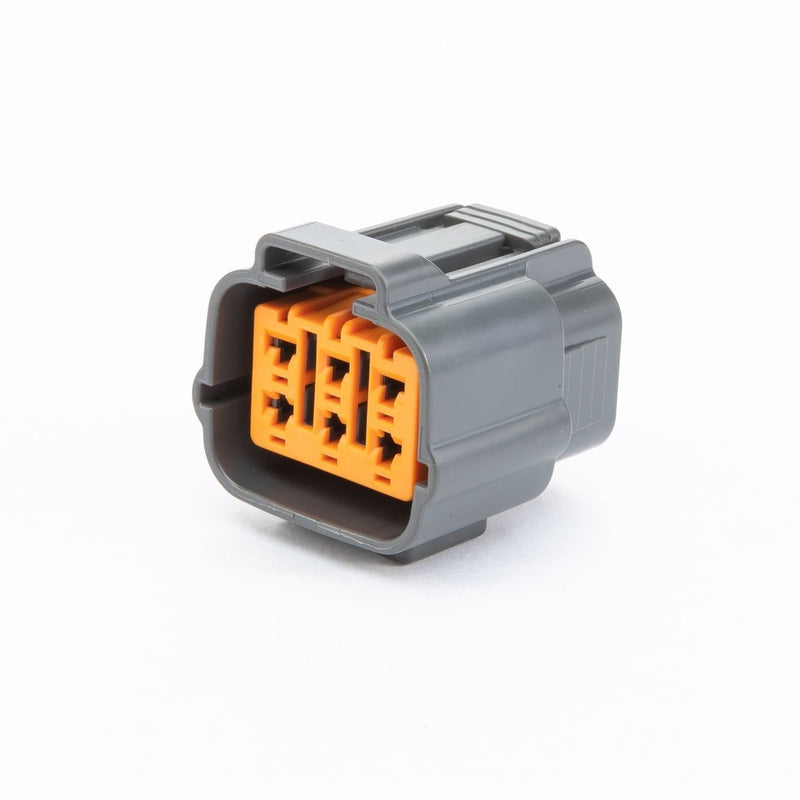

CID2067-2.3-21 Drop in for Sumitomo 6195-0021 DL 090 (2.3 mm) Series Sealed 6 way Female Connector

Sold out
Original price $2.08 - Original price $2.08
Original price
$2.08
$2.08 - $2.08
Current price $2.08

CID2067-2.3-21 is a 090 (2.3 mm) 6 way connector designed as a drop in replacement for Sumitomo's 6195-0021.

Sumitomo 6185-0021 Connector Details:

Product Type:  Connector with terminal lock
Minimum Order Qty:  1 piece
Part Number CID2067-2.3-21
Number of cavities: 6
Product Family: 2.3 Series
Sealed/Unsealed: Sealed
Gender: Female
Color: Gray
Compliance:  RoHS, REACH

Reference PN:

Part Number:
6195-0021
Sumitomo

Associated Components:

The following components used with this connection system and are sold separately

CID201-2.3-FS1 Terminal 0.3 - 0.5 mm² (22-20 AWG)
CID201-2.3-FS2 Terminal 0.75 - 1.0 mm² (18-16 AWG)
CID201-2.3-FS3 Terminal 1.25 - 2.0 mm² (16 -14 AWG)
CID1501 Wire Seal, 1.1 - 1.7 mm wire dia., (22 AWG) Gray, Silicone
CID1341 Wire Seal, 1.7 - 2.6 mm wire dia., (20-16 AWG) Black, Silicone
CID8003 Wire Seal, 2.1 - 2.7 mm wire dia., (16-14 AWG) Black, Silicone
CID1329 Cavity Plug, 2.3 series, Brown, Silicone

Mating PN:

Part Number:   CID2067-2.3-11
We have 0 in stock. Volume Pricing Available
Description

CID2067-2.3-21 is a 090 (2.3 mm) 6 way connector designed as a drop in replacement for Sumitomo's 6195-0021.

Sumitomo 6185-0021 Connector Details:

Product Type:  Connector with terminal lock
Minimum Order Qty:  1 piece
Part Number CID2067-2.3-21
Number of cavities: 6
Product Family: 2.3 Series
Sealed/Unsealed: Sealed
Gender: Female
Color: Gray
Compliance:  RoHS, REACH
Reference PN:
Part Number:   6195-0021 Sumitomo
Associated Components:

The following components used with this connection system and are sold separately

CID201-2.3-FS1 Terminal 0.3 - 0.5 mm² (22-20 AWG)
CID201-2.3-FS2 Terminal 0.75 - 1.0 mm² (18-16 AWG)
CID201-2.3-FS3 Terminal 1.25 - 2.0 mm² (16 -14 AWG)
CID1501 Wire Seal, 1.1 - 1.7 mm wire dia., (22 AWG) Gray, Silicone
CID1341 Wire Seal, 1.7 - 2.6 mm wire dia., (20-16 AWG) Black, Silicone
CID8003 Wire Seal, 2.1 - 2.7 mm wire dia., (16-14 AWG) Black, Silicone
CID1329 Cavity Plug, 2.3 series, Brown, Silicone
Mating PN:
Part Number:   CID2067-2.3-11
