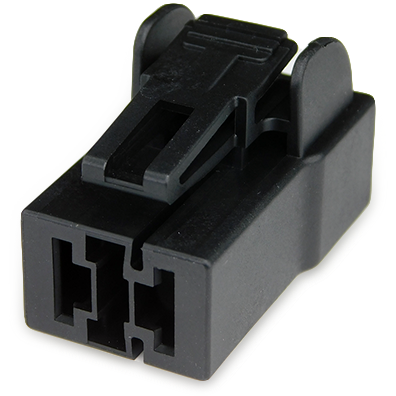

MTA 4540305 Female Connector, 2 way 800 Series

by MTA
Original price $2.36 - Original price $2.36
Original price
$2.36
$2.36 - $2.36
Current price $2.36
Specifications:
Product Type:  Connector
Minimum Order Qty:  1 piece
Brand: MTA
Part Number 4540305
Number of cavities: 2
Product Family: F800 (8.0 mm)
Sealed/Unsealed: Unsealed
Gender: Female
Color: Black
Compliance:  RoHS, REACH
Kit Part No. Available: 4540305KIT Includes Connector, Secondary Lock  and Terminals

Associated Components:

The following components used with this connection system and are sold separately

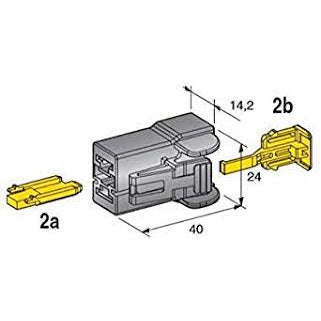

Secondary Lock: 4545100 (image 2a)
Conn Position Assurance: 4545300 (image 2b)
Terminal 1.5 - 2.5 mm² (14 AWG), CuZn-Sn 1707650-L
Terminal 4.0 - 6.0 mm² (10 AWG), CuZn-Sn 1707660-L
Terminal  8.0 - 10. 0 mm² (8 AWG), CuZn-Sn 1707670-L
Terminal  8.0 - 10. 0 mm² (8 AWG), CuNi-Sn 1707672-L
Terminal 16. 0 mm² (6 AWG), CuNi-Sn 1707671-L
Mating Connector: 4540405
We have 1228 in stock. Volume Pricing Available
