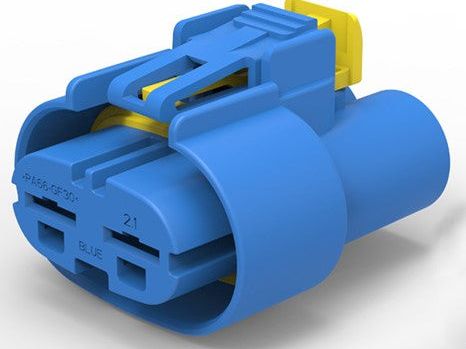

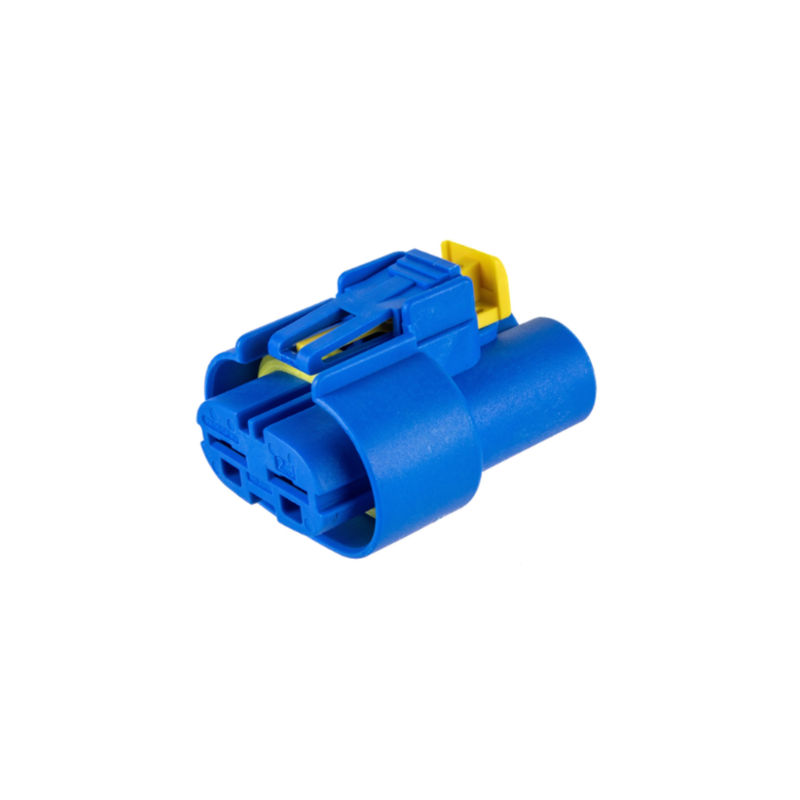

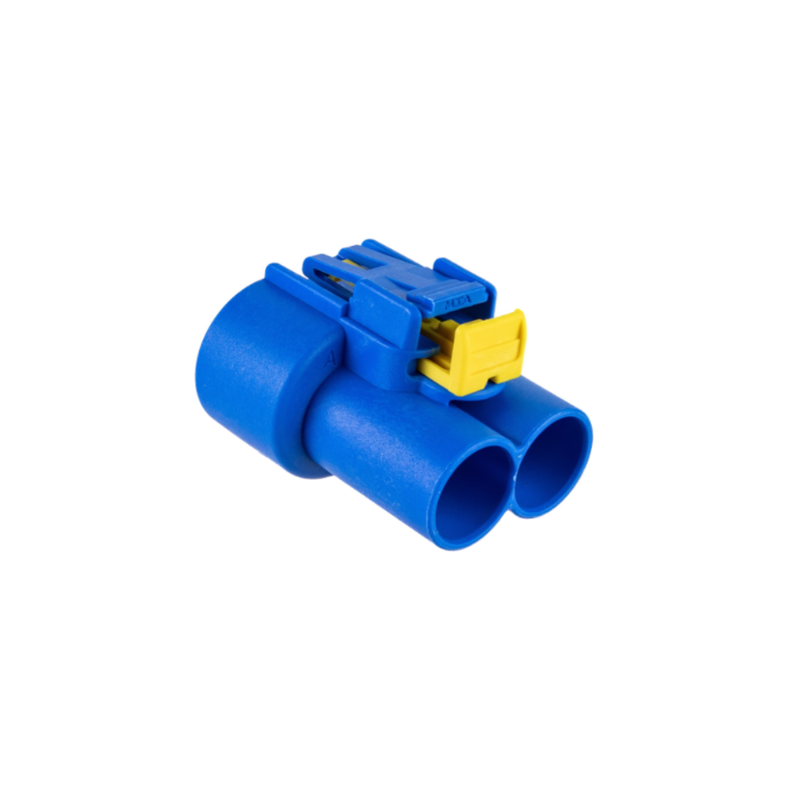

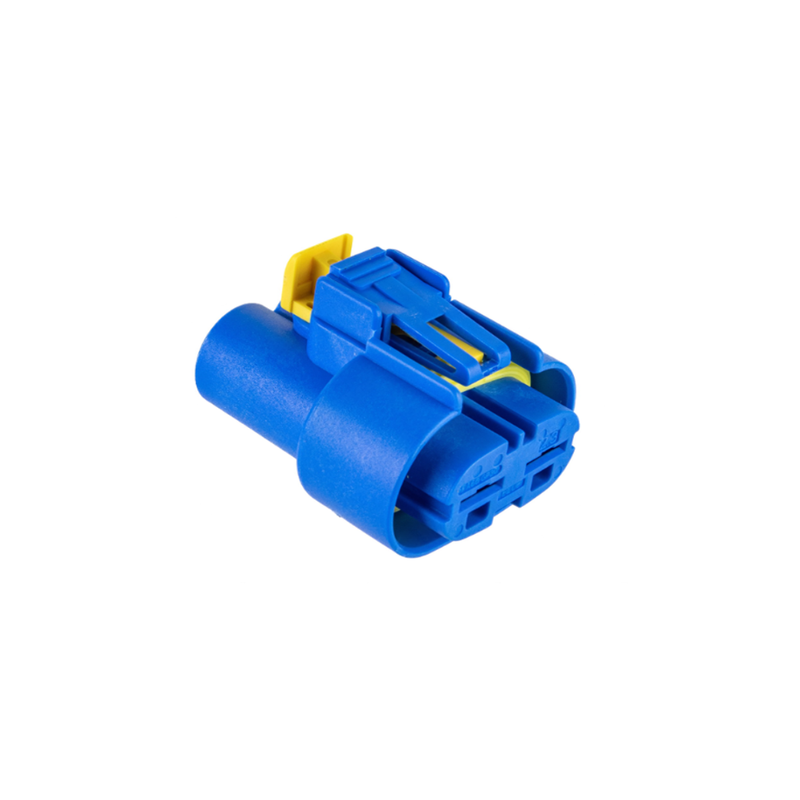

MTA 4540110 Sealed 2 way 800 Series Power Female Connector, Blue
by MTA
Sold out
Original price
$2.45
-
Original price
$2.45
Original price
$2.45
$2.45
-
$2.45
Current price
$2.45
This sealed 2 way female Maxi 800 connector accepts 8.0 mm terminals for high power applications.
MTA 4540110 Sealed Connector Details:
| Product Type: | Connector |
| Minimum Order Qty: | 1 piece |
| Brand: | MTA |
| Part Number | 4540110 |
| Number of cavities: | 2 |
| Product Family: | 800 Series |
| Sealed/Unsealed: | Sealed |
| Gender: | Female |
| Color: | Blue |
| CPA Color: | Yellow |
| Compliance: | RoHS, REACH |
| Sales Drawing: | 4540110 Maxi 800 Power Connector |
| Mating Connector: | 4540210 |
Associated Components:
The following components used with this connection system and are sold separately
| Terminal 1.5 - 2.5 mm² (16-14 AWG), Tin Plated | 1707400-L |
| Terminal 3.0 - 6.0 mm² (12 -10 AWG), Tin Plated | 1707410-L |
| Terminal 7.0 - 10.0 mm² (12 -10 AWG), Tin Plated | 1707420-L |
| Wire Seal, 1.9 - 3.3 mm Wire Insul Diameter, Green | 4550780 |
| Wire Seal, 3.4 - 4.9 mm Wire Insul Diameter, Blue | 4550781 |
| Wire Seal, 5.0 - 6.5 mm Wire Insul Diameter, Red | 4550782 |
| Cavity Plug, Natural | 4550784 |
