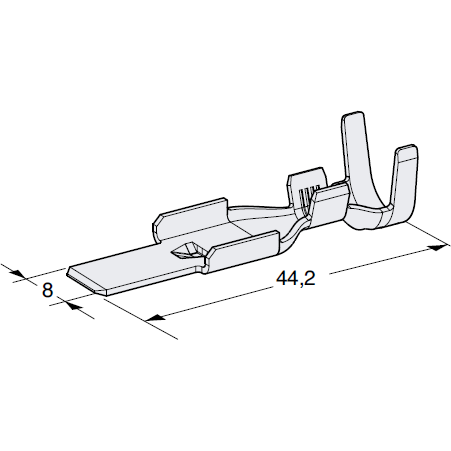

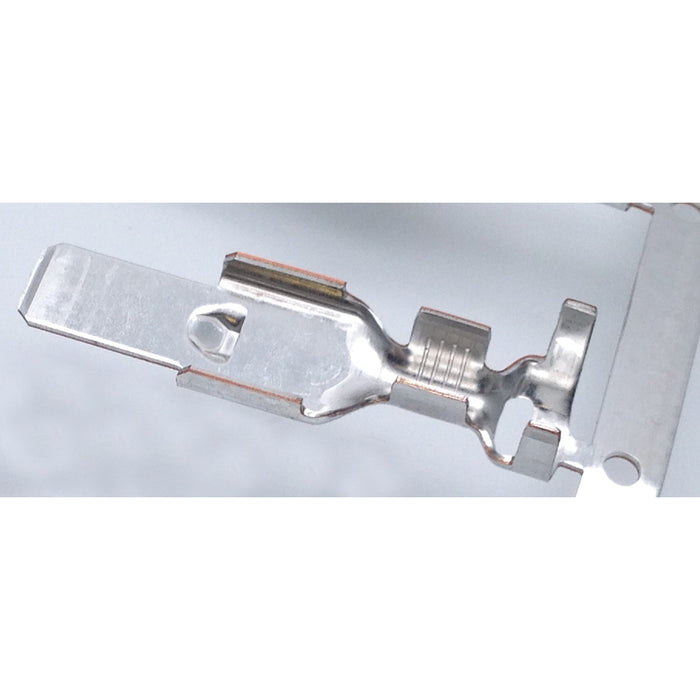

MTA 1707760 Maxi 800 Male Terminal, Sealed, 2.5 - 4.0 mm²
Click or scroll to zoom
Tap or pinch to zoom
MTA 1707760 Maxi 800 Male Terminal, Sealed, 2.5 - 4.0 mm²
Click or scroll to zoom
Tap or pinch to zoom
MTA 1707760 Maxi 800 Male Terminal, Sealed, 2.5 - 4.0 mm²
MTA 1707760 Maxi 800 Male Terminal, Sealed, 2.5 - 4.0 mm²

MTA 1707760 Maxi 800 Male Terminal, Sealed, 2.5 - 4.0 mm²

by MTA
$1.03
We have 0 in stock. Volume Pricing Available

Specifications:

  • Product Type: Terminal, Reel
  • MTA Part Number: 1707760
  • Minimum Order Qty: 1 reel = 650 pieces
  • Product Family: WP M800 (8.0 mm)
  • Wire Size Range:  2.5 - 4.0  mm²
  • Sealed/Unsealed: Sealed
  • Gender:  Male
  • Material: Copper Alloy
  • Plating: Tin
  • Compliance: REACH, RoHS
  • Alternate Packaging: 1107760 (Loose Piece)

Associated Wire Seals:

  • 4550780       2.7-3.7 mm wire insulation Dia. , Blue
  • 4550781        4.0-4.3 mm wire insulation Dia., Green
  • 4550782        5.0-6.5 mm wire insulation Dia., Red
Description

Specifications:

  • Product Type: Terminal, Reel
  • MTA Part Number: 1707760
  • Minimum Order Qty: 1 reel = 650 pieces
  • Product Family: WP M800 (8.0 mm)
  • Wire Size Range:  2.5 - 4.0  mm²
  • Sealed/Unsealed: Sealed
  • Gender:  Male
  • Material: Copper Alloy
  • Plating: Tin
  • Compliance: REACH, RoHS
  • Alternate Packaging: 1107760 (Loose Piece)

Associated Wire Seals:

  • 4550780       2.7-3.7 mm wire insulation Dia. , Blue
  • 4550781        4.0-4.3 mm wire insulation Dia., Green
  • 4550782        5.0-6.5 mm wire insulation Dia., Red
