MTA 1707420 Maxi 800 Female Terminal, Sealed, 7.0 - 10.0 mm², Reel

by MTA
Original price $1.05 - Original price $1.05
Original price
$1.05
$1.05 - $1.05
Current price $1.05

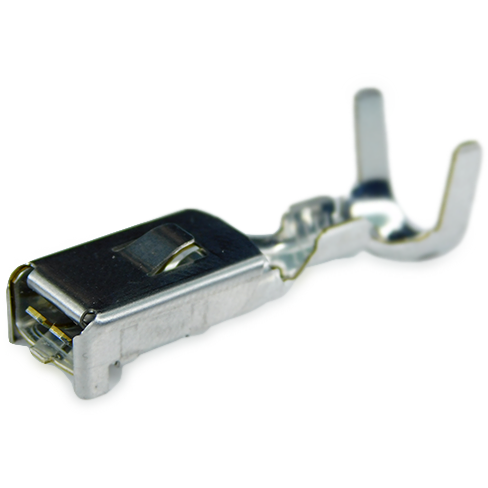

This 8.0 mm female terminal is used in MTA's sealed Maxi Power high current connectors and power distribution modules.

MTA 1707420 Sealed Terminal Details:

Product Type:  Terminal, Reel
Brand: MTA
Part Number:  1707420
Minimum Order Qty:  650 pcs
Product Family:  Maxi F800 Series WP
Wire Size Metric: 7.0 - 10.0 mm²
Wire Size AWG:  8
Rated Current @ 23⁰ C 53 amps
Sealed / Unsealed: Sealed
Gender:  Female
Material: Copper Alloy
Plating: Tin
Material Thickness: 0.5 mm
Compliance: RoHS, REACH
Alternate Packaging: 1707420-L (Loose Piece)
Sales Drawing:  1707400 MAXI 800 WP

Associated Wire Seals:

The following components used with this connection system and are sold separately

MTA PN  DESCRIPTION
4550780 1.9 - 3.3 mm wire insulation diameter, Green
4550781 3.4 - 4.9 mm wire insulation diameter, Blue
4550782 5.0 - 6.5 mm wire insulation diameter, Red
We have 650 in stock. Volume Pricing Available
