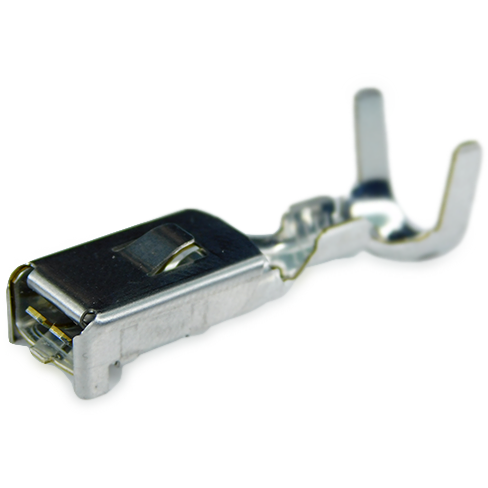

This 8.0 mm female terminal is used in MTA's sealed Maxi Power high current connectors and power distribution modules.
MTA 1707400 Sealed Terminal Details:
| Product Type: | Terminal, Reel |
| Brand: | MTA |
| Part Number: | 1707400 |
| Minimum Order Qty: | 650 pieces per reel |
| Product Family: | WP Maxi F800 Series |
| Wire Size Metric: | 1.5 - 2.5 mm² |
| Wire Size AWG: | 16, 14 |
| Rated Current @ 23⁰ C | 20 Amps |
| Sealed / Unsealed: | Sealed |
| Gender: | Female |
| Material: | Copper Alloy |
| Plating: | Tin |
| Material Thickness: | 0.5 mm |
| Compliance: | RoHS, REACH |
| Alternate Packaging: | 1707400-L (Loose Piece) |
| Sales Drawing: | 1707400 Maxi 800 WP |
Associated Wire Seals:
The following components used with this connection system and are sold separately
| MTA PN | DESCRIPTION |
| 4550780 | 1.9 - 3.3 mm wire insulation diameter, Green |
| 4550781 | 3.4 - 4.9 mm wire insulation diameter, Blue |
| 4550782 | 5.0 - 6.5 mm wire insulation diameter, Red |
