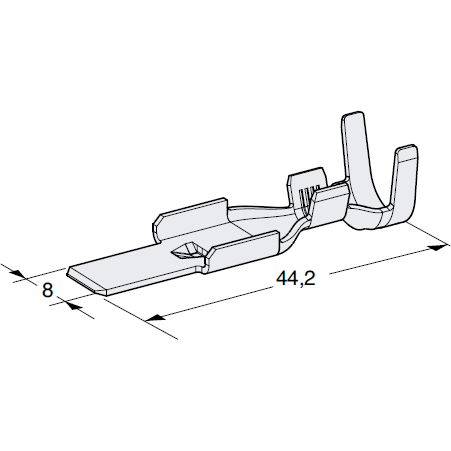

MTA 1707780-L Maxi 800 Male Terminal, Sealed, 10.0 - 16.0 mm²
Click or scroll to zoom
Tap or pinch to zoom
MTA 1707780-L Maxi 800 Male Terminal, Sealed, 10.0 - 16.0 mm²
MTA 1707780-L Maxi 800 Male Terminal, Sealed, 10.0 - 16.0 mm²

MTA 1707780-L Maxi 800 Male Terminal, Sealed, 10.0 - 16.0 mm²

by MTA
$2.05
We have 0 in stock. Lead time: Contact Us
Description

Specifications:

  • Product Type: Terminal, Loose Piece
  • MTA Part Number: 1707780-L
  • Minimum Order Qty: 1 piece
  • Product Family: WP M800 (8.0 mm)
  • Wire Size Range:  10.0 - 16.0  mm²
  • Sealed/Unsealed: Sealed
  • Gender:  Male
  • Material: Copper Alloy
  • Plating: Tin
  • Material Thickness: 0.8 mm
  • Compliance: REACH, RoHS
  • Alternate Packaging: 1707780 (Reel)

Associated Wire Seals:

  • 4550780-L        2.7-3.7 mm wire insulation Dia. , Blue
  • 4550781-L        4.0-4.3 mm wire insulation Dia., Green
  • 4550782-L        5.0-6.5 mm wire insulation Dia., Red
