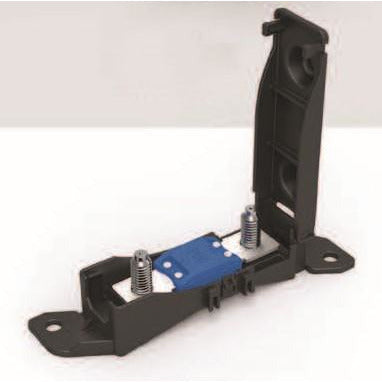

Description
Specifications:
Product Type: | Power Distribution Unit |
Minimum Order Qty: | 1 piece |
Brand: | MTA |
Part Number | 0301498 (0101498) |
Stud Size: | M8 |
Fuse Type: | MegaVal |
Sealed/Unsealed: | Unsealed |
Included: | Cover |
Compliance: | RoHS, REACH |
Associated Components:
The following components used with this connection system and are sold separately
DESCRIPTION | MTA PN |
Terminal, M8 Ring, 8.0 - 10.0 mm² | 1706760-L |
Lug, M8 Ring, 16.0 mm² | 1605100 |
Lug, M8 Ring, 25.0 mm² | 1605010 |
Lug, M8 Ring, 35.0 mm² | 1605021 |
Terminal, M8 Ring, MEGA, Pol A, 25.0 - 40.0 mm² | 1609330-B |
Terminal, M8 Ring, 40.0 - 70.0 mm² | 1607510-B |

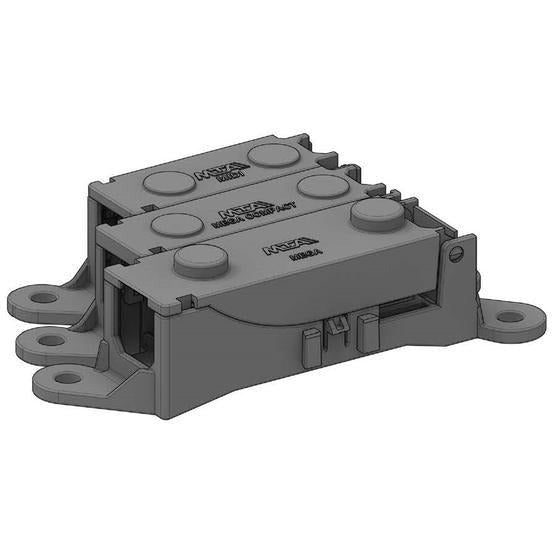

Bus Bars
MTA PN | DESCRIPTION |
0301509 | 2 Way MidiVAL Bus Bar |
0301252 | 2 way Bus Bar - 1 MidiVAL / 1 MegaVAL |
0301508 | 3 Way MidiVAL Bus Bar |
0301511 | 3 Way Bus Bar - 1 MidiVAL / 2 MegaVAL |
0301512 | 4 Way MidiVAL Bus Bar - 2 MidiVA L/ 2 MegaVAL |
0301250 | 4 Way MidiVAL Bus Bar - 3 MidiVAL / 1 MegaVAL |
0301249 | 5 Way MidiVAL Bus Bar - 4 MidiVAL / 1 MegaVAL |
0301227 | 5 Way MidiVAL Bus Bar |
0301225 | 6 Way MidiVAL Bus Bar - 4 MidiVAL / 2 MegaVAL |
0301226 | 7 Way MidiVAL Bus Bar - 4 MidiVAL / 3 MegaVAL |
Power Feed Modules
MegaVal Fuses
DESCRIPTION | MTA PN |
100A MegaVal, Yellow, Tin Plated Zinc | 0701100 |
125A MegaVal, Green, Tin Plated Zinc | 0701125 |
150A MegaVal, Orange, Tin Plated Zinc | 0701150 |
175A MegaVal, White, Tin Plated Zinc | 0701175 |
200A MegaVal, Blue, Tin Plated Zinc | 0701200 |
225A MegaVal, Light Brown, Tin Plated Zinc | 0701225 |
250A MegaVal, Pink, Tin Plated Zinc | 0701250 |
100A MegaVal, Yellow, Tin Plated Copper | 0711100 |
125A MegaVal, Green, Tin Plated Copper | 0711125 |
150A MegaVal, Orange, Tin Plated Copper | 0711150 |
175A MegaVal, White, Tin Plated Copper | 0711175 |
200A MegaVal, Blue, Tin Plated Copper | 0711200 |
225A MegaVal, Light Brown, Tin Plated Copper | 0711225 |
250A MegaVal, Pink, Tin Plated Copper | 0711250 |
300A MegaVal, Gray, Tin Plated Copper | 0711300 |
400A MegaVal, Violet, Tin Plated Copper | 0701401 |
500A MegaVal, Brown, Tin Plated Copper | 0701600 |
