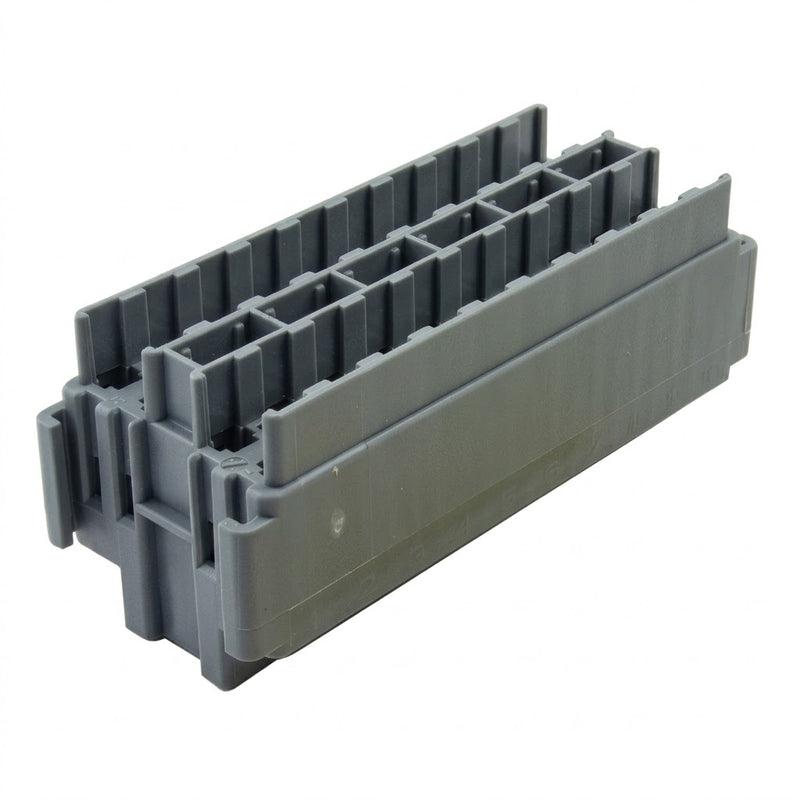

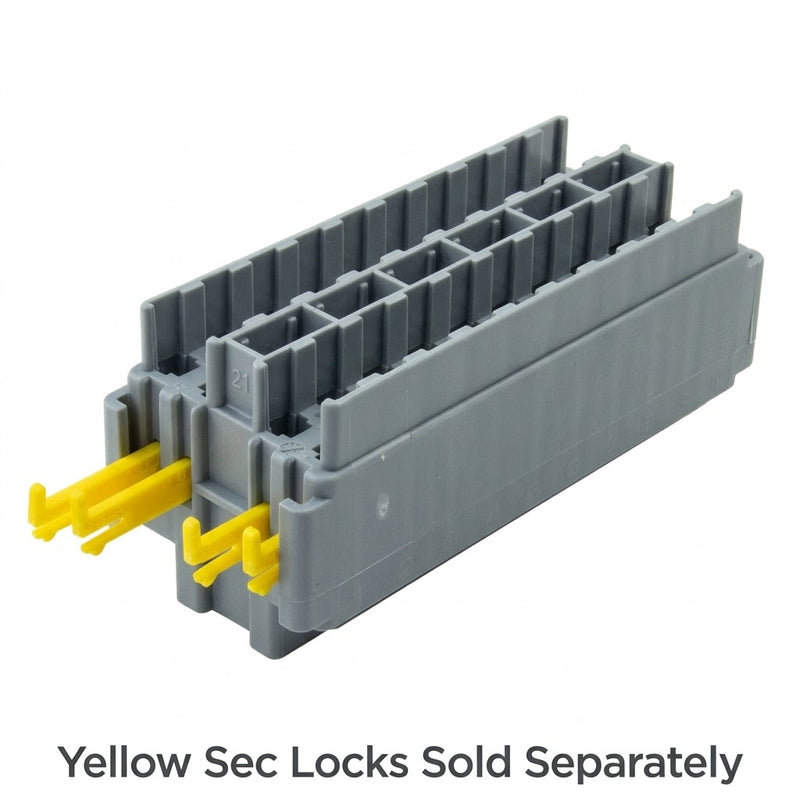

MTA 0301460 MiniVAL Modular Power Distribution Unit

by MTA
Original price $8.60 - Original price $8.60
Original price
$8.60
$8.60 - $8.60
Current price $8.60

MTA offers 15 different modules and a variety of frames, covers, and brackets to build a wide range of flexible modular solutions for holding fuses, relays, and diodes. All of the modules are designed with secondary locks to guarantee maximum safety and high performance. They are built to resist stress and provide reliable technology.

Product Type:  Modular Power Distribution Unit
Minimum Order Qty:  1 piece
Brand: MTA
Part Number 0301460 (secondary locks not included)
Number of cavities: 40
Design Layout:  20 miniVal / minifuse / breakers
Product Family: Mini F280 (2.8 mm)
Sealed/Unsealed: Unsealed
Gender: Female
Color: Gray
Compliance:  RoHS, REACH

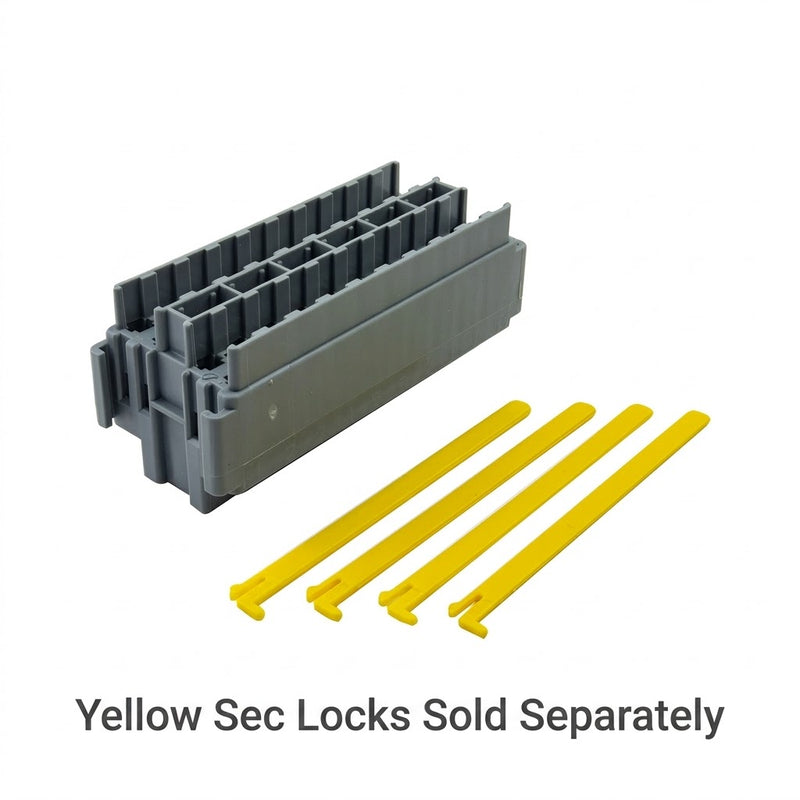

Seconday Lock: Not included with module. Please purchase 0300793 separate.


Associated Components:

DESCRIPTION MTA PN
Terminal 0.5 - 0.75 mm² (20-18 AWG) 1708330-L
Terminal 1.0 - 2.0 mm² (16-14 AWG) 1708331-L
Terminal  2.5 - 4.0 mm² (12 AWG) 1708332-L
Bus Bar Terminal 1.0 - 2.0 mm² (16-14 AWG) 1708335-L
Bus Bar Terminal 2.5 - 4.0 mm² (12 AWG) 1708336-L
Mounting Bracket for Single Module  0301580
Mounting Bracket for Two modules 0300699
Mounting Bracket, extended height  0301180
Mounting Brakcet,  end-to-end 0301620
Mounting Frame for 4 module Flush Mount  0301520
Mounting Frame for 5 modules 0301450
Mounting Frame for 5 modules 0301706
Mounting Frame for 12 modules, Upright Mount 0301682
Mounting Frame for 12 modules, Flush Mount 0301680
Mounting Frame for 12 modules, Flush Mount 0301681

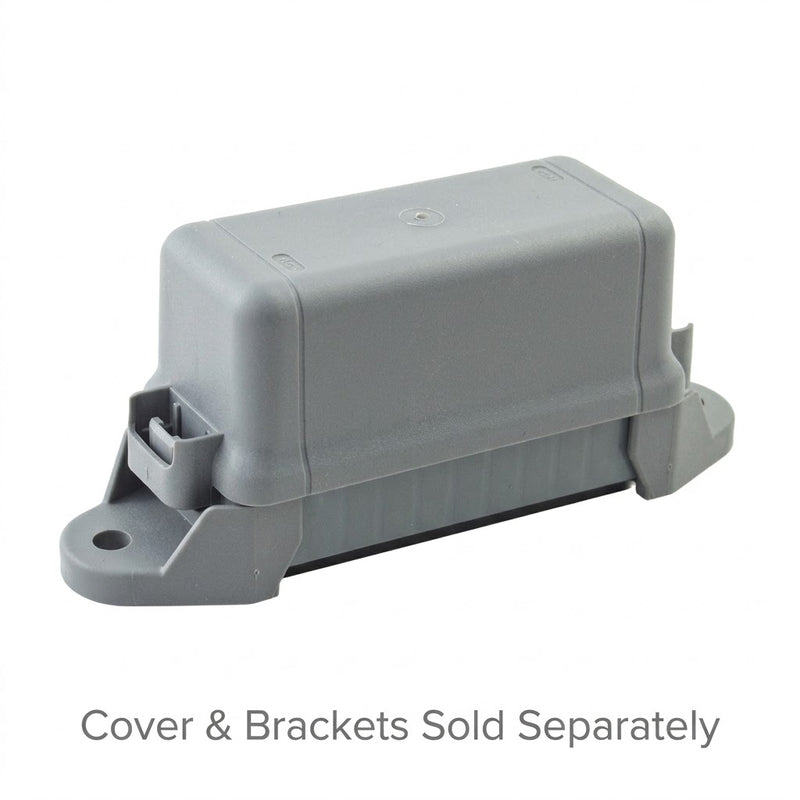

Cover for a single module 0301590
Cover for two adjacent modules 0301550
Cover for 4 way frame 0301530
Cover for 5 way frame 0301540

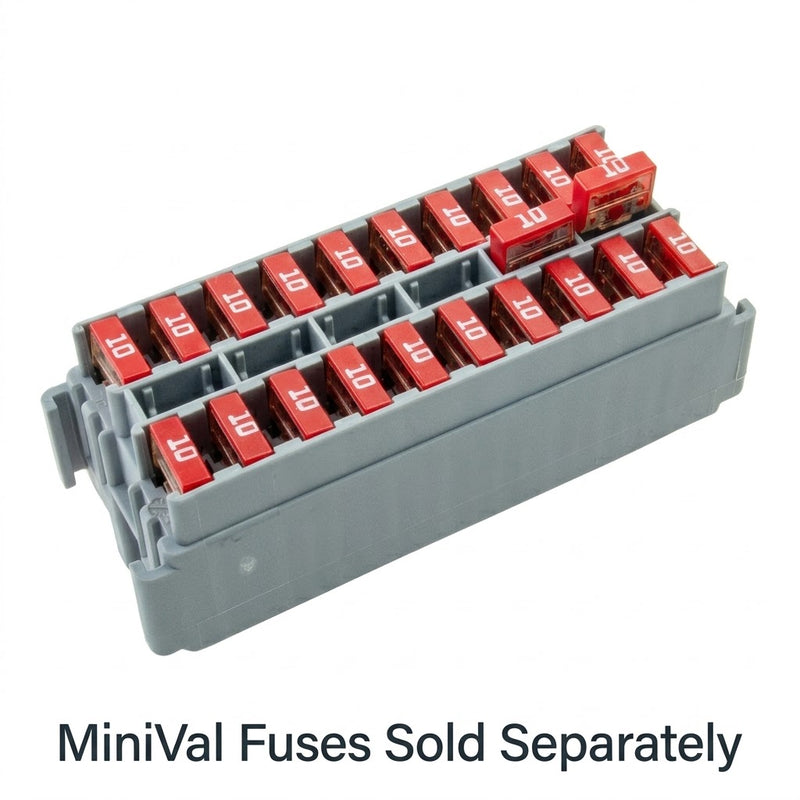

Associated MiniVal Fuses:

MTA PN  DESCRIPTION
0705090  2A MiniVAL Fuse, Gray
0705100 3A MiniVAL Fuse, Voilet
0705101 4A MiniVAL Fuse, Pink
0705110 5A MiniVAL Fuse, Gray
0705120 7.5A MiniVAL Fuse, Gray
0705130 10A MiniVAL Fuse, Gray
0705140 15A MiniVAL Fuse, Gray
0705150 20A MiniVAL Fuse, Gray
0705160 25A MiniVAL Fuse, Gray
0705170 30A MiniVAL Fuse, Gray
We have 183 in stock. Volume Pricing Available
