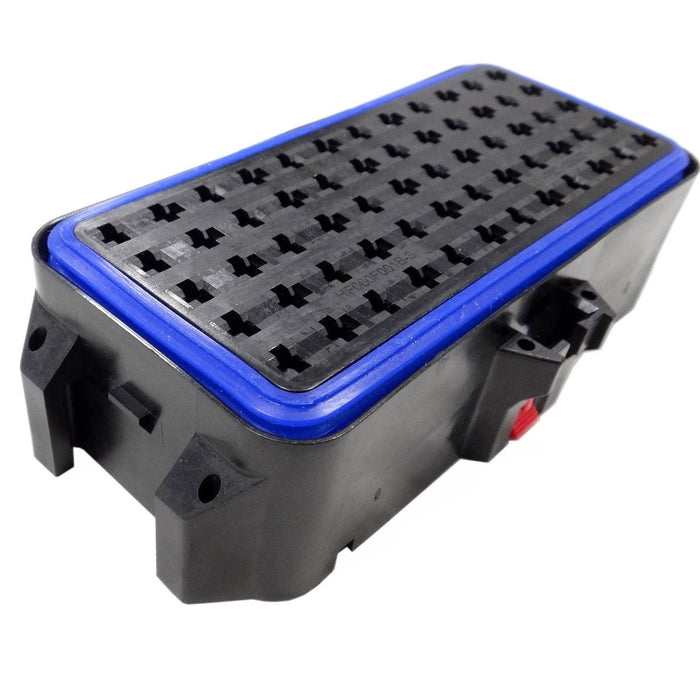

CID9600-2.8-21 Sealed 280 footprint 60-Cavity Power Distribution Module for Minifuse and Micro-Relays
by MTA
Sold out
Original price
$20.29
-
Original price
$20.29
Original price
$20.29
$20.29
-
$20.29
Current price
$20.29
This waterproof power distribution module is constructed with 60 sealed 2.8 mm cavities so that it will accept a wide range of 280 devices, such as mini-fuses and footprint relays.
Sealed 60-Cavity PDM Details:
This waterproof power distribution module
| Product Type: | Sealed Power Distribution Module |
| Minimum Order Qty: | 1 piece |
| Part Number | CID9600-2.8-21 |
| Fuse Type: | Mini-Fuses |
| Relay Type: | 280 Footprint Micro-Relays |
| Cavity Size: | 2.8 mm (280 footprint) |
| No. of Cavities: | 60 |
| Sealed/Unsealed: | Sealed |
| Color: | Black |
| Compliance: | RoHS, REACH |
Reference PN:
| Part Number: | 1443997-1 |
Associated Components:
The following components used with this connection system and are sold separately.
| MTA PN | DESCRIPTION |
| 0301371 | Top Cover |
Associated Terminals & Wire Seals
| MTA PN | DESCRIPTION |
| CID300-2.8-FS1 | Terminal, Sealed 2.8 mm, 0.5 - 1.0 mm² (20 -16 AWG) |
| CID300-2.8-FS2 | Terminal, Sealed 2.8 mm, 1.5 - 2.5 mm² ( 16-14 AWG) |
| CID300-2.8-FS3 | Terminal, Sealed 2.8 mm, 4.0 mm² (12 AWG) |
| 4550748 | Wire Seal, 2.8 mm, Wire Insul Dia. 1.2 - 2.1 mm, Red |
| 4550747 | Wire Seal, 2.8 mm, Wire Insul Dia. 2.2 - 3.0 mm, Green |
| 4550749 | Wire Seal, 2.8 mm, Wire Insul Dia. 3.1 - 3.7 mm, Gray |
| 4550750 | Cavity Plug, 2.8 mm, Black |
MiniVal Fuses
| MTA PN | DESCRIPTION |
| 0705090 | 2A MiniVAL Fuse, Gray |
| 0705100 | 3A MiniVAL Fuse, Voilet |
| 0705101 | 4A MiniVAL Fuse, Pink |
| 0705110 | 5A MiniVAL Fuse, Gray |
| 0705120 | 7.5A MiniVAL Fuse, Gray |
| 0705130 | 10A MiniVAL Fuse, Gray |
| 0705140 | 15A MiniVAL Fuse, Gray |
| 0705150 | 20A MiniVAL Fuse, Gray |
| 0705160 | 25A MiniVAL Fuse, Gray |
| 0705170 | 30A MiniVAL Fuse, Gray |
