MTA 0301370 Sealed Power Distribution Module for 30 Minival Fuses /10 Micro-Relays

by MTA
Original price $20.29 - Original price $20.29
Original price
$20.29
$20.29 - $20.29
Current price $20.29

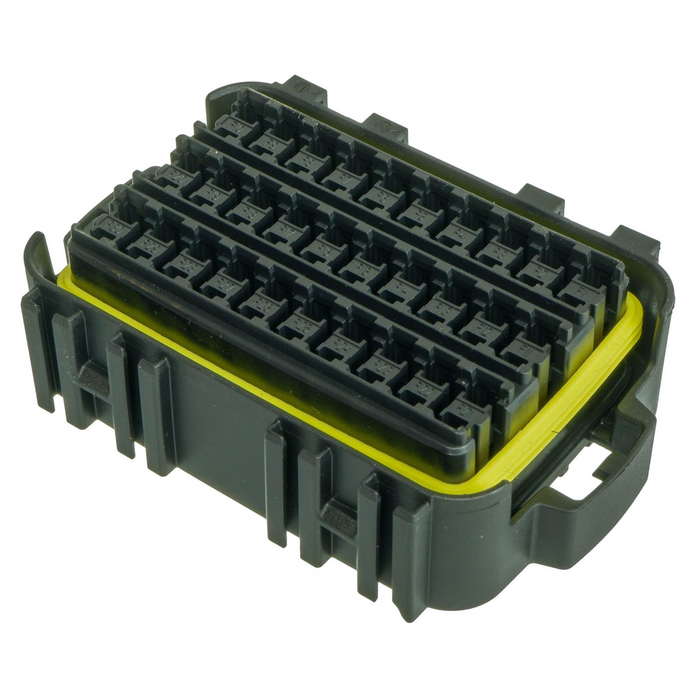

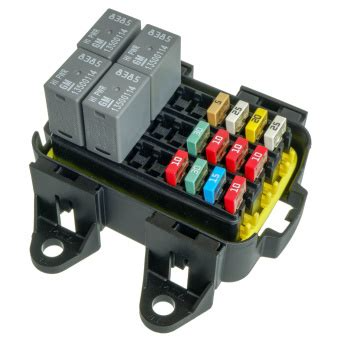

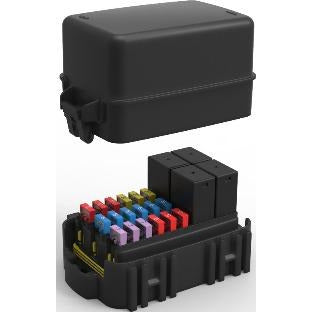

This waterproof power distribution module is constructed with 60 sealed 2.8 mm cavities so it will accept a wide range of 280 devices such as miniVal fuses, 280 footprint relays. All of the waterproof modules from MTA have molded locking features that allow for multiple units to be ganged or connected together based on the amount and type of power distribution content required for the application.

MTA 0301370 Waterproof PDM Details:

This waterproof power distribution module

Product Type:  Sealed Power Distribution Module
Minimum Order Qty:  1 piece
Brand: MTA
Part Number 0301370
Fuse Type: MiniVal
Cavitiy Size:  2.8 mm (280 footprint)
No. of Cavities:  60
Sealed/Unsealed: Sealed
Color:  Black
Compliance:  RoHS, REACH

Reference PN:

Part Number:   0101370 Aftermarket packaging

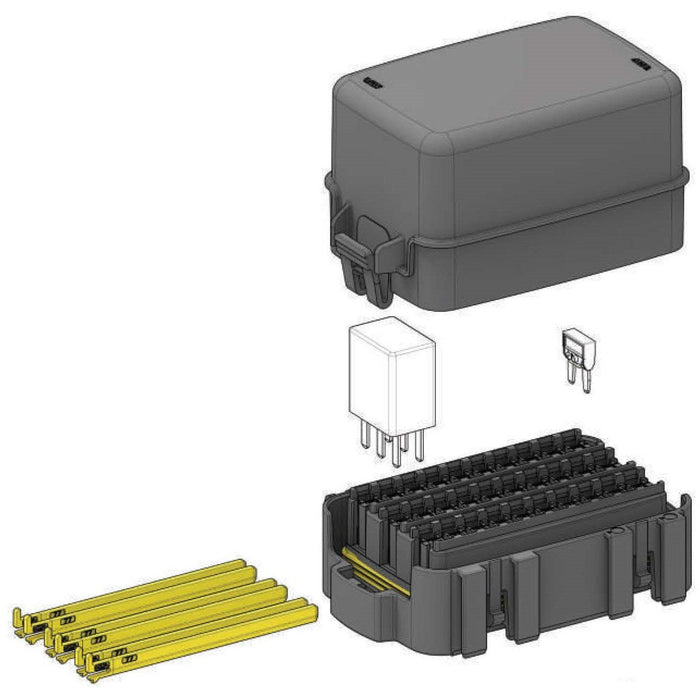

Associated Components:

The following components used with this connection system and are sold separately

MTA PN DESCRIPTION
0301372 Secondary Lock ( 6 pcs required per module)
0301371 Top Cover
0300691 Mounting Leg - Female (2 pcs reqd per module)
0300690 Mounting Leg - Male (2 pcs reqd per module)

Associated Terminals & Wire Seals

MTA PN  DESCRIPTION
1708337-L Terminal, Sealed 2.8 mm, 0.35 -  0.75 mm² (22-20 AWG)
1708338-L Terminal, Sealed 2.8 mm, 1.0 - 2.0 mm² ( 18-16 AWG)
1708339-L Terminal, Sealed 2.8 mm, 2.5 - 4.0 mm² ( 14-12 AWG)
4550748 Wire Seal, 2.8 mm,  Wire Insul Dia. 1.2 - 2.1 mm, Red
4550747 Wire Seal, 2.8 mm,  Wire Insul Dia. 2.2 - 3.0 mm, Green
4550749 Wire Seal, 2.8 mm,  Wire Insul Dia. 3.1 - 3.7 mm, Gray
4550750 Cavity Plug, 2.8 mm, Black

MiniVal Fuses

MTA PN  DESCRIPTION
0705090  2A MiniVAL Fuse, Gray
0705100 3A MiniVAL Fuse, Voilet
0705101 4A MiniVAL Fuse, Pink
0705110 5A MiniVAL Fuse, Gray
0705120 7.5A MiniVAL Fuse, Gray
0705130 10A MiniVAL Fuse, Gray
0705140 15A MiniVAL Fuse, Gray
0705150 20A MiniVAL Fuse, Gray
0705160 25A MiniVAL Fuse, Gray
0705170 30A MiniVAL Fuse, Gray
We have 239 in stock. Volume Pricing Available
