MTA 0301325 Sealed Unival ATC Fuse Holder for 25A Fuse
by Connector ID
Sold out
Original price
$2.13
-
Original price
$2.13
Original price
$2.13
$2.13
-
$2.13
Current price
$2.13

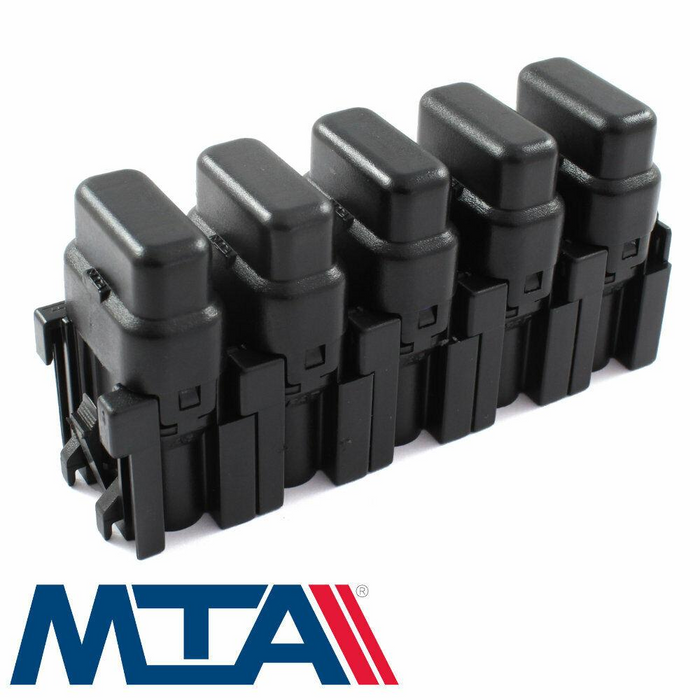

This sealed ATC fuse holder has a modular design. It can be used as singular or ganged assemblies with various MTA components. The holders are equipped with colored inserts to match the fuses' colors. The terminals are sealed with silicone wire seals, and the holder can be mounted on a vertical surface using various fixing plates or brackets.
MTA 0301325 ATC Fuse Holder 25 Amp Details:
| Product Type: | Sealed Unival Fuse Holder w/ cover |
| Minimum Order Qty: | 1 piece |
| Brand: | MTA |
| Part Number | 0301325 |
| Ref Part Number: | 0302325 |
| Number of cavities: | 2 |
| Design Layout: | 1 UniVal (ATC) Fuse |
| Product Family: | Fuse Holder |
| Included: | Cover + White Sec Lock (25A) |
| Sealed/Unsealed: | Sealed |
| Gender: | Female |
| Color: | Black |
| Compliance: | RoHS, REACH |
Associated Components:
The following components used with this fuse holder are sold separately
| MTA PN | DESCRIPTION |
| 0300392 | Mounting bracket -Double rosebud |
| 0300430 | Mounting bracket - Single Screw-down |
| 0300440 | Mounting bracket - Double Screw-down |
| 0300949 | Adapter clip for ganging multiple fuse holders |
| 1707920-L | 6.3 mm Terminal with Clip, 0.5 - 1.5 mm² (20,18,16 AWG) |
| 1707930-L | 6.3 mm Terminal with Clip, 2.0 - 3.0 mm² (14,12 AWG) |
| 1707940-L | 6.3 mm Terminal with Clip, 4.0- 6.0 mm² (10 AWG) |
| 4507770 | Wire Seal, 1.6 - 2.4 mm wire insul. dia, 18TXL, 16TXL, Orange |
| 4507771 | Wire Seal, 2.6 - 3.4 mm wire insul. dia, 14TXL, 12TXL, Yellow |
UniVal Fuses
| DESCRIPTION | MTA PN |
| 25A UniVal Fuse, White | 0710360 |
Fuse Holder Kits
These kits include:
- Unival fuse holder, by selected fuse amperage rating - 1 piece
- Uni F630 terminals with clip - 3 pieces
- Wire Seal F630E WP - 3 pieces
- Fixing Plate for one M5 screw - 1 piece
- Unival Fuse, by selected fuse amperage rating - 1 piece
| Part Number | Description |
| 0301305KIT | 5 Amp Sealed fuse holder kit |
| 0301310KIT | 10 Amp Sealed fuse holder kit |
| 0301315KIT | 15 Amp Sealed fuse holder kit |
| 0301320KIT | 20 Amp Sealed fuse holder kit |
| 0301325KIT | 25 Amp Sealed fuse holder kit |
| 0301330KIT | 30 Amp Sealed fuse holder kit |
