MTA 0301053 Sealed Power Distribution Unit for 1 MidiVAL and 1 MegaVAL

by MTA
Original price $30.25 - Original price $30.25
Original price
$30.25
$30.25 - $30.25
Current price $30.25

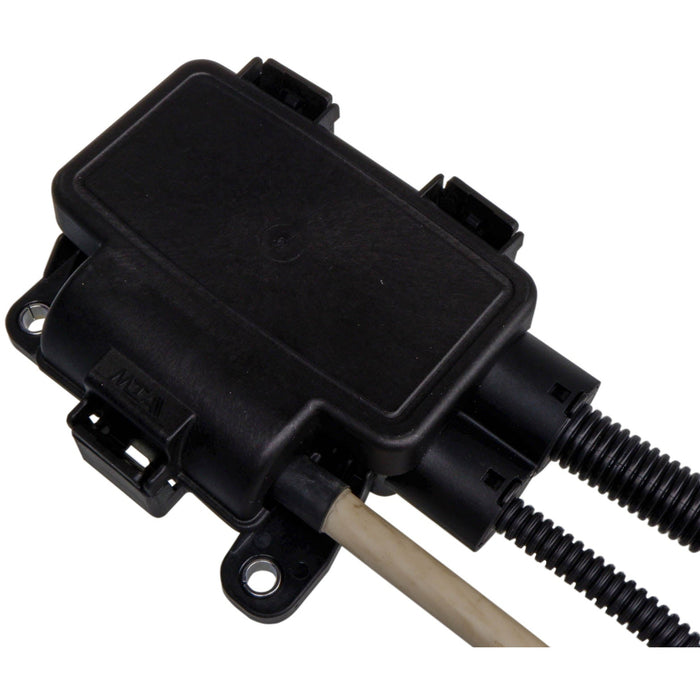

A waterproof fuse holder for one (1) MegaVAL and one (1) MidiVAL.  This version includes a cover protect the fuses and the feed stud.

Specifications:
Product Type:  Waterproof MegaVAL + MididVAL Fuse Holder with cover
Minimum Order Qty:  1 piece
Brand: MTA
Part Number 0301053
Fuse Type: MegaVal/PowerVal and MidiVal
Sealed/Unsealed: Unsealed
Compliance:  RoHS, REACH

Associated Components:

The following components used with this connection system and are sold separately

DESCRIPTION MTA PN
Terminal, M5 Ring, MIDI, 6.0 - 8.0 mm² (8 AWG) 1705715-L
Terminal, M5 Ring, MIDI, 10.0 - 20.0 mm² (4-6 AWG) 1705855-L
Cable Lug, M8 Stud, 16.0 mm² (6 AWG) 1605100
Cable Lug, M8 Stud, 25.0 mm² (4 AWG) 1605010
Terminal, M8 Ring, MEGA, 25.0 - 40.0 mm² (1-2 AWG) 1609330
Terminal, M8 Ring, MEGA, 50.0 - 70.0 mm² (0 - 00 AWG) 1607510
Seal, MIDI Cavity, 2.5 - 4.0 mm², Green (12 AWG) 0300456
Seal, MIDI Cavity, 6.0 - 8.0 mm², Blue (8 AWG) 0300457
Seal, MIDI Cavity, 10.0 mm²,  Yellow  0300463
Seal, MIDI Cavity, 16.0 mm², Red (6 AWG)  0300458
Cavity Plug, MIDI Cavity, Natural 0300459
Seal, MEGA Cavity, 16.0 - 25.0 mm², Yellow (4 AWG)  0300460
Seal, MEGA Cavity, 35.0 mm², Green  (2 AWG) 0350558
Cavity Plug, MEGA Cavity, Natural  0301204
MIDI Conduit Retainer for NW4.5 Conduit, Black, PBT 0300454
MIDI Conduit Retainer for NW7.5 Conduit, Black, PBT 0300452
MIDI Conduit Retainer for NW10 Conduit, Black, PBT 0300465
MEGA Conduit Retainer for NW12 Conduit, Black, PBT 0300455
MEGA Conduit Retainer for NW13 Conduit, Black, PBT 0300464
MEGA Conduit Retainer for NW14 Conduit, Black, PBT 0300557
MEGA Conduit Retainer for NW17 Conduit, Black, PBT 0301199


MegaVal Fuses
MTA PN DESCRIPTION
0701100 100 Amp, MegaVAL, Tin Plated Zinc, Yellow
0711100 100 Amp, MegaVAL, Tin Plated Copper, Yellow
0701125 125 Amp, MegaVAL, Tin Plated Zinc, Green
0711125 125 Amp, MegaVAL, Tin Plated Copper, Green
0701150 150 Amp, MegaVAL, Tin Plated Zinc, Orange
0711150 150 Amp, MegaVAL, Tin Plated Copper, Orange
0701175 175 Amp, MegaVAL, Tin Plated Zinc, White
0711175 175 Amp, MegaVAL, Tin Plated Copper, White
0701200 200 Amp, MegaVAL, Tin Plated Zinc, Blue
0711200 200 Amp, MegaVAL, Tin Plated Copper, Blue
0701225 225 Amp, MegaVAL, Tin Plated Zinc, Beige
0711225 225 Amp, MegaVAL, Tin Plated Copper, Beige
0701250 250 Amp, MegaVAL, Tin Plated Zinc, Pink
0711250 250 Amp, MegaVAL, Tin Plated Copper, Pink
0701300 300 Amp MegaVAL, Tin Plated Copper, Grey
0701401 400 Amp, MegaVAL, Tin Plated Copper, Violet
0701600 500 Amp, MegaVAL, Tin Plated Copper, Brown

    MidiVAL Fuses
    MTA PN DESCRIPTION
    0702030 30 Amp, MidiVAL, Orange, Tin Plated Zinc Alloy
    0702040 40 Amp, MidiVAL, Green, Tin Plated Zinc Alloy
    0702050 50 Amp, MidiVAL,  Red, Tin Plated Zinc Alloy
    0702060 60 Amp, MidiVAL, Yellow, Tin Plated Zinc Alloy
    0702070 70 Amp, MidiVAL, Brown, Tin Plated Zinc Alloy
    0702080 80 Amp, MidiVAL, White, Tin Plated Zinc Alloy
    0702100 100 Amp, MidiVAL, Blue, Tin Plated Zinc Alloy
    0702125 125 Amp MidiVAL, Pink, Tin Plated Zinc Alloy
    0708030 30 Amp, MidiVAL, Orange, Tin Plated Cu Alloy
    0708040 40 Amp, MidiVAL, Green, Tin Plated Cu Alloy
    0708050 50 Amp MidiVal, Red, Tin Plated Cu Alloy
    0708060 60 Amp, MidiVAL, Yellow, Tin Plated Cu Alloy
    0708070 70 Amp, MidiVAL, Brown, Tin Plated Cu Alloy
    0708080 80 Amp, MidiVAL, White, Tin Plated Cu Alloy
    0708100 100 Amp, MidiVAL, Blue, Tin Plated Cu Alloy
    0708125 125 Amp MidiVAL, Pink, Tin Plated Cu Alloy
    0708150 150 Amp MidiVAL, Grey, Tin Plated Cu Alloy
    0708175 175 Amp MidiVAL,  Light Brown, Tin Plated Cu Alloy
    0708200 200 Amp MidiVAL, Violet, Tin Plated Cu Alloy
