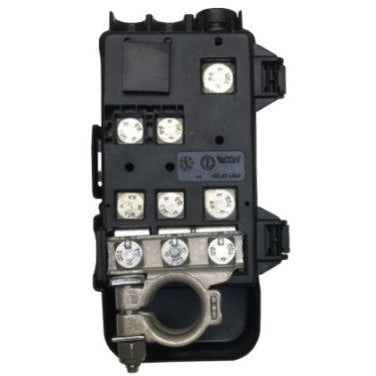

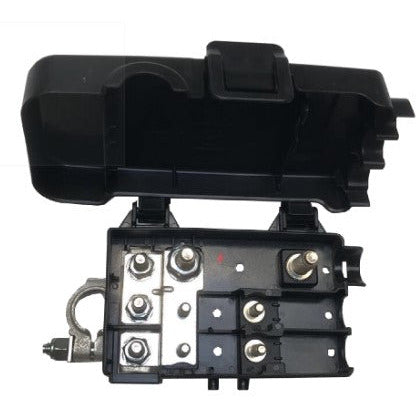

MTA 0300839 Pre-Mounted Housing for 2 MidiVAL and 1 CAL/MegaVAL with Battery Terminal

by MTA
Original price $20.64 - Original price $20.64
Original price
$20.64
$20.64 - $20.64
Current price $20.64
Specifications:
Product Type:  Power Distribution Unit, Direct Battery
Minimum Order Qty:  1 piece
Brand: MTA
Part Number 0300839
Fuse Type: MidiVal & MegaVal
Sealed/Unsealed: Unsealed
Compliance:  RoHS, REACH

Associated Components:

The following components used with this connection system and are sold separately

DESCRIPTION MTA PN
Terminal, M5, MIDI Ring, 10.0 - 20.0 mm² 1708250-L
Terminal, M5, MIDI Ring, 25.0 - 35.0 mm² 1605905-L
Terminal, M8, MEGA Ring, 10.0 - 20.0 mm² 1708110-L
Terminal, M8, MEGA Ring, 25.0 - 35.0 mm² 1708120-L
MidiVAL Fuses
MTA PN DESCRIPTION
0702030 30 Amp, MidiVAL, Orange, Tin Plated Zinc Alloy
0702040 40 Amp, MidiVAL, Green, Tin Plated Zinc Alloy
0702050 50 Amp, MidiVAL,  Red, Tin Plated Zinc Alloy
0702060 60 Amp, MidiVAL, Yellow, Tin Plated Zinc Alloy
0702070 70 Amp, MidiVAL, Brown, Tin Plated Zinc Alloy
0702080 80 Amp, MidiVAL, White, Tin Plated Zinc Alloy
0702100 100 Amp, MidiVAL, Blue, Tin Plated Zinc Alloy
0702125 125 Amp MidiVAL, Pink, Tin Plated Zinc Alloy
0708030 30 Amp, MidiVAL, Orange, Tin Plated Cu Alloy
0708040 40 Amp, MidiVAL, Green, Tin Plated Cu Alloy
0708050 50 Amp MidiVal, Red, Tin Plated Cu Alloy
0708060 60 Amp, MidiVAL, Yellow, Tin Plated Cu Alloy
0708070 70 Amp, MidiVAL, Brown, Tin Plated Cu Alloy
0708080 80 Amp, MidiVAL, White, Tin Plated Cu Alloy
0708100 100 Amp, MidiVAL, Blue, Tin Plated Cu Alloy
0708125 125 Amp MidiVAL, Pink, Tin Plated Cu Alloy
0708150 150 Amp MidiVAL, Grey, Tin Plated Cu Alloy
0708175 175 Amp MidiVAL,  Light Brown, Tin Plated Cu Alloy
0708200 200 Amp MidiVAL, Violet, Tin Plated Cu Alloy
MegaVal Fuses
DESCRIPTION MTA PN
100A MegaVal, Yellow, Tin Plated Zinc  0701100
125A MegaVal, Green, Tin Plated Zinc  0701125
150A MegaVal, Orange, Tin Plated Zinc  0701150
175A MegaVal, White, Tin Plated Zinc  0701175
200A MegaVal, Blue, Tin Plated Zinc  0701200
225A MegaVal, Light Brown, Tin Plated Zinc  0701225
250A MegaVal, Pink, Tin Plated Zinc 0701250
100A MegaVal, Yellow, Tin Plated Copper 0711100
125A MegaVal, Green, Tin Plated Copper 0711125
150A MegaVal, Orange, Tin Plated Copper 0711150
175A MegaVal, White, Tin Plated Copper 0711175
200A MegaVal, Blue, Tin Plated Copper 0711200
225A MegaVal, Light Brown, Tin Plated Copper 0711225
250A MegaVal, Pink, Tin Plated Copper 0711250
300A MegaVal, Gray, Tin Plated Copper 0711300
400A MegaVal, Violet, Tin Plated Copper 0701401
500A MegaVal, Brown, Tin Plated Copper 0701600
PowerVAL Fuses
DESCRIPTION MTA PN
CAL.1 PowerVAL, Gray, Tin Plated Zinc Alloy 0701350
CAL.2 PowerVAL, Black, Tin Plated Zinc Alloy 0701400
CAL.3 PowerVAL,  Red, Tin Plated Copper 0701450
CAL.4 PowerVAL, Brown, Tin Plated Copper 0701500
CAL.5 PowerVAL, Wheat Gray, Tin Plated Copper 0701700
We have 37 in stock. Volume Pricing Available
