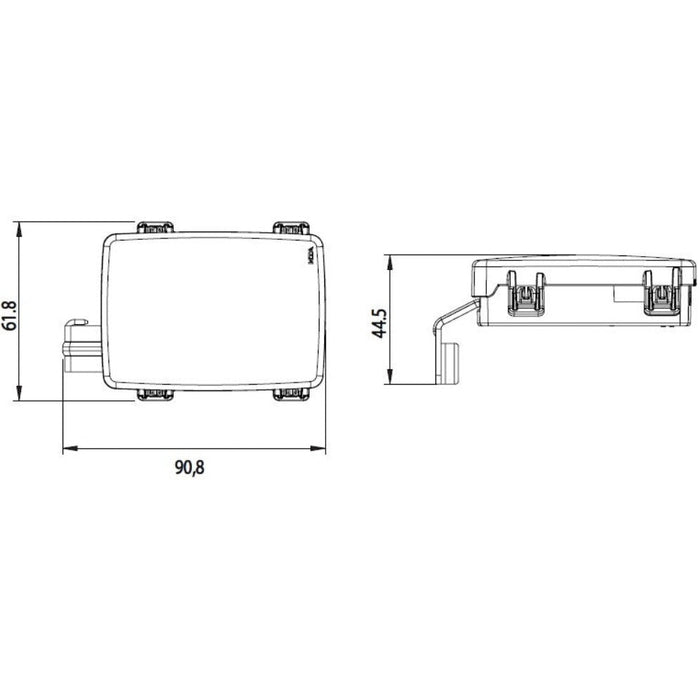

Product Type: | Power Distribution Unit - 3 MidiVal fuses |
Minimum Order Qty: | 1 piece |
Brand: | MTA |
Part Number | 0300468 |
Stud Size: | M5 |
Fuse Type: | MidiVal |
Sealed/Unsealed: | Unsealed |
Hardware Included: | Bus Bar & Cover: Washer & nuts |
Compliance: | RoHS, REACH |
Associated Components:
The following components used with this connection system and are sold separately
DESCRIPTION | MTA PN |
Terminal, M8 Ring, MEGA G90, 10.0 - 20.0 mm² | 1708250-L |
Terminal, M8 Ring, MEGA G90, 25.0 - 35.0 mm² | 1605905-L |
MTA PN | DESCRIPTION |
0702030 | 30 Amp, MidiVAL, Orange, Tin Plated Zinc Alloy |
0702040 | 40 Amp, MidiVAL, Green, Tin Plated Zinc Alloy |
0702050 | 50 Amp, MidiVAL, Red, Tin Plated Zinc Alloy |
0702060 | 60 Amp, MidiVAL, Yellow, Tin Plated Zinc Alloy |
0702070 | 70 Amp, MidiVAL, Brown, Tin Plated Zinc Alloy |
0702080 | 80 Amp, MidiVAL, White, Tin Plated Zinc Alloy |
0702100 | 100 Amp, MidiVAL, Blue, Tin Plated Zinc Alloy |
0702125 | 125 Amp MidiVAL, Pink, Tin Plated Zinc Alloy |
0708030 | 30 Amp, MidiVAL, Orange, Tin Plated Cu Alloy |
0708040 | 40 Amp, MidiVAL, Green, Tin Plated Cu Alloy |
0708050 | 50 Amp MidiVal, Red, Tin Plated Cu Alloy |
0708060 | 60 Amp, MidiVAL, Yellow, Tin Plated Cu Alloy |
0708070 | 70 Amp, MidiVAL, Brown, Tin Plated Cu Alloy |
0708080 | 80 Amp, MidiVAL, White, Tin Plated Cu Alloy |
0708100 | 100 Amp, MidiVAL, Blue, Tin Plated Cu Alloy |
0708125 | 125 Amp MidiVAL, Pink, Tin Plated Cu Alloy |
0708150 | 150 Amp MidiVAL, Grey, Tin Plated Cu Alloy |
0708175 | 175 Amp MidiVAL, Light Brown, Tin Plated Cu Alloy |
0708200 | 200 Amp MidiVAL, Violet, Tin Plated Cu Alloy |
