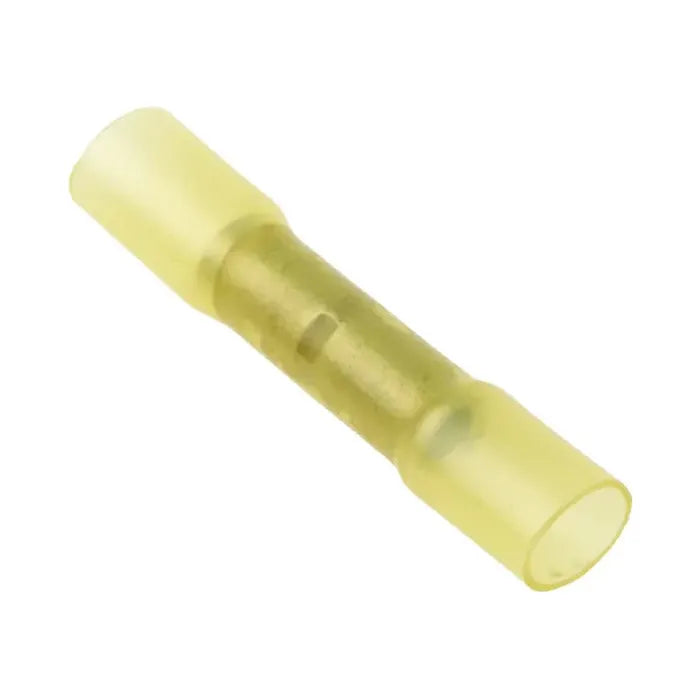

CIDHT5-20NY Drop in for Molex 19164-0056 Perma-Seal Sealed Heat Shrink Butt Splice , 12-10 AWG, Yellow
by Connector ID
Original price
$0.85
-
Original price
$0.85
Original price
$0.85
$0.85
-
$0.85
Current price
$0.85
CIDHT5-20NY is a drop in replacement for Molex 19164-0056 Perma-Seal Butt Splice.. This heat shrinkable butt splice contains adhesive inside the tubing to seal the splice.
19164-0056 Butt Splice Details:
| Product Type: | Heat Shrinkable Butt Splice |
| Minimum Order Qty: | 1 piece |
| Brand: | Connector ID |
| Part Number | CIDHT5-20NY |
| Drop-in Replacement for: | Molex |
| Product Family: | Heat Shrink Terminals |
| Wire Size AWG: | 12 - 10 AWG |
| Wire Size Metric: | 4.0 - 6.0 mm² |
| Rated Amperage 12 AWG: | 35 amps |
| Rated Amperage 10 AWG: | 50 amps |
| Sealed/Unsealed: | Sealed |
| Sleeve Material: | Nylon |
| Sleeve Color: | Yellow |
| Temperature Range: | -55 to +105ᵒ C |
| Shrink Temperature: | 180ᵒ C |
| Dimensions: | d2: 1.614 mm / L: 41.0 mm |
| Compliance: | RoHS, REACH |
Reference PN:
| Part Number: | 19164-0056 | Molex |
Associated Terminal Family:
The following the other terminal wire size ranges in this famliy.
| CIDHT0.5-NY | Heat Shrink Butt Splice 0.20 - 0.35 mm² (26-22 AWG), Clear |
| CIDHT2-NY | Heat Shrink Butt Splice 1.5 - 2.5 mm² (16-14 AWG), Blue |
| CIDHT8-NY | Heat Shrink Butt Splice 8.0 mm² (8 AWG), Red |
