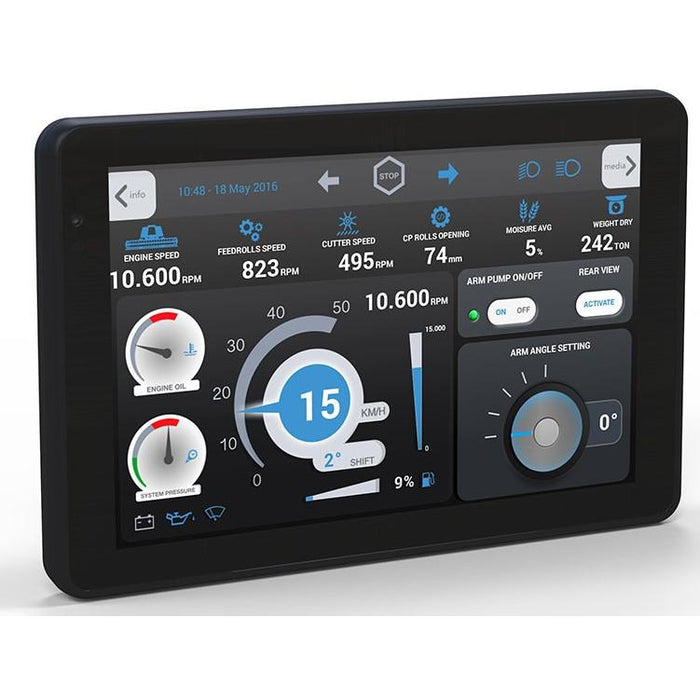

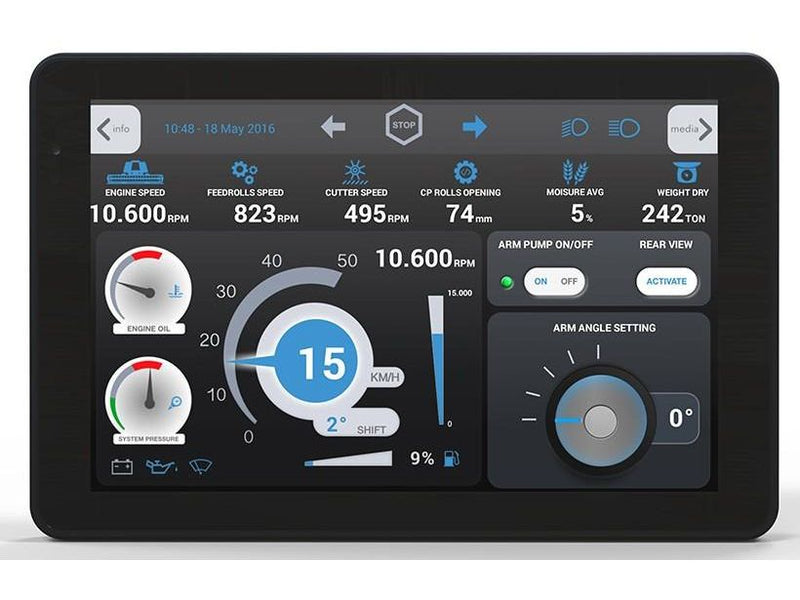

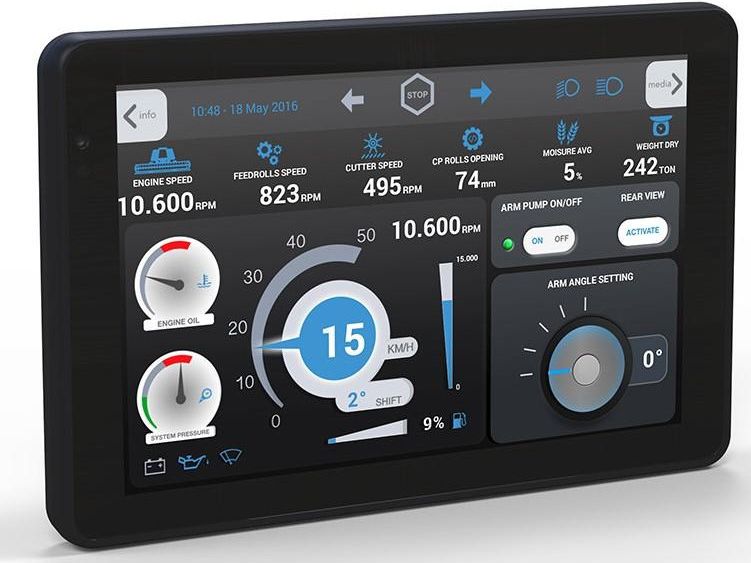

Leonardo 12.1 inch Display

by MTA
$0.00
We have 0 in stock. Lead time: Contact Us

MTA's Leonardo is an off-the-shelf 12.1 inch TFT Touchscreen whose software can be easily customized by the customer according to the specific needs of the off-highway machines into which it is installed. Leonardo can be used as a stand-alone device in which it also acts as a dashboard and it can also be incorporated in an electronics system that includes other displays or dashboards. The software can be customized using Android Studio, a software environment that is aimed at the most expert programmer and allows customers to develop complex refined graphics. A proprietary Android plug-in called Speedy Creator makes programming as user-friendly as possible, making available specific functions and graphics to allow quick, simple development.

  • Product Type: Leonardo Display
  • MTA PN: Leonardo
  • Brand: MTA S.p.A.
  • Min Order Qty: 1 unit
  • Dimensions:  316 mm x 205 mm x 46 mm
  • Display: 12.1 " Color TFT LCD 1280 x 800 pixel x 262K colors with optical bonding
  • Display: Portrait and landscape model
  • Display Features:
    • Front glass with anti-reflection and anti-fingerprint treatment
    • Multitouch Screen (up to 10 touchpoints)
  • Inputs: 10
  • Analog Video Inputs: 2
  • Outputs: 2 + 1 Vref 5 Vdc output
  • Power Supply: 12 V (9-16 V) or 24V (18-32 V)
  • CAN Interfaces: 2
  • LIN  Interface: 1
  • Ethernet Interfaces: 2
  • USB Slots: 2
  • RS232 Interfaces: 1
  • Bluetooth and WiFi will be optional and available by 2020
  • Additional Features:
    • Loudspeaker mono
    • Audio in and Audio out
    • Real-Time Clock
    • Ambient light Sensor
  • Connector: 34 way TE Superseal & 2 mini BNC
  • Andriod and Linux based device
  • Programming System: Android Studio
