GEP PDM-R4A01 Sealed Power Distribution Module, 48 way, 280-footprint to house mini fuses and micro-relays
Sold out
Original price
$17.05
-
Original price
$17.05
Original price
$17.05
$17.05
-
$17.05
Current price
$17.05

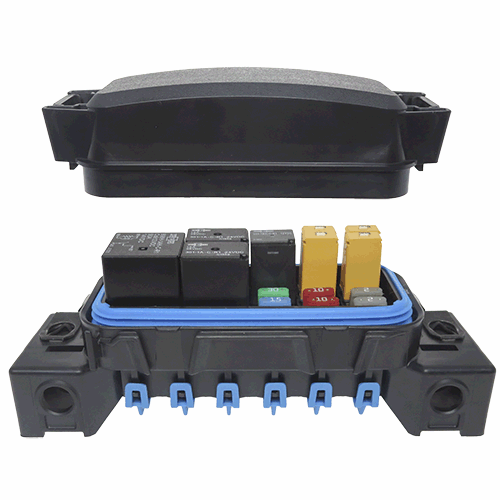

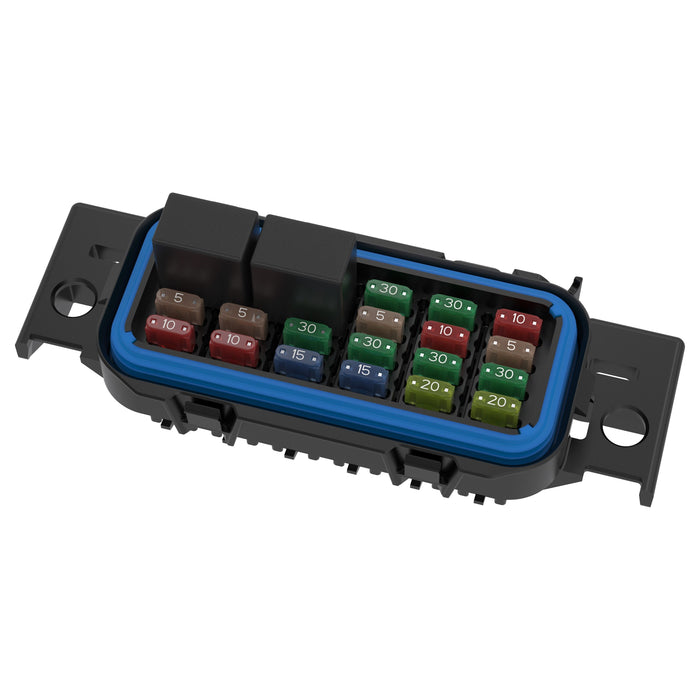

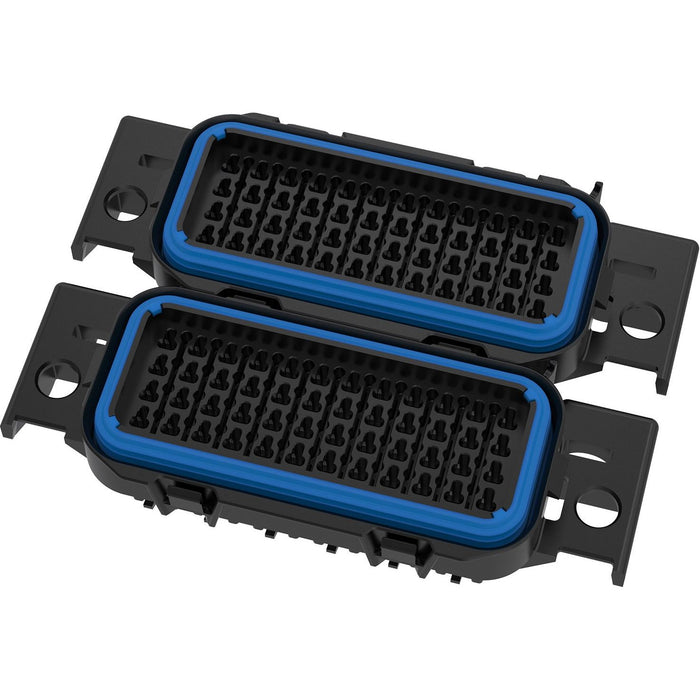

GEP Power Products PDM-R4A01 is a sealed, 48-cavity 280-footprint module that houses mini-fuses, diodes, and 280-footprint relays. These power distribution modules can be ganged or stacked to create a custom-sealed power distribution center.
GEP PDM-R4A01 Sealed Minifuse and/or Micro-Relays Details:
| Product Type: | Power distribution module with interface seal |
| Minimum Order Qty: | 1 piece |
| Part Number | PDM-R4A01 |
| Number of cavities: | 48 |
| Product Family: | 280 Series |
| Sealed/Unsealed: | Sealed IP67 |
| Fuse Type: | Mini-Fuse |
| Relay Type: | 280 Micro-Relays |
| Flammability | UL94 - V-0 |
| Max Voltage: | 58 volts |
| Color: | Black |
| Compliance: | RoHS, REACH |
| Product Drawing: |
Assoc Components:
Associated components are sold separately
| Description | Part Number |
| Secondary Lock (6 Required) | PDM-TT1 |
| Cover with GEP Logo | PDM-TC |
| Cover, Plain without GEP Logo | PDM-TCP |
| Tether for attaching the cover to the PDM | PDM-SCT |
| M6 PDM Mounting Clips (optional 2 required) | PDM-TMC |
Terminal & Seals
Associated terminals, seals, and cavity plugs are sold separately.
| Terminals and Wire Seals | Part Number |
| Terminal, 0.8 -1.0 mm², (12 AWG) Tin Plated | CID400-2.8-FS2 |
| Terminal, 2.0 - 3.0 mm², (14 - 12 AWG) Tin Plated | CID400-2.8-FS3 |
| Terminal, 5.0 mm², (10 AWG) Tin Plated | CID400-2.8-FS4 |
| Wire Seal, 1.6-2.4 mm wire insulation. dia., Violet, Silicone | CID1389 |
| Wire Seal, 2.0 - 3.4 mm wire insul. dia., Green, Silicone | CID1143 |
| Wire Seal, 3.45 - 4.30 mm wire insul. dia., Blue, Silicone | CID1144 |
| Cavity Plug, Green, Silicone | CID1380 |
PDM Kit
Associated terminals, seals, and cavity plugs are sold separately.
| Part Number | Item Description | QTY | |
| PDM-R4A01-KIT | Kit Package | ||
| PDM-R4A01 | 48-way Base Module with Seal | 1 | |
| PDM-TCP | Plain Cover | 1 | |
| PDM-TT1 | Secondary Lock | 6 | |
| PDM-TMC | Clip-- M6-1.0 -U Spring | 2 |
