GEP PDM-R2EC1 Side Mount Sealed ISO MAXI Relay Module for 3 Maxi Relays
Sold out
Original price
$5.63
-
Original price
$5.63
Original price
$5.63
$5.63
-
$5.63
Current price
$5.63

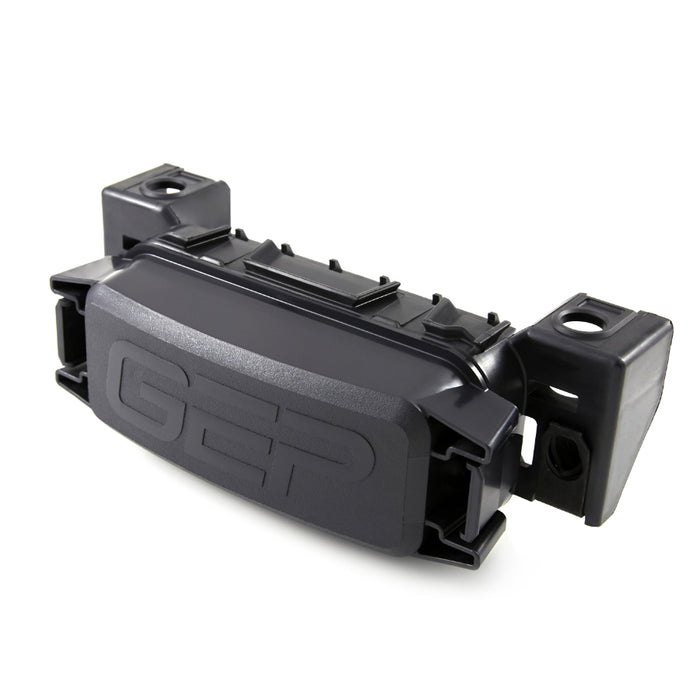

GEP Power Products PDM-R2EC1 is a sealed 15-cavity relay module that houses three (3) Maxi 70/80A) relays. These power distribution modules can be ganged or stacked to create a custom-sealed power distribution center.
GEP PDM-R2EC1 Sealed Maxi Relay Module Details:
| Product Type: | Fuse Holder |
| Minimum Order Qty: | 1 piece |
| Part Number | PDM-R2EC1 |
| Number of cavities: | 15 |
| Product Family: | 6.3 Series + 9.5 Series |
| Sealed/Unsealed: | Sealed |
| Relay Type: | Maxi ISO (70A/80A) |
| Gender: | Female |
| Color: | Black |
| Compliance: | RoHS, REACH |
| PDM Assembly Kit: |
Associated Components:
Associated components are sold separately
| Cover with slot for mounting bracket | FRH-A12-C |
| Terminal Position Assurance (TPA) 1 reqd per holder | SC38-2008A-B003 |
| Cover Position Assurance (CPA) | FRH-A-CPA |
| Flat mounting bracket with anti-rotation, stainless steel | FRH-A12-MB-A2 |
| Flat mounting bracket without anti-rotation, stainless steel | FRH-A12-MB-B2 |
Associated Terminals & Wire Seals:
| Terminal, MP 630, 1.0 - 2.0 mm², (16-14 AWG) Tin Plated Cu Alloy | CID400-6.3-FS2 |
| Terminal, MP 630, 3.0 - 5.0 mm², (12-10 AWG) Tin Plated Cu Alloy | CID400-6.3-FS3 |
| Wire Seal, MP 630, wire insulation dia. 2.01 - 2.85 mm, (16-14 AWG) White | CID4803 |
| Wire Seal, MP 630, wire insulation dia. 2.81 - 3.76 mm, (12 AWG) Red | CID4804 |
| Wire Seal, MP 630, wire insulation dia. 3.61 - 4.50 mm, (10 AWG) Purple | CID4805 |
| Cavity Plug, MP 630, Silicone, Gray | CID4807 |
| Terminal, Ducon 9.5, 4.0-6.0 mm², (10 AWG), Tin Plated Cu Alloy | CID400-9.5-FS3 |
| Terminal, Ducon 9.5, 10.0 mm², (8 AWG), Tin Plated Cu Alloy | CID900-9.5-FS4 |
| Wire Seal, Ducon 9.5, wire insulation Dia. 3.4-4.3 mm (10 AWG) | CID4001 |
| Wire Seal, Ducon 9.5, wire insulation Dia. 4.6-5.3 mm (8 AWG) | PDM-TWS-D4 |
| Cavity Plug, Ducon 9.5, Green | CID4808 |
Associated Fuses:
| DESCRIPTION | MTA PN |
| 1A UniVal Fuse, Black | 0700380 |
| 2A UniVal Fuse, Gray | 0700390 |
| 3A UniVal Fuse, Violet | 0710300 |
| 4A UniVal Fuse, Pink | 0700301 |
| 5A UniVal Fuse, Light Brown | 0710310 |
| 7.5A UniVal Fuse. Brown | 0710320 |
| 10A UniiVal Fuse, Red | 0710330 |
| 15A UniVal Fuse, Blue | 0710340 |
| 20A Unival Fuse, Yellow | 0710350 |
| 25A Unival Fuse, White | 0710360 |
| 30A Unival Fuse, Green | 0710370 |
| 40 Unival Fuse, Orange | 0710375 |

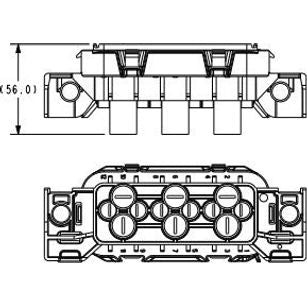

Sales Drawing:
Drawing
