GEP JB750-5 Insulated Stud Junction Block, 4 Position

Original price $22.15 - Original price $22.15
Original price
$22.15
$22.15 - $22.15
Current price $22.15

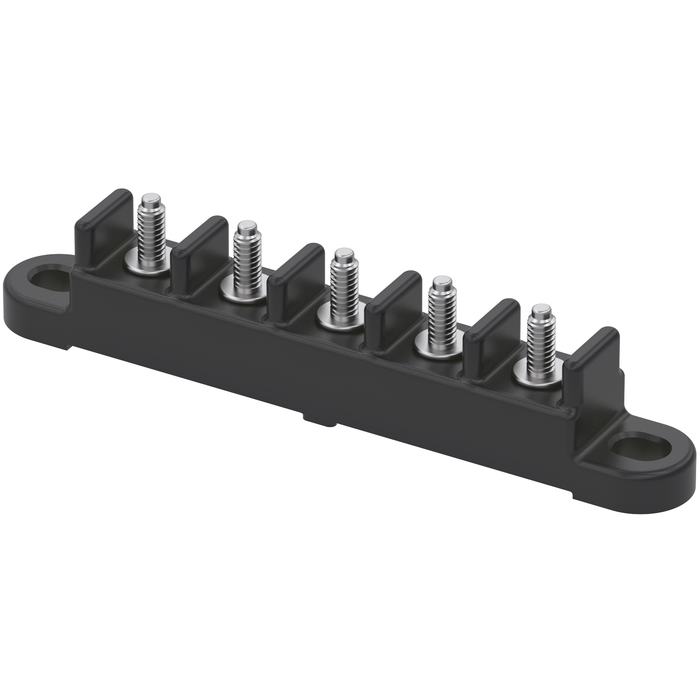

GEP's insulated Stud junction blocks are ideal for discrete or bussed wiring applications in commercial vehicles. The JB750-5 is a 5 position stud block.

GEP JB750-4 Stud Junction Block Details:

Product Type:  Power Pass Through, Stud
Minimum Order Qty:  1 piece
Part Number JB750-5
Number of Studs: 5
Stud Size:  #10-24
Temperature Rating:  120 ⁰C (250 ⁰F)
Electrical Rating:  30 Amps, 300 V
Materials:
Body: Nylon 66
Studs: #10 -24, steel with zinc plating
Compliance:  RoHS, REACH
Sales Drawing:  JB750-XX

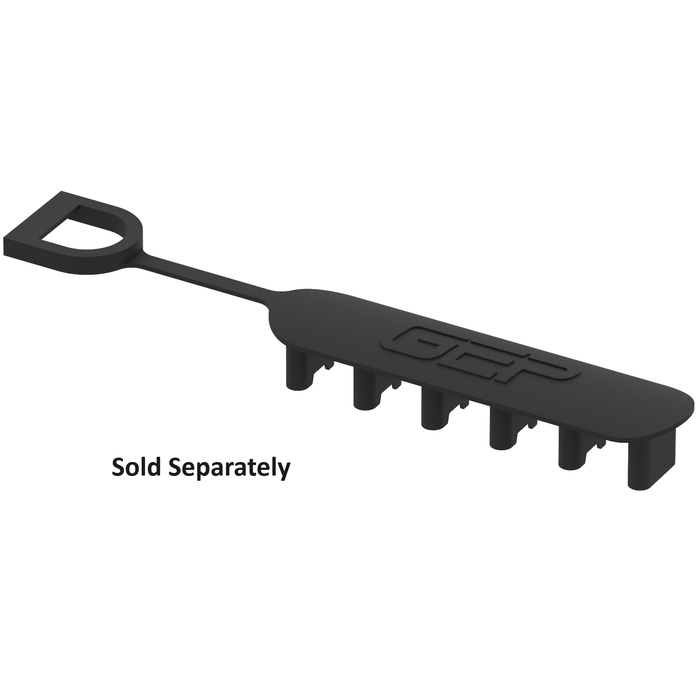

Optional Cover:

Optional Bus Bars:

The following bars are used with this terminal block and are sold separately.

2 position Bus Bar
3 position Bus Bar
We have 0 in stock. Volume Pricing Available
Description

GEP's insulated Stud junction blocks are ideal for discrete or bussed wiring applications in commercial vehicles. The JB750-5 is a 5 position stud block.

GEP JB750-4 Stud Junction Block Details:

Product Type:  Power Pass Through, Stud
Minimum Order Qty:  1 piece
Part Number JB750-5
Number of Studs: 5
Stud Size:  #10-24
Temperature Rating:  120 ⁰C (250 ⁰F)
Electrical Rating:  30 Amps, 300 V
Materials:
Body: Nylon 66
Studs: #10 -24, steel with zinc plating
Compliance:  RoHS, REACH
Sales Drawing:  JB750-XX
Optional Cover:
Optional Bus Bars:

The following bars are used with this terminal block and are sold separately.

2 position Bus Bar
3 position Bus Bar
