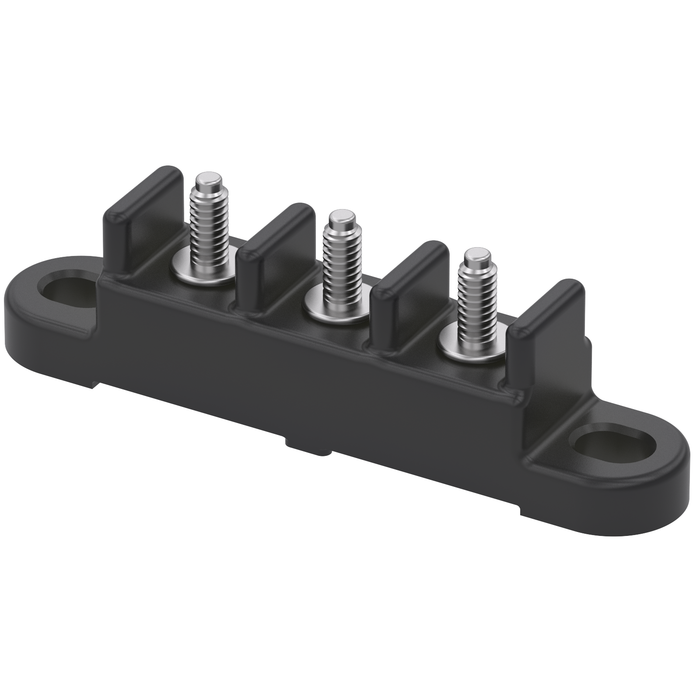

GEP JB750-3 Insulated Stud Junction Block, 3 Position
Original price
$22.15
-
Original price
$22.15
Original price
$22.15
$22.15
-
$22.15
Current price
$22.15
GEP's insulated Stud junction blocks are ideal for discrete or bussed wiring applications in commercial vehicles. The JB750-3 is a 3 position stud block.
GEP JB750-3 Stud Junction Block Details:
| Product Type: | Power Pass Through, Stud |
| Minimum Order Qty: | 1 piece |
| Part Number | JB750-3 |
| Number of Studs: | 3 |
| Stud Size: | #10-24 |
| Temperature Rating: | 120 ⁰C (250 ⁰F) |
| Electrical Rating: | 30 Amps, 300 V |
| Materials: | |
| Body: | Nylon 66 |
| Studs: | #10-24, steel with zinc plating |
| Compliance: | RoHS, REACH |
| Sales Drawing: | JB750-XX |

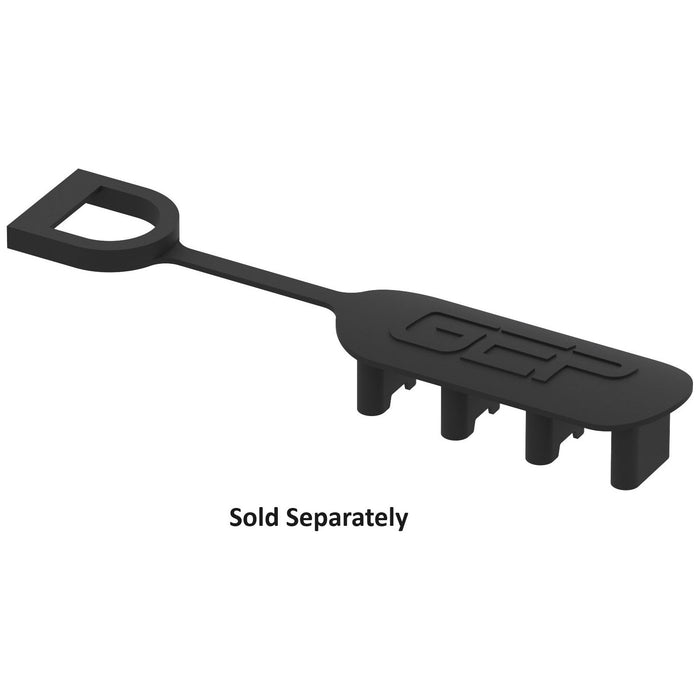

| Optional Cover: | JB750-3-C |
Optional Bus Bars:
The following bars are used with this terminal block and are sold separately.
| 2 position Bus Bar | JB750-2-B |
| 3 position Bus Bar | JB750-3-B |
