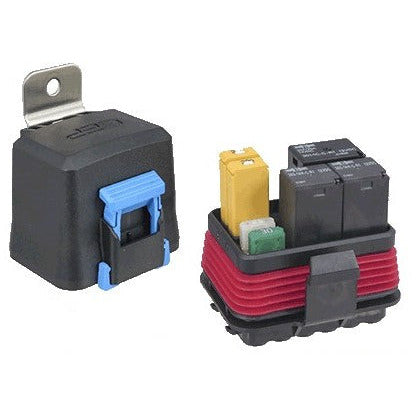

GEP FRH-A24 Sealed 24 Way 280 Footprint Fuse-Relay Holder
Original price
$5.10
-
Original price
$5.10
Original price
$5.10
$5.10
-
$5.10
Current price
$5.10
The GEP Power Products FRH Series PDMs are designed to meet the needs of demanding environments, focusing on compact size, great sealing performance, versatile mounting options, and a range of housings, covers, and accessories.
| Product Type: | Fuse - Relay Holder |
| Minimum Order Qty: | 1 piece |
| Part Number | FRH-A24 |
| Number of cavities: | 24 |
| Product Family: | 2.8 Series |
| Sealed/Unsealed: | Sealed |
| Fuse Type: | Mini fuse |
| Relay Type: | 280 Micro relay and/or Half Micro relay |
| Gender: | Female |
| Color: | Black |
| Compliance: | RoHS, REACH |
Associated Components:
| Part No. | Description |
| FRH-A24-C | Cover with a slot for mounting bracket |
| FRH-A12-T | Terminal Position Assurance (TPA) 2 reqd |
| FRH-A-CPA | Cover Position Assurance (CPA) |
| FRH-A12-MB-A2 |
Flat mounting bracket with anti-rotation, stainless steel |
| FRH-A12-MB-B2 | Flat mounting bracket, without anti-rotation, stainless steel |
Terminals & Wire Seals:
| Part No. | Description |
| CID400-2.8-FS2 | Terminal, MP 280, 0.5 - 1.0 mm², Tin Plated Cu Alloy |
| CID400-2.8-FS3 | Terminal, MP 280, 2.0 - 3.0 mm², Tin Plated Cu Alloy |
| CID1389 | Wire Seal, wire insulation dia. 1.6 - 2.4 mm, Violet (20-18 AWG) |
| CID1143 | Wire Seal, wire insulation dia. 2.0 - 3.4 mm, Green (16-14 AWG) |
| CID1144 | Wire Seal, wire insulation dia. 2.9 - 3.85 mm, Blue (12 AWG) |
| CID1380 | Cavity Plug, Silicone, Green |
Fuses
| MTA PN | DESCRIPTION |
| 0705090 | 2A MiniVAL Fuse, Gray |
| 0705100 | 3A MiniVAL Fuse, Violet |
| 0705101 | 4A MiniVAL Fuse, Pink |
| 0705110 | 5A MiniVAL Fuse, Gray |
| 0705120 | 7.5A MiniVAL Fuse, Gray |
| 0705130 | 10A MiniVAL Fuse, Gray |
| 0705140 | 15A MiniVAL Fuse, Gray |
| 0705150 | 20A MiniVAL Fuse, Gray |
| 0705160 | 25A MiniVAL Fuse, Gray |
| 0705170 | 30A MiniVAL Fuse, Gray |
Relays
| Part No. | Description |
| AF-12DR-A | Half Micro, 4 pins, 1 Form A, 20A, 12VDC, Resistor |
| AJ-12DR-C | Full Micro, 5 pins, 1 Form C, 35A, 12VDC, |
