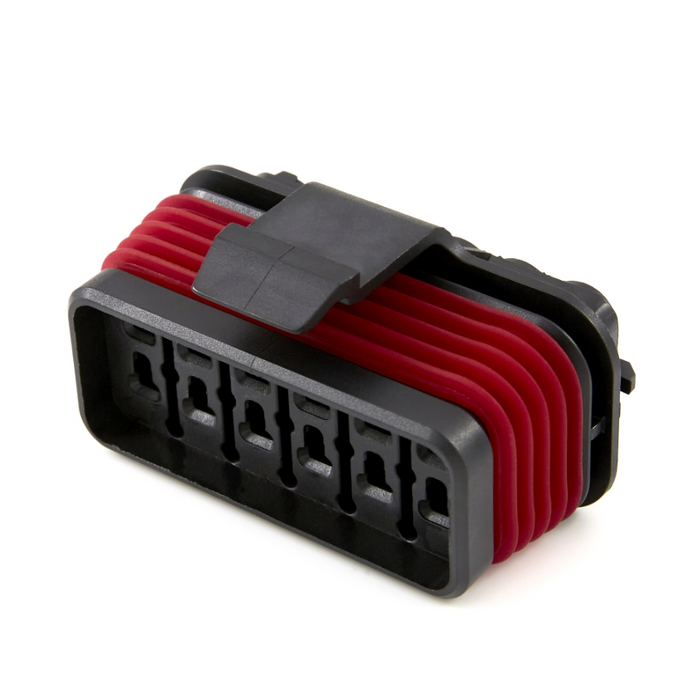

GEP FRH-A12 Sealed 12-Way 280 Footprint Fuse & Relay Holder

GEP FRH-A12 Sealed 12-Way 280 Footprint Fuse & Relay Holder

by GEP Power Products
Sold out
$6.95 - $6.95
$6.95
$6.95 - $6.95
$6.95
Product Type:  Fuse & Relay Holder
Minimum Order Qty:  1 piece
Part Number FRH-A12
Number of cavities: 12
Product Family: 2.8 Series
Sealed/Unsealed: Sealed
Fuse Type:  Mini fuse
Relay Type:  280 Micro relay and/or Half Micro relay
Gender: Female
Color: Black
Compliance:  RoHS, REACH
Associated Components
Part No. Description

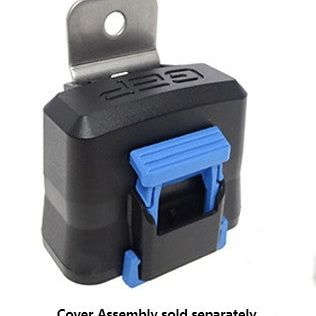

FRH-A12-C Cover with slot for mounting bracket
FRH-A12-CD-1 Double Side Mount Cover for 12-way FRH Fuse & Relay Module
FRH-A12-T Terminal Position Assurance (TPA)
FRH-A-CPA Connector Position Assurance
FRH-A12-MB-A2 Flat mounting bracket with anti-rotation, stainless steel
FRH-A12-MB-B2 Flat mounting bracket without anti-rotation, stainless steel
Terminals & Wire Seals
Part No. Description
CID400-2.8-FS2 Terminal, 0.5 - 1.0 mm², Tin Plated Cu Alloy | Aptiv 12077411
CID400-2.8-FS3 Terminal, 2.0 - 3.0 mm², Tin Plated Cu Alloy | Aptiv 12129493
CID1389 Wire Seal, wire insul. dia. 1.6 - 2.4 mm, Violet (20-18 TXL) | Aptiv 15324985
CID1143 Wire Seal, wire insul. dia. 2.0 - 3.4 mm, Green (16-14 TXL) | Aptiv 15324982
CID1144 Wire Seal, wire insul. dia. 2.9 - 3.85 mm, Blue (12 TXL) | Aptiv 15324981
CID1380 Cavity Plug, Silicone, Green | Aptiv 12010300
Fuses
Part No. Description
0705090 2-amp mini fuse, gray
0705100 3-amp mini fuse, violet
0705101 4-amp mini fuse, pink
0705110 5-amp mini fuse, beige
0705120 7.5-amp mini fuse, brown
0705130 10-amp mini fuse, red
0705140 15-amp mini fuse, blue
0705150 20-amp mini-fuse, yellow
0705160 25-amp mini fuse, white
0705170 30-amp mini fuse, green
Relays
Part No. Description
AF-12DR-A Half Micro, 4 pins, 1 Form A, 20A, 12VDC, Resistor
AJ-12DR-C Full Micro, 5 pins, 1 Form C, 35A, 12VDC, Resistor



We have 0 in stock. Volume Pricing Available
