CIDM64-ECU-CMC Aluminum ECU Module
Click or scroll to zoom
Tap or pinch to zoom
CIDM64-ECU-CMC Aluminum ECU Module
Click or scroll to zoom
Tap or pinch to zoom
CIDM64-ECU-CMC Aluminum ECU Module
Click or scroll to zoom
Tap or pinch to zoom
CIDM64-ECU-CMC Aluminum ECU Module
CIDM64-ECU-CMC Aluminum ECU Module

CIDM64-ECU-CMC Aluminum ECU Module

by Connector ID
$1.00
We have 0 in stock. Lead time: Contact Us
Description

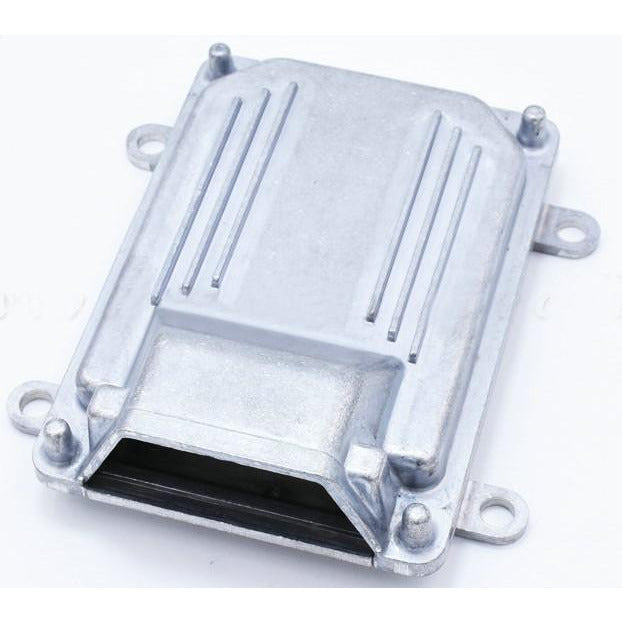

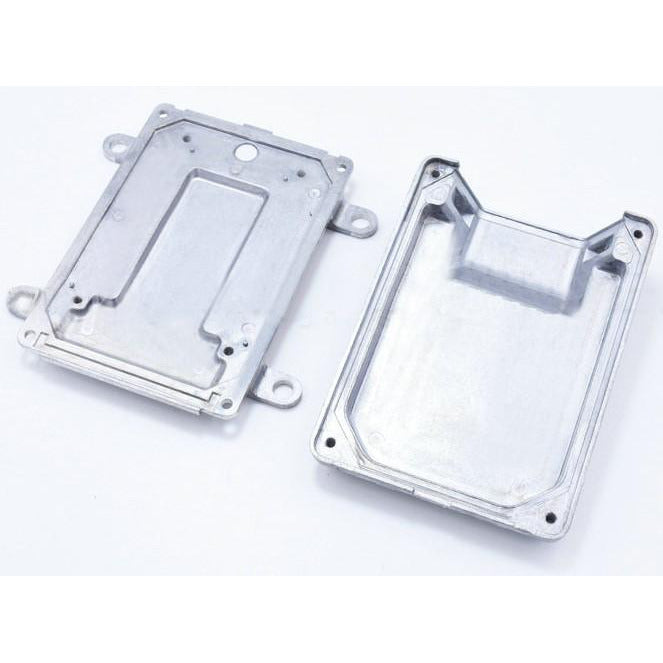

This sealed ECU enclosure is constructed of aluminum and for lower volume applications where flexibility is important.  The PCB header connector is sold separately from the enclosure and provides 64 sealed I/Os and has an adequate mix of power and signal circuits.

    • Product Family: ECU Enclosure with PCB Header
    • Minimum Order Qty: 1 piece
    • Brand: Connector ID
    • Connector ID  Part Number:  CID64B-ECU-CMC
    • Material; Aluminum
    • Operating Temp Range: -40℃~120℃

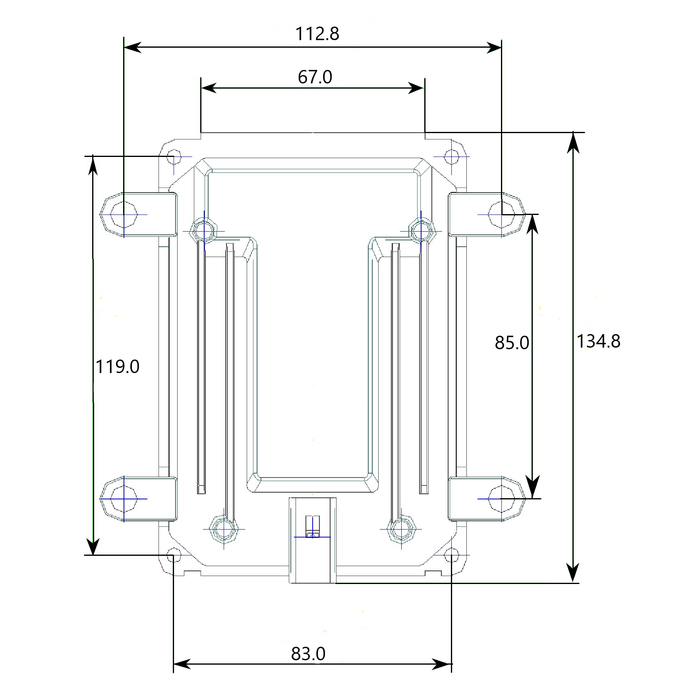

    • Dimensions: L: 134.8 mm / W: 112.8 mm / H: 46.1 mm
    • Number of I/O: 64 [ (56 x 0.64 mm) + (8 x 1.5 mm) ]

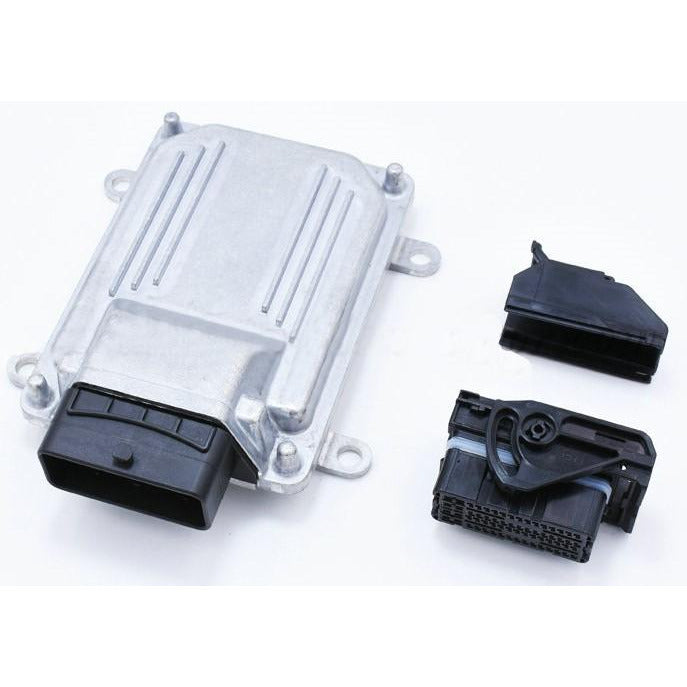

Associated PCB Header

Conn ID PN                        Description

CID7641-0.6-1.5-11         Conn Asm, 64M header, Mixed, Sealed, Black
