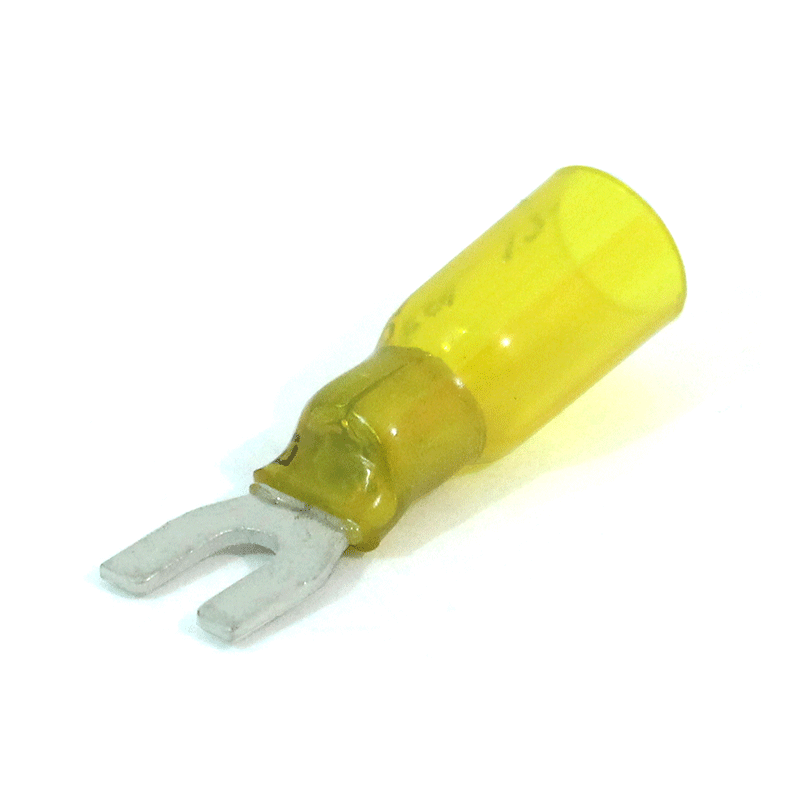

CID800-M5-FKS3 Equivlaent to Molex Fork Terminal 19164-0072

$0.38
We have 0 in stock. Volume Pricing Available

Specifications:

This polyolefin heat shrink has an adhesive lining that provides strain relief and against vibration in rugged environments, which insulates and protects electrical connections. It offers long-term performance, easy installation, and a low installed cost, which is more reliable than conventional crimp terminals.

    • Product Type: Fork Terminal with Heat Shrink
    • Minimum Order Qty:
    • Brand Equivalent: Molex
    • Part Number: CID800-M5-FKS3
    • Product Family: Heat Shrink Fork Terminal
    • Stud Size: M5, #10
    • Wire Size Range:  4.0 - 6.0 mm²
    • Sealed/Unsealed: Sealed
    • Material: Copper Alloy
    • Plating: Tin
    • Shrinkage Ratio: 3:1
    • Operating Temperature: -55⁰C - 125⁰C
    • Minimum Shrink Temperature: 180⁰C
    • Materials:
      • Heat Shrink: Polyolefin
      • Terminal Body: Tin Plated Copper
    • Meets UL224

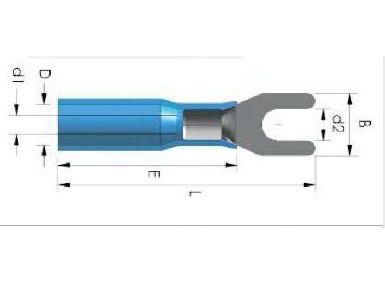

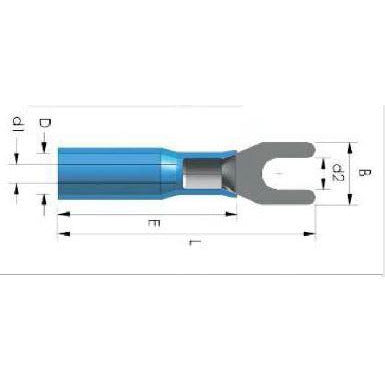

    • Dimensions: D: 6.8 mm / d2: 5.3 mm / B: 9.3 mm / L: 35 mm
