CID1060H-6.3-21 Connector, 6 way, Female, 6.3 mm, Unsealed, White

• Product Type: , Connector
• Min Order Qty: 1 piece
• Connector ID Part Number: CID1060H-6.3-21
• Drop-in Replacement for Part No.: 7123-2860 & 6070-6891
• Product Family:  250 Type (6.3 mm)
• Sealed/Unsealed: Unsealed
• Gender:  Female
• Material: PA66
• Color: Natural (White)

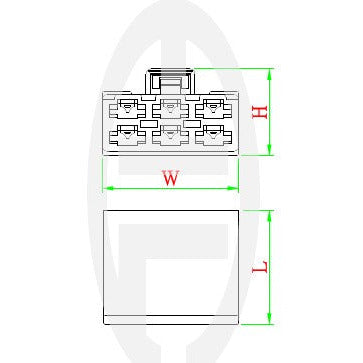

• Dimensions: L: 16.0 mm / W: 1.5 mm /  H: 1.9 mm / E: 6.5 mm
• Compliance: REACH & RoHS
• Connector Drawing: CID1060H-6.3-21

Associated Terminals:

• CID102H-6.3-FS1-L   0.5-0.85 mm² (20AWG), Brass Tin Plating (7116-2640-02)
• CID102H-6.3-FS2-L   0.85-1.25 mm² (18-16 AWG), Brass Tin Plating (7116-2641-02)
• CID102H-6.3-FS3-L   2.0 mm² (14 AWG), Brass Tin Plating (7116-2641-02)
• CID102H-6.3-FS4-L   3.0 mm², (12 AWG) Brass Tin Plating (7116-2642-02)
