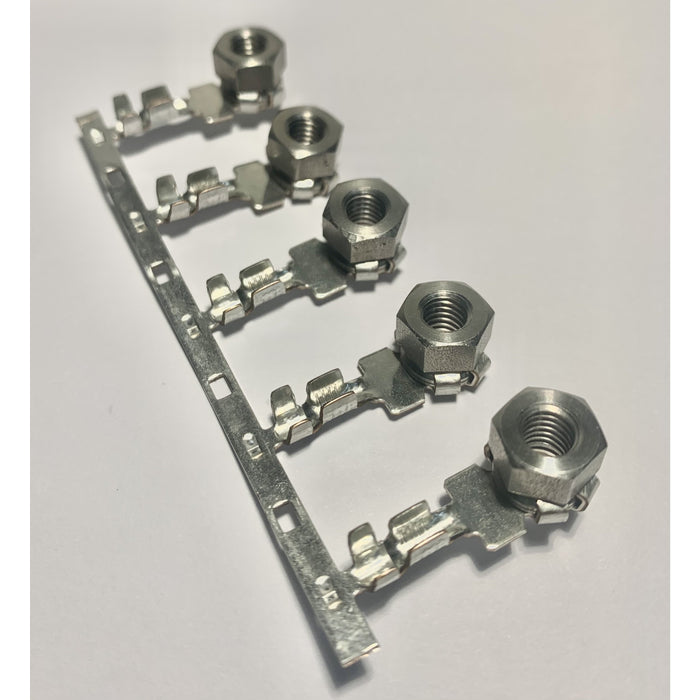

CID008-M6-CNR5 Captured Nut Ring Terminal M6
by Connector ID
-
Product Type: Terminal
-
Min Order Qty: 1 reel = 2,700 pcs
-
Connector ID Part Number: CID008-M6-CNR5
-
Product Family: Captive Nut Ring Terminal
- Stud Size: M6
-
Wire Size Range: 6.0 - 10.0 mm² (8 AWG)
-
Sealed/Unsealed: Unsealed
-
Material: Copper Alloy
-
Plating: Tin

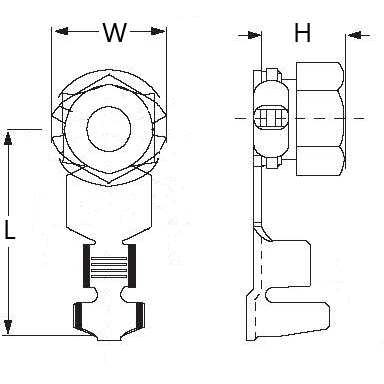

- Dimensions: L: 22.0 mm / W: 12.0 mm / H: 8.5 mm
- Alternate Packaging: CID008-M6-CNR5-L (Loose Piece)
