CID008-M6-CNR2-L Captured Nut Ring Terminal M6

$0.15
We have 0 in stock. Volume Pricing Available
    • Product Type: Terminal (Loose Piece)
    • Min Order Qty: 1 piece
    • Connector ID Part Number: CID008-M6-CNR2-L
    • Product Family:  Captive Nut Ring Terminal
    • Stud Size: M6
    • Wire Size Range:  1.5 - 2.50 mm²  (14 AWG)
    • Sealed/Unsealed: Unsealed
    • Material: Copper Alloy
    • Plating: Tin

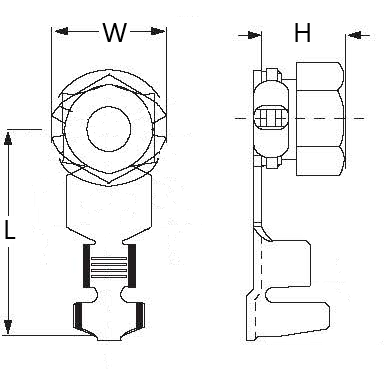

    • Dimensions: L: 21.7 mm / W: 12.0 mm / H: 8.5 mm
    • Alternate Packaging: CID008-M6-CNR2
