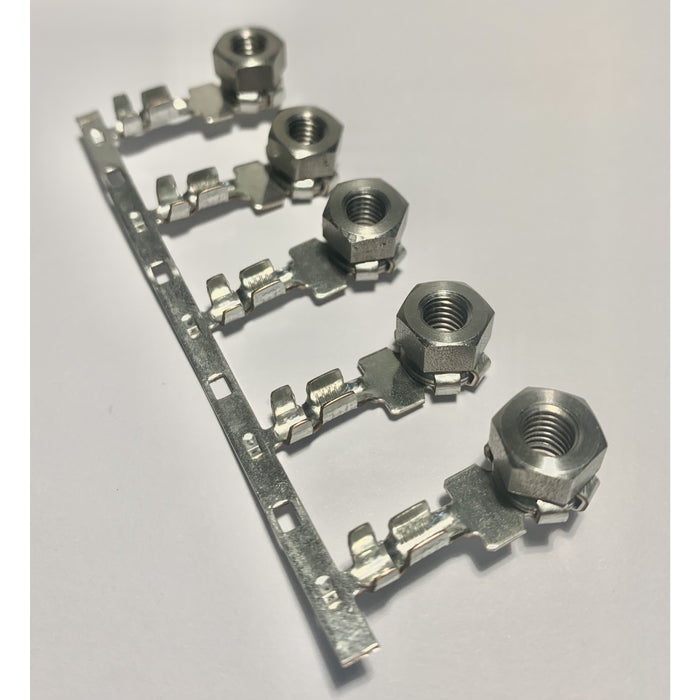

CID008-M6-CNR1 Captured Nut Ring Terminal M6
Click or scroll to zoom
Tap or pinch to zoom
CID008-M6-CNR1 Captured Nut Ring Terminal M6
CID008-M6-CNR1 Captured Nut Ring Terminal M6

CID008-M6-CNR1 Captured Nut Ring Terminal M6

by Connector ID
$0.15
We have 0 in stock. Lead time: Contact Us
Description
    • Product Type: Terminal
    • Min Order Qty: 1 reel = 3,900 pcs
    • Connector ID Part Number: CID008-M6-CNR1
    • Product Family:  Captive Nut Ring Terminal
    • Stud Size: M6
    • Wire Size Range:  0.75 - 1.50 mm²  (18-16 AWG)
    • Sealed/Unsealed: Unsealed
    • Material: Copper Alloy
    • Plating: Tin

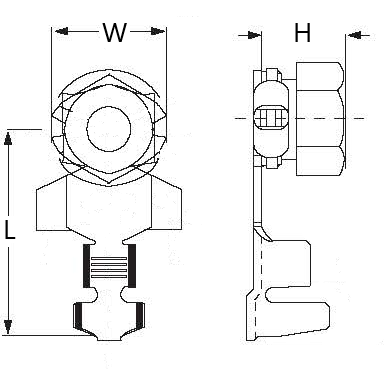

    • Dimensions: L: 21.7 mm / W: 12.0 mm / H: 8.5 mm
    • Alternate Packaging: CID008-M6-CNR1-L  (Loose Piece)
