990002
990002

990002

by Connector ID
$6.65
We have 0 in stock. Lead time: Contact Us

Pricing (USD) - Contact Us for Volume Pricing

  • 1-9 Pieces ($6.65 / Pc)
  • 10+ Pieces ($6.00 / Pc)
Description

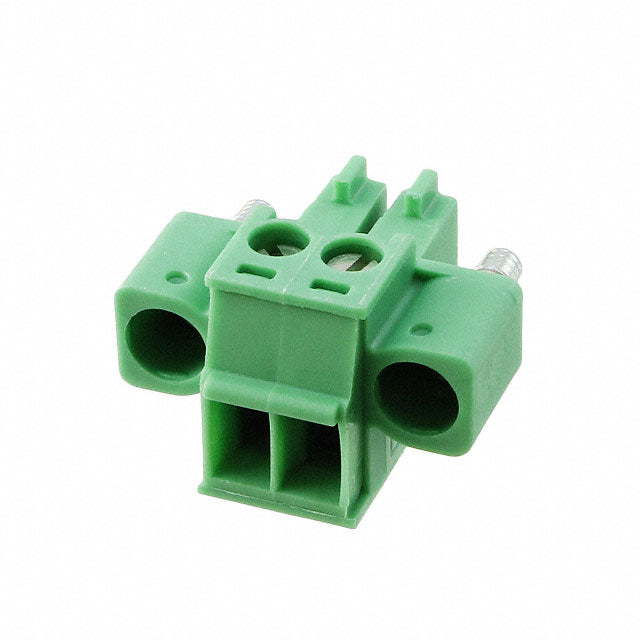

  • Product Type: Pluggable Terminal Blocks 2 Pos 3.5mm pitch Plug 28-16 AWG Screw
  • Min Order Qty: 1 unit
  • Connector ID Part Number: 990002
  • Type of contact: Female connector
  • Pitch: 3.5 mm
  • Rated Current: 8A
  • Number of Positions: 2
  • Connection Method: Screw connection with tension sleeve
  • Screw Thread: M2
  • Locking: Screw flange
  • Number of Levels:1
  • Number of Connections: 2
Dimensional Drawing
Length [ l ] 16.1 mm
Width [ w ] 17.3 mm
Height [ h ] 11.1 mm
Pitch 3.5 mm
Height (without solder pin) 11.1 mm
Dimension a 3.5 mm
