200057R Direct Equivalent to Sumitomo 8100-3617

200057R Direct Equivalent to Sumitomo 8100-3617

by Connector ID
$0.07
We have 0 in stock. Volume Pricing Available

Pricing (USD) - Contact Us for Volume Pricing

  • 6000-12000 Pieces ($0.07 / Pc)
  • 18000-24000 Pieces ($0.05 / Pc)
Description

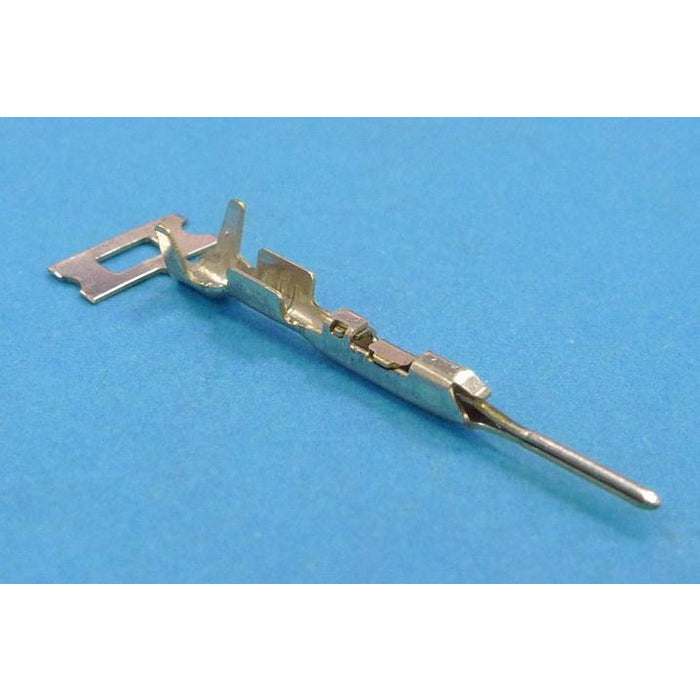

  • Product Type: Terminal
  • Min Order Qty: 1 reel = 6,000 units
  • Connector ID Part Number: 200057R
  • Brand: Sumitomo Equivalent
  • Drop-in Replacement for Sumitomo Part No.: 8100-3617
  • Product Family:  TS 025 (0.64mm)
  • Wire Size Range: 0.30 - 0.5 sqmm
  • Sealed/Unsealed: Sealed
  • Gender:  Male
  • Material: Brass
  • Plating: Tin

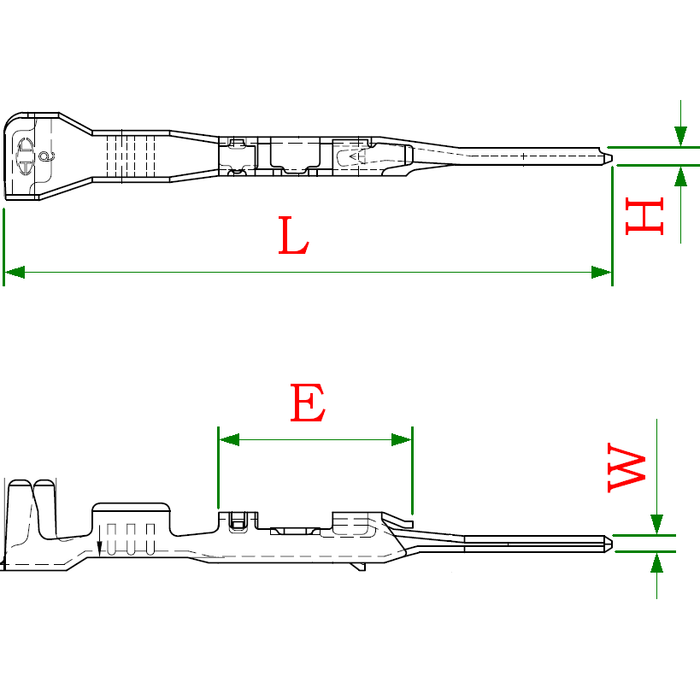

  • Dimensions: L: 23.5 mm / W: 0.64 mm /  H: 0.64 mm / E: 7.5 mm



Associated Wire Seals

200122     Single Wire Seal, 1.0 - 1.5 mm Wire Insul Dia., Silicone, Dk. Yellow

200123     Single Wire Seal, 1.2 - 1.7 mm Wire Insul Dia., Silicone, Brick Red

200125     Cavity Plug, Silicone, Gray

Mating Terminals

200050      Female, 0.3 - 0.5 sqmm, Sealed, Tin Plated, Loose Piece

200050R   Female, 0.3 - 0.5 sqmm, Sealed, Tin Plated, Reel

200051R   Female, 0.3 - 0.5 sqmm, Sealed, Gold Plated, Reel

200052     Female, 0.75 - 0.85 sqmm, Sealed, Tin Plated, Loose Piece

200052R  Female, 0.75 - 0.85 sqmm, Sealed, Tin Plated, Reel
