Description

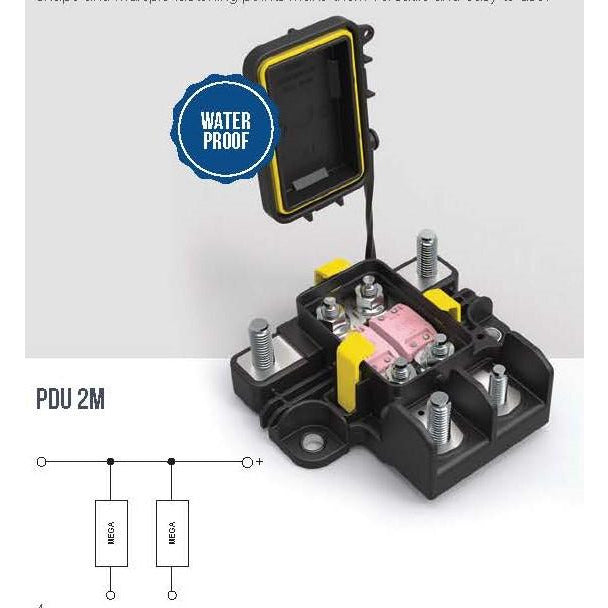

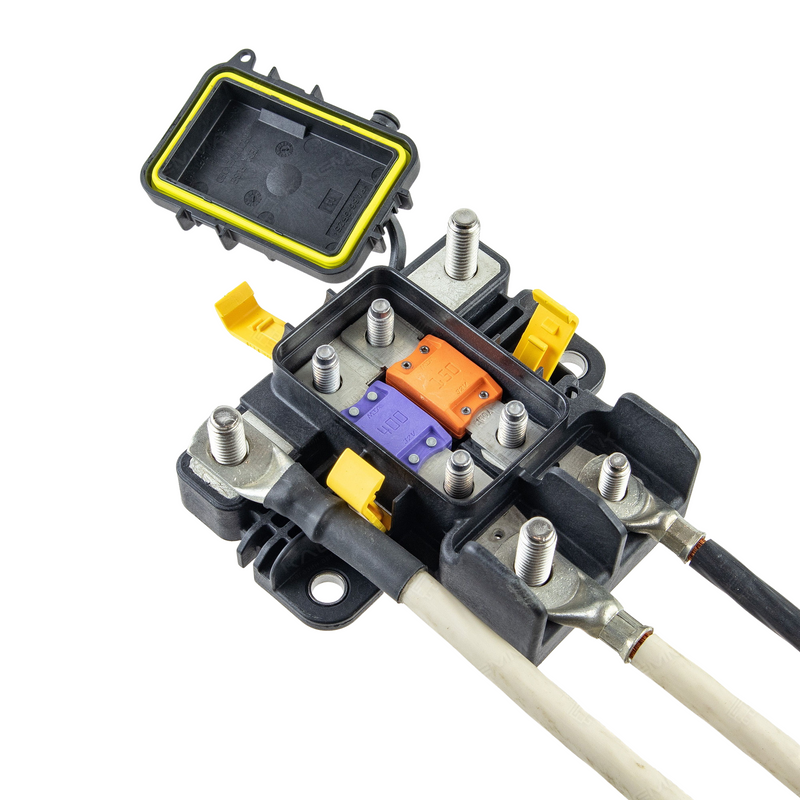

A waterproof fuse holder for a two MegaVAL or PowerVAL fuses. This version includes a cover with a gasket to seal the fuse compartment.
Specifications:Product Type: | Waterproof PDU MegaVAL Fuse Holder with cover |
Minimum Order Qty: | 1 piece |
Brand: | MTA |
Part Number | 0301887 |
Unfused Input Stud Size: | M10 |
Unfused Output Stud Size: | M10 |
Fused Output Stud Size A: | M10 |
Fused Output Stud Size B: | M8 |
Fuse Type: | MegaVal or PowerVal |
Sealed/Unsealed: | Unsealed |
Compliance: | RoHS, REACH |
Associated Components:
The following components used with this connection system and are sold separately
DESCRIPTION | MTA PN |
Cable Lug, M8 Ring, 16.0 mm² | 1605100 |
Cable Lug, M8 Ring, 25.0 mm² | 1605010 |
Cable Lug, M8 Ring, 35.0 mm² | 1605021 |
Cable Lug, M10 Ring, 25.0 mm² | 1605110 |
Cable Lug, M10 Ring, 35.0 mm² | 1605020 |
MegaVal Fuses
DESCRIPTION | MTA PN |
100A MegaVal, Yellow, Tin Plated Zinc | 0701100 |
125A MegaVal, Green, Tin Plated Zinc | 0701125 |
150A MegaVal, Orange, Tin Plated Zinc | 0701150 |
175A MegaVal, White, Tin Plated Zinc | 0701175 |
200A MegaVal, Blue, Tin Plated Zinc | 0701200 |
225A MegaVal, Light Brown, Tin Plated Zinc | 0701225 |
250A MegaVal, Pink, Tin Plated Zinc | 0701250 |
100A MegaVal, Yellow, Tin Plated Copper | 0711100 |
125A MegaVal, Green, Tin Plated Copper | 0711125 |
150A MegaVal, Orange, Tin Plated Copper | 0711150 |
175A MegaVal, White, Tin Plated Copper | 0711175 |
200A MegaVal, Blue, Tin Plated Copper | 0711200 |
225A MegaVal, Light Brown, Tin Plated Copper | 0711225 |
250A MegaVal, Pink, Tin Plated Copper | 0711250 |
300A MegaVal, Gray, Tin Plated Copper | 0711300 |
400A MegaVal, Violet, Tin Plated Copper | 0701401 |
500A MegaVal, Brown, Tin Plated Copper | 0701600 |
