0301695 MaxiCompact/Maxi/Micro Relay Module

by MTA
$8.40
We have 0 in stock. Lead time: Contact Us

MTA offers 14 different modules and a variety of frames, covers, and brackets to build a wide range of flexible modular solutions for holding fuses, relays, and diodes. All of the modules are designed with secondary locks to guarantee maximum safety and high performance. They are built to resist stress and provide reliable technology.

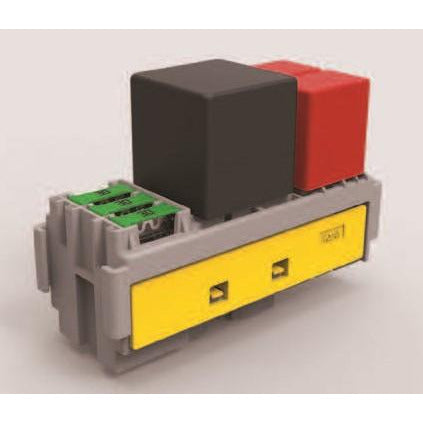

This module will hold three  (3)  Maxi Compact Fuses, one (1)  ISO Maxi Relay, and two (2) ISO Micro Relays.

 Product Family:  Modular Power Distribution
 Brand:  MTA
 Module Description:  [(3 x Maxi Compact Fuses) + (1 Maxi Relay) + (2 X Micro Relay)]
 Part Number;  0301695
 Minimum Order Qty:   132 pieces
 Alternate Packaging:  0101695 (Aftermarket Kit)
 Sold Separately:  Secondary Locks, terminals, frames, brackets and relays
 Part No.   Description
0301696  Secondary Lock
MTA PN  Micro-relay Coil Terminals
1108402  480 Female Terminal, 0.35  - 0.5  mm², CuZn Sn, Loose Piece
1708402  480 Female Terminal, 0.35  - 0.5  mm², CuZn Sn, Reel
1108400  480 Female Terminal, 0.5  - 1.0  mm², CuZn Sn, Loose Piece
1708400  480 Female Terminal, 0.5  - 1.0  mm², CuZn Sn, Reel
1107401  480 Female Terminal, 1.5  - 2.5  mm², CuZn Sn, Loose Piece
1708401  480 Female Terminal, 1.5  - 2.5  mm², CuZn Sn, Reel
MTA PN  Micro-Relay Contact,Maxi-Relay Coil, and MaxiCompact Fuse Terminals
1108500   630 Female Terminal, 0.35  - 0.5  mm², CuZn Sn, Loose Piece
1708500  630 Female Terminal, 0.35  - 0.5  mm², CuZn Sn, Reel
1108501  630 Female Terminal, 0.75  - 1.5  mm², CuZn Sn, Loose Piece
1708501  630 Female Terminal, 0.75  - 1.5  mm², CuZn Sn, Reel
1108502  630 Female Terminal, 2.0 - 3.0  mm², Cu Alloy Sn, Loose Piece
1708502  630 Female Terminal, 2.0 - 3.0  mm², Cu Alloy Sn, Reel
1108503  630 Female Terminal, 4.0 - 6.0  mm², Cu Alloy Sn, Loose Piece
1708503  630 Female Terminal, 4.0 - 6.0  mm², Cu Alloy Sn, Reel
MTA PN  Maxi-Relay Contact Terminals
1107740  950 Female Terminal, 2.5 - 4.0 sqmm, Cu Sn, Loose Piece
1707740  950 Female Terminal, 2.5 - 4.0 sqmm, Cu Sn, Reel
1107741  950 Female Terminal, 6.0 - 8.0 sqmm, Cu Sn, Loose Piece
1707741  950 Female Terminal, 6.0 - 8.0 sqmm, Cu Sn, Reel
1107742-L  950 Female Terminal, 10.0 - 16.0 sqmm, Cu Sn, Loose Piece
1707742  950 Female Terminal, 10.0 - 16.0 sqmm, Cu Sn, Reel
 MTA PN  Description
0702920  20 Amp, MaxiCOMPACT Fuse. Yellow
0702925  25 Amp, MaxiCOMPACT Fuse, White
0702930  30 Amp, MaxiCOMPACT Fuse, Light Green
0702935  35 Amp, MaxiCOMPACT Fuse, Dark Green
0702940  40 Amp, MaxiCOMPACT Fuse, Orange
0702950  50 Amp, MaxiCOMPACT Fuse, Red
0702960  60 Amp, MaxiCOMPACT Fuse, Blue
Part Number   Description
NF106-001E12R  ISO Mini-Relay, 12VDC, 50A, Form C, with Resistor Suppression
NF106-100E12R  ISO Mini-Relay, 12VDC, 50A, Form A with Resistor Suppression
NF117-001E12R  ISO Micro-Relay, 12VDC, 35A, Form C, with Resistor Suppression,
NF117-100E12R  ISO Maxi-Relay, 12VDC, 35A, Form A with Resistor Suppression
Part No.   Description
0301580  Mounting bracket for a single module
0300699  Mounting bracket for two modules
0301590  Cover for a single module
0301550  Cover for two adjacent modules
0301180  Bracket, extended height for two adjacent modules
0301620  Bracket for joining two modules end-to-end
0301630  Relay Retainer





Part No.  Description
0301450  5 Way Frame
0301540  Cover for 5 way frame
0301520  4 Module Frame, Flush Mount, Gray
0301530  Cover for 4 Module Frame
0301682  12 Module Frame, Upright Mount, Gray
0301680  12 Module Frame, Flush Mount, Gray
0301681  12 Module Frame, Flush Mount, Gray



Part No.  Description
 CID3305-HCT  Hand Crimp Tool for unsealed MTA Terminals
