0301660 Maxi Relay Module

by MTA
$3.40
We have 0 in stock. Lead time: Contact Us

MTA offers 14 different modules and a variety of frames, covers, and brackets to build a wide range of flexible modular solutions for holding fuses, relays, and diodes. All of the modules are designed with secondary locks to guarantee maximum safety and high performance. They are built to resist stress and provide reliable technology.

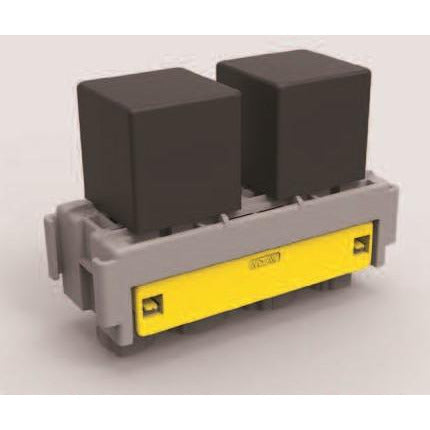

This module will hold two (2) ISO Maxi (Power) relays.

 Product Family:   Modular Power Distribution
 Module Description:  2 Maxi Relays
 MTA PN:   0301660
 Minimum Order Qty:   132 pieces
 Alternate Packaging:  0101660 (Aftermarket Kit)
Sold Separately:  Terminals, relays, brackets, frames, and covers
 Part No.   Description
0301661  Secondary Lock
MTA PN  Description
1108500   630 Female Terminal, 0.35  - 0.5  sqmm, CuZn Sn, Loose Piece
1708500  630 Female Terminal, 0.35  - 0.5  sqmm, CuZn Sn, Reel
1108501  630 Female Terminal, 0.75  - 1.5  sqmm, CuZn Sn, Loose Piece
1708501  630 Female Terminal, 0.75  - 1.5  sqmm, CuZn Sn, Reel
1108502  630 Female Terminal, 2.0 - 3.0  sqmm, Cu Alloy Sn, Loose Piece
1708502  630 Female Terminal, 2.0 - 3.0  sqmm, Cu Alloy Sn, Reel
1108503  630 Female Terminal, 4.0 - 6.0  sqmm, Cu Alloy Sn, Loose Piece
1708503  630 Female Terminal, 4.0 - 6.0  sqmm, Cu Alloy Sn, Reel
1107740  950 Female Terminal, 2.5 - 4.0 sqmm, Cu Sn, Loose Piece
1707740  950 Female Terminal, 2.5 - 4.0 sqmm, Cu Sn, Reel
1107741  950 Female Terminal, 6.0 - 8.0 sqmm, Cu Sn, Loose Piece
1707741  950 Female Terminal, 6.0 - 8.0 sqmm, Cu Sn, Reel
1107742-L  950 Female Terminal, 10.0 - 16.0 sqmm, Cu Sn, Loose Piece
1707742  950 Female Terminal, 10.0 - 16.0 sqmm, Cu Sn, Reel


Part No.   Description
0301580  Mounting bracket for a single module
0300699  Mounting bracket for two modules
0301590  Cover for a single module
0301550  Cover for two adjacent modules
0301180  Bracket, extended height for two adjacent modules
0301620  Bracket for joining two modules end-to-end
0301630  Relay Retainer





Part No.  Description
0301450  5 Way Frame
0301540  Cover for 5 way frame
0301520  4 Module Frame, Flush Mount, Gray
0301530  Cover for 4 Module Frame
0301682  12 Module Frame, Upright Mount, Gray
0301680  12 Module Frame, Flush Mount, Gray
0301681  12 Module Frame, Flush Mount, Gray
    Part Number   Description
    NF105-001E12R  ISO Maxi-Relay, 12VDC, 70A, Form C, with Resistor Suppression
    NF105-100E12R  ISO Maxi-Relay, 12VDC, 70A, Form A with Resistor Suppression
    Part No.  Description
     CID3305-HCT  Hand Crimp Tool for unsealed MTA Terminals
