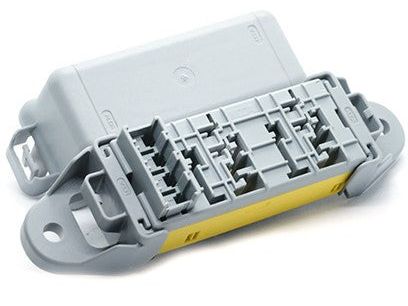

0301504 MiniVAL/Micro Relay Module
Click or scroll to zoom
Tap or pinch to zoom
0301504 MiniVAL/Micro Relay Module
0301504 MiniVAL/Micro Relay Module

0301504 MiniVAL/Micro Relay Module

by MTA
$3.25
We have 0 in stock. Lead time: Contact Us
Description

MTA offers 14 different modules and a variety of frames, covers, and brackets to build a wide range of flexible modular solutions for holding fuses, relays, and diodes. All of the modules are designed with secondary locks to guarantee maximum safety and high performance. They are built to resist stress and provide reliable technology.

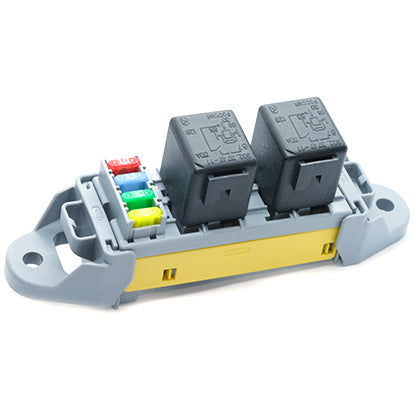

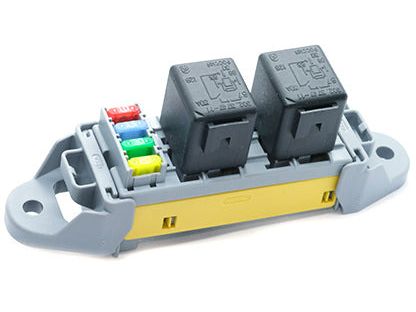

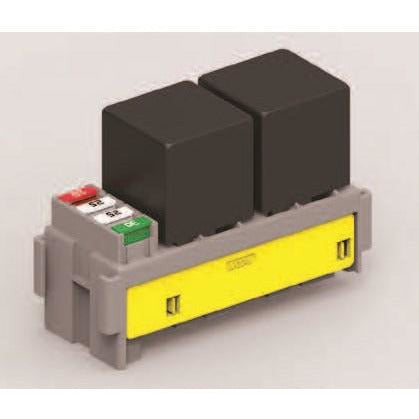

This module will hold four  (4) MiniVAL fuses and two (2) ISO Mini Relays.

 Product Family:  Modular Power Distribution
 Brand:  MTA
 Module Description:  4 MiniVAL Fuses + 2 ISO Mini Relays
 Part Number;  0301504
 Min Order Qty:  132 pieces
 KIT BOM:  ([1 x 0301504) + (1 x 0301506)]
 Alternate Packaging:  0101504 (Aftermarket Kit)
 Sold Separately:  Secondary Locks, terminals, frames, brackets, and relays
Locks
 Part No.   Description
0301506  Secondary Lock
 Terminals
MTA PN:  Fuse Terminals
1108330  Mini 280 Female Terminal, 0.35 - 0.75 mm², CuFe Sn, Loose Piece
1708330  Mini 280 Female Terminal, 0.35 - 0.75 mm², CuFe Sn, Reel
1108331  Mini 280 Female Terminal, 1.0 - 2.0 mm², CuFe Sn, Loose Piece
1708331  Mini 280 Female Terminal, 1.0 -2.0 mm², CuFe Sn, Reel
1108332  Mini 280 Female Terminal, 2.0 - 4.0 mm², CuFe Sn, Loose Piece
1708332  Mini 280 Female Terminal, 2.0 - 4.0 mm², CuFe Sn, Reel
1708335-B  Mini 280 Female Bus Bar Terminal, 1.0 - 2.0 mm², CuFe Sn, Loose Piece
1708335  Mini 280 Female Bus Bar Terminal, 1.0 - 2.0 mm², CuFe Sn, Reel
1708336-B  Mini 280 Female Bus Bar Terminal, 2.5 - 4.0 mm², CuFe Sn,  Loose Piece
1708336  Mini 280 Female Bus Bar Terminal, 2.5 - 4.0 mm², CuFe Sn, Reel
MTA PN  Relay Terminals Description
1108500   630 Female Terminal, 0.35  - 0.5  mm², CuZn Sn, Loose Piece
1708500  630 Female Terminal, 0.35  - 0.5  mm², CuZn Sn, Reel
1108501  630 Female Terminal, 0.75  - 1.5  mm², CuZn Sn, Loose Piece
1708501  630 Female Terminal, 0.75  - 1.5  mm², CuZn Sn, Reel
1108502  630 Female Terminal, 2.0 - 3.0  mm², Cu Alloy Sn, Loose Piece
1708502  630 Female Terminal, 2.0 - 3.0  mm², Cu Alloy Sn, Reel
1108503  630 Female Terminal, 4.0 - 6.0  mm², Cu Alloy Sn, Loose Piece
1708503  630 Female Terminal, 4.0 - 6.0  mm², Cu Alloy Sn, Reel
Fuses
Part No.  Description
0705090  2 Amp MiniVal fuse
0705100  3 Amp MiniVal Fuse
0705101  4 Amp MiniVal Fuse
0705110  5 Amp MiniVal Fuse
0705120  7.5 Amp MiniVal Fuse
0705130  10 Amp MiniVal Fuse
0705140  15 Amp Minival Fuse
0705150  20 Amp MiniVal Fuse
0705160  25 Amp MiniVl Fuse
0705170  30 Amp MiniVal Fuse



Brackets/Covers
Part No.   Description
0301580  Mounting bracket for a single module
0300699  Mounting bracket for two modules
0301590  Cover for a single module
0301550  Cover for two adjacent modules
0301180  Bracket, extended height for two adjacent modules
0301620  Bracket for joining two modules end-to-end
0301630  Relay Retainer





Frames/Covers
Part No.  Description
0301450  5 Way Frame
0301540  Cover for 5 way frame
0301520  4 Module Frame, Flush Mount, Gray
0301530  Cover for 4 Module Frame
0301682  12 Module Frame, Upright Mount, Gray
0301680  12 Module Frame, Flush Mount, Gray
0301681  12 Module Frame, Flush Mount, Gray



Tools
Part No.  Description
 CID3305-HCT  Hand Crimp Tool for unsealed MTA Terminals
